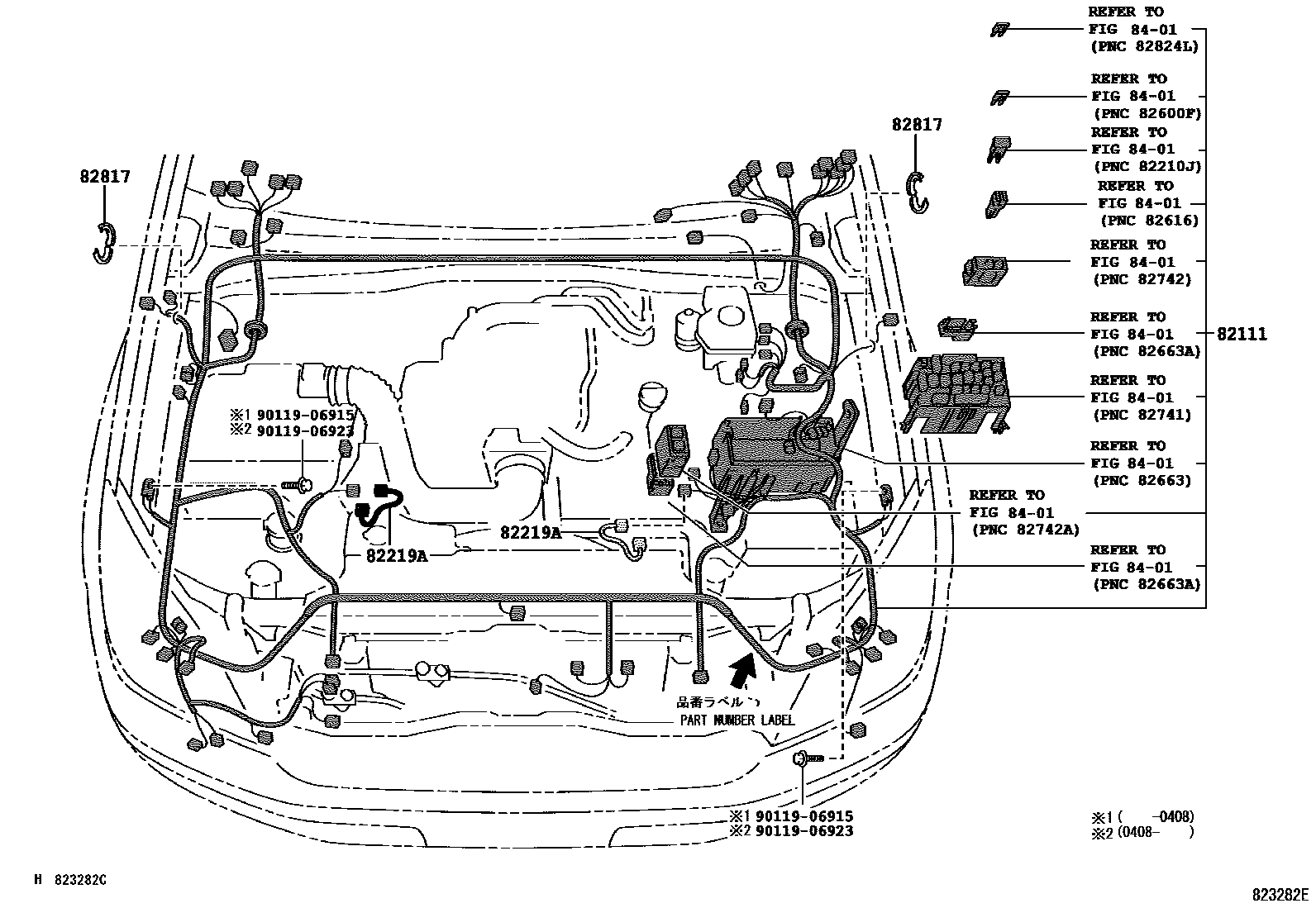

82111WIRE, ENGINE ROOM MAIN

main82111-6A430iUZJ120200211-200311

main82111-6A431iUZJ120200311-200411

main82111-6A432iUZJ120200411-200508

main82111-6A433iUZJ120200508

82219AWIRE, SENSOR

main82219-60060iUZJ120200211

RH

main82219-60070iUZJ120200211

LH

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-32840×2iUZJ120200211

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9011906923

main90119-06923

6 parts on this diagram · 11 diagrams in section
