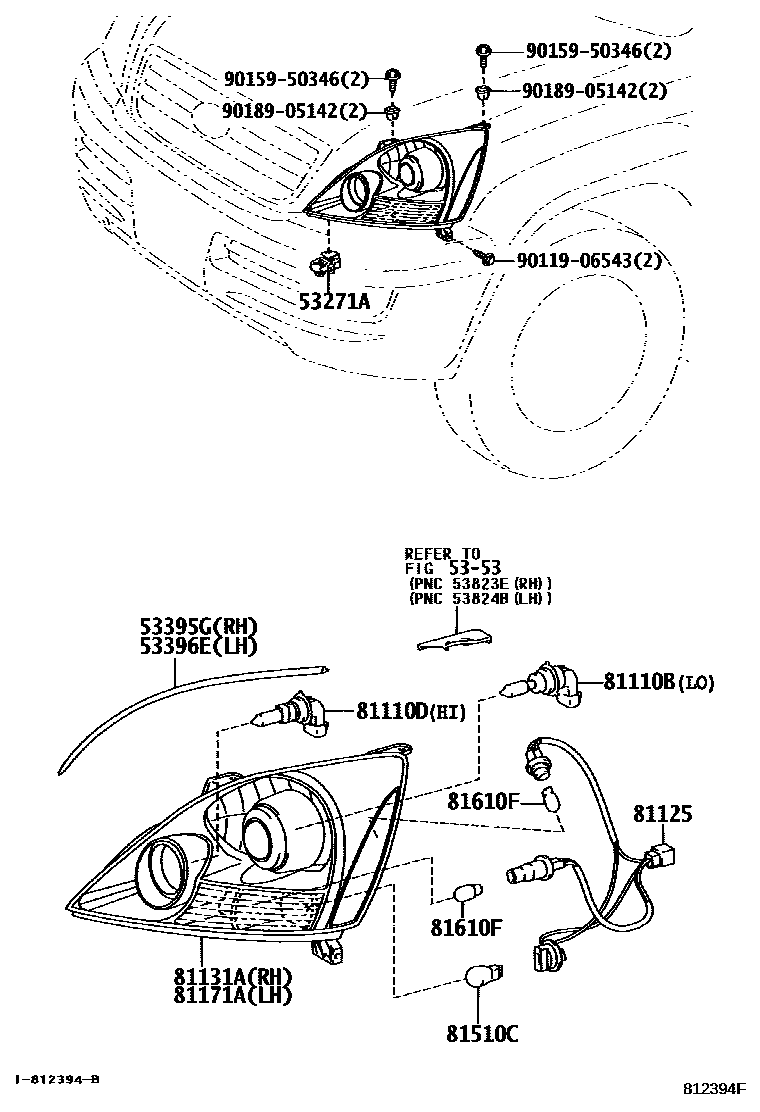

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iUZJ120200211

53395GSEAL, HOOD TO FRONT END PANEL

main53395-60020iUZJ120200211-200908

53396ESEAL, HOOD TO FRONT END PANEL, NO.2

main53396-60020iUZJ120200211-200908

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13075×2iUZJ120200211

12V 55W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13046×2iUZJ120200211

12V65W(SAE),60W(ECE)

81125CORD, HEADLAMP

main81125-6A240×2iUZJ120200211

81131AUNIT, HEADLAMP, RH

main81130-6A240iUZJ120200211

main81130-60A60iUZJ120200411

SPORT PACKAGE

81171AUNIT, HEADLAMP, LH

main81170-6A070iUZJ120200211

main81170-60A50iUZJ120200411

SPORT PACKAGE

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15022×2iUZJ120200211

12V 27W

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×4iUZJ120200211

12V 5W

9011906543

main90119-06543

9015950346

main90159-50346

9018905142

main90189-05142

14 parts on this diagram · 2 diagrams in section
