Toyota LEXUS GX470 — ASH RECEPTACLE

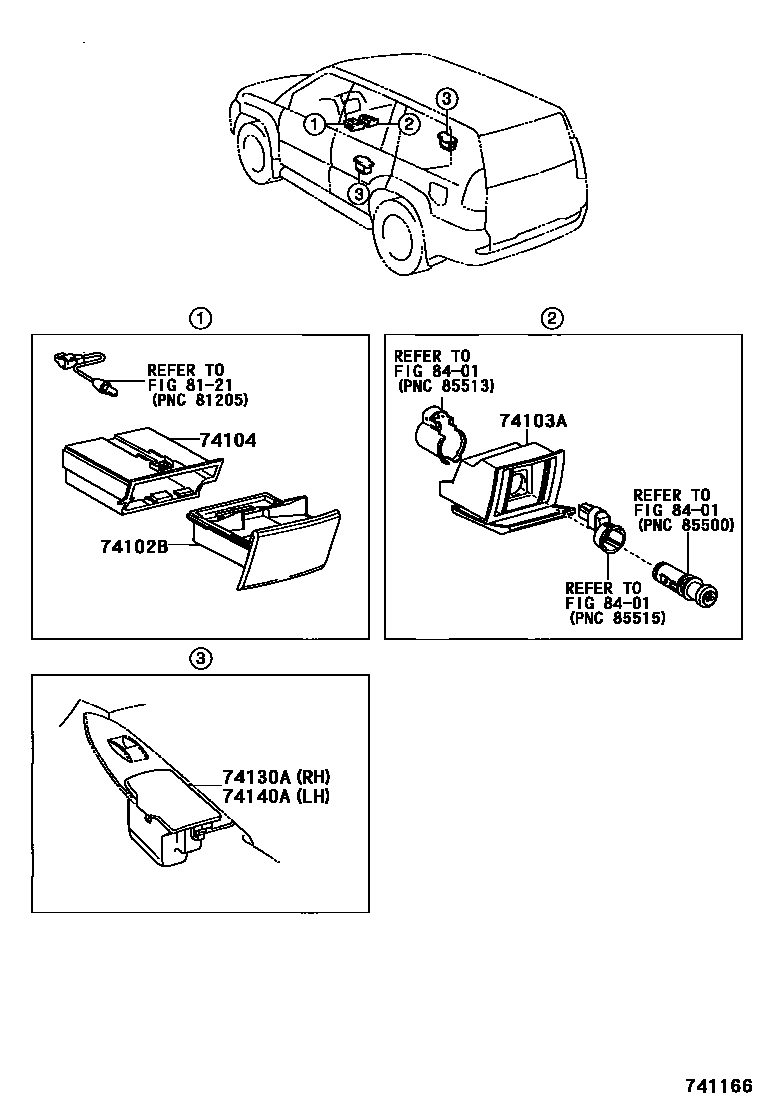

Parts diagram
74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE
74103ADOOR SUB-ASSY, FRONT ASH RECEPTACLE
74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-60100
74130ARECEPTACLE ASSY, REAR ASH, RH
74140ARECEPTACLE ASSY, REAR ASH, LH
8121INTERIOR LAMP
→ Go to FIG 81-21
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01

7 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota LEXUS GX470

This section contains 7 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota LEXUS GX470. Key components include: BOX SUB-ASSY, FRONT ASH RECEPTACLE, DOOR SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1, RECEPTACLE ASSY, REAR ASH, RH, RECEPTACLE ASSY, REAR ASH, LH.
