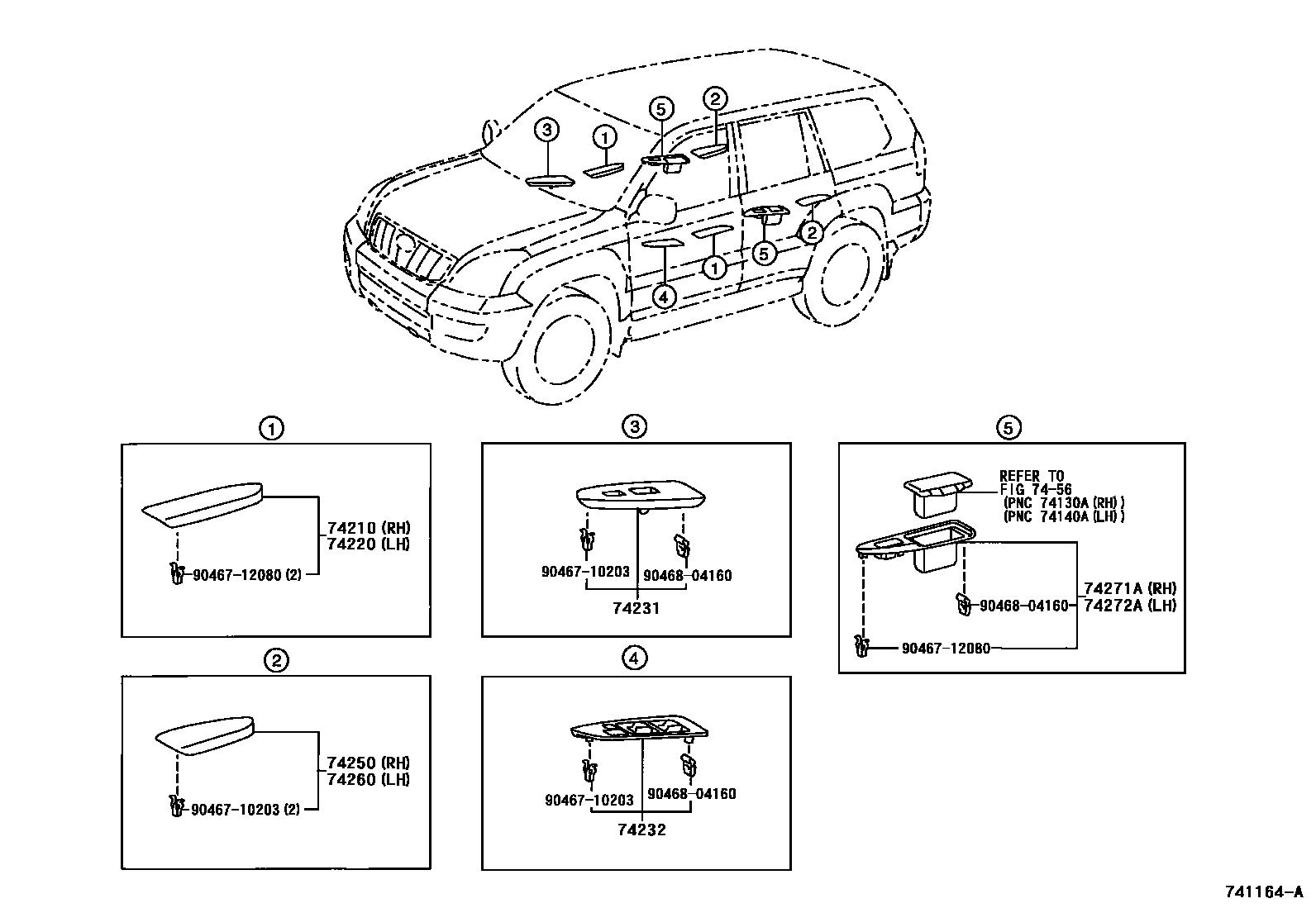

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-60200-A0iUZJ120200211-200707

IVORY,TRIM0#

main74210-60200-B0iUZJ120200211-200707

MEDIUM GRAY,TRIM1#

main74210-60201-A2iUZJ120200707-200908

IVORY,TRIM0#

main74210-60201-B2iUZJ120200707-200908

MD.GREY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-60200-A0iUZJ120200211-200707

IVORY,TRIM0#

main74220-60200-B0iUZJ120200211-200707

MEDIUM GRAY,TRIM1#

main74220-60201-A2iUZJ120200707-200908

IVORY,TRIM0#

main74220-60201-B2iUZJ120200707-200908

MD.GREY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60470-A0iUZJ120200211-200908

IVORY,TRIM0#

main74231-60470-B0iUZJ120200211-200908

MD.GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60400-A0iUZJ120200211-200908

IVORY,TRIM0#

main74232-60400-B0iUZJ120200211-200908

MD.GRAY,TRIM1#

74250ARMREST ASSY, REAR RH

main74250-60140-A0iUZJ120200211-200707

IVORY,TRIM0#

main74250-60140-B0iUZJ120200211-200707

MEDIUM GRAY,TRIM1#

main74250-60141-A2iUZJ120200707-200908

IVORY,TRIM0#

main74250-60141-B2iUZJ120200707-200908

MD.GREY,TRIM1#

74260ARMREST ASSY, REAR LH

main74260-60140-A0iUZJ120200211-200707

IVORY,TRIM0#

main74260-60140-B0iUZJ120200211-200707

MEDIUM GRAY,TRIM1#

main74260-60141-A2iUZJ120200707-200908

IVORY,TRIM0#

main74260-60141-B2iUZJ120200707-200908

MD.GREY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60160-A0iUZJ120200211-200908

IVORY,TRIM0#

main74271-60160-B0iUZJ120200211-200908

MD.GRAY,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60160-A0iUZJ120200211-200908

IVORY,TRIM0#

main74272-60160-B0iUZJ120200211-200908

MD.GRAY,TRIM1#

7456ASH RECEPTACLE

→ Go to FIG 74-56

9046710203

main90467-10203

9046712080

main90467-12080

9046804160

main90468-04160

12 parts on this diagram · 2 diagrams in section
