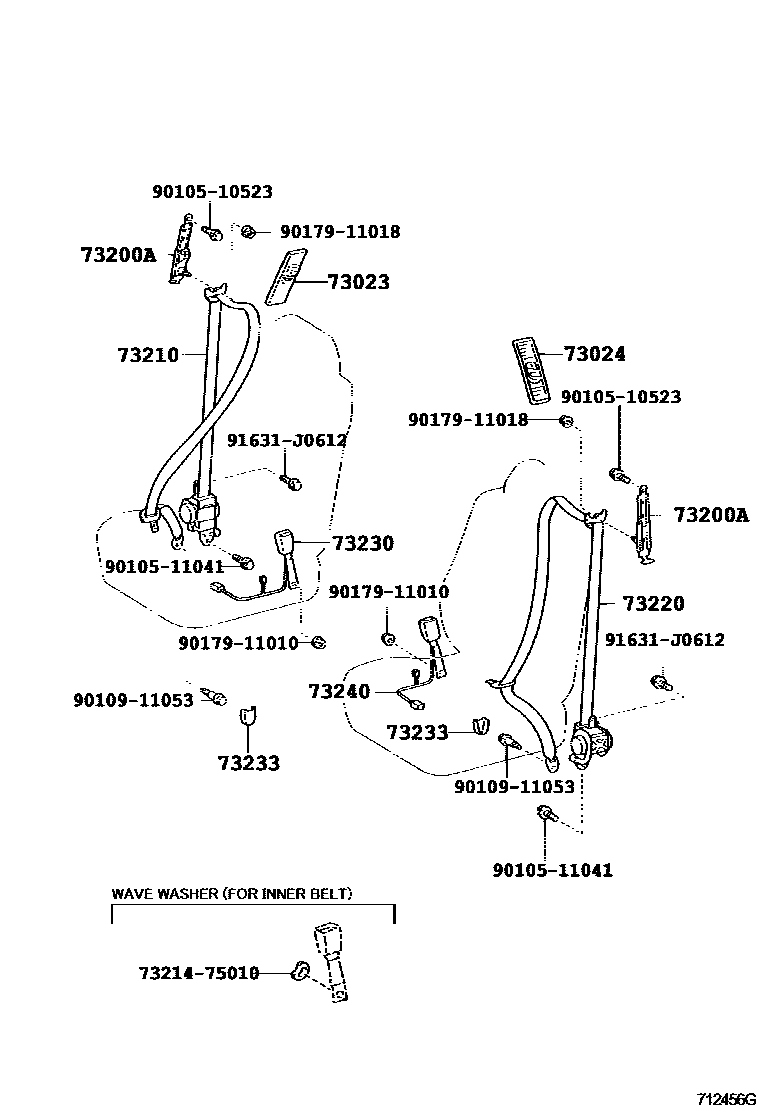

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM0#
BLUISH GRAY,TRIM1#
IVORY,TRIM0#
BLUISH GRAY,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM0#
BLUISH GRAY,TRIM1#
IVORY,TRIM0#
BLUISH GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
AUDIO(FOR OVERSEAS MARKET)-05'EMV-ML 12SP W(MINI JACK),IVORY,TRIM0#; AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD CHANGER 12SP W(MINI JACK),IVORY,TRIM0#
AUDIO(FOR OVERSEAS MARKET)-03'EMV-ML 12SP,MD.GRAY,TRIM1#; AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 12SP,MD.GRAY,TRIM1#
73233COVER, LAP BELT OUTER ANCHOR
IVORY,TRIM0#
MD.GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
AUDIO(FOR OVERSEAS MARKET)-05'EMV-ML 12SP W(MINI JACK),IVORY,TRIM0#; AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD CHANGER 12SP W(MINI JACK),IVORY,TRIM0#
AUDIO(FOR OVERSEAS MARKET)-05'EMV-ML 12SP W(MINI JACK),MD.GRAY,TRIM1#; AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD CHANGER 12SP W(MINI JACK),MD.GRAY,TRIM1#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511041
main90105-11041
9010911053
main90109-11053
9017911010
main90179-11010
9017911018
main90179-11018
91631J0612
main91631-J0612
15 parts on this diagram · 3 diagrams in section
