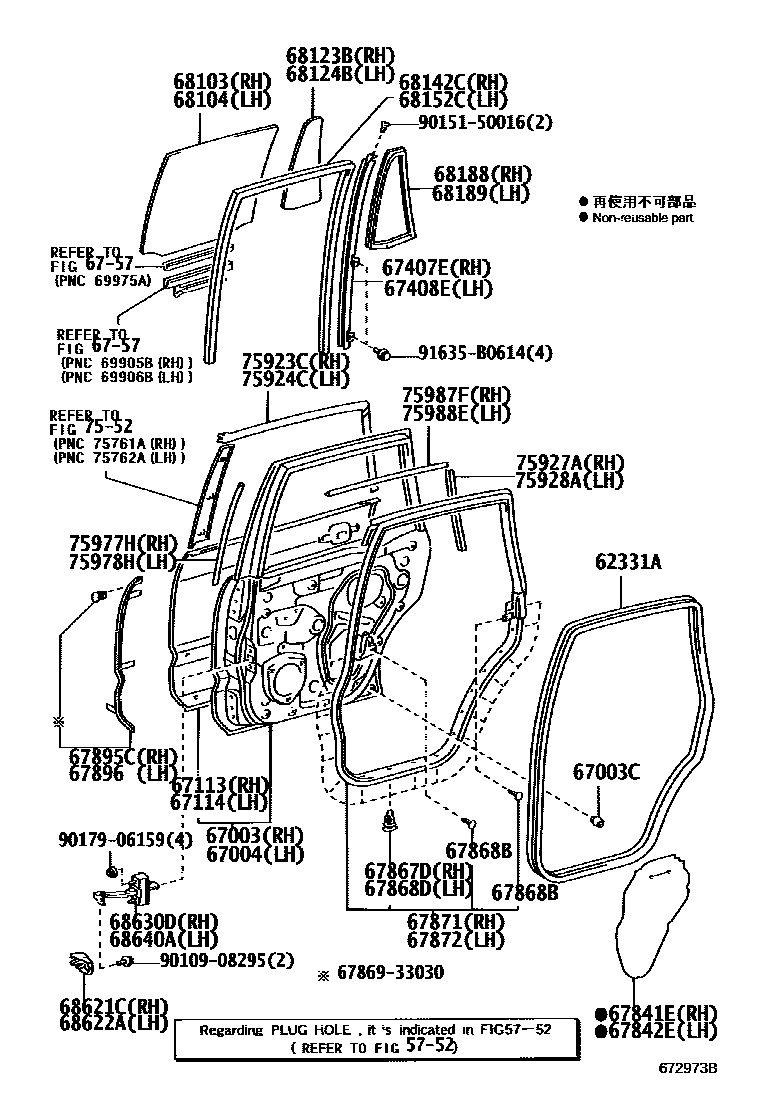

REAR DOOR PANEL & GLASS

0001 1 0002 1

5752HOLE PLUG

→ Go to FIG 57-52

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-60050-A0iUZJ120200211-200908

IVORY,TRIM0#,RH

main62331-60050-B0iUZJ120200211-200908

MD.GRAY,TRIM1#,RH

main62332-60050-A0iUZJ120200211-200908

IVORY,TRIM0#,LH

main62332-60050-B0iUZJ120200211-200908

MD.GRAY,TRIM1#,LH

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60370iUZJ120200211-200908

CANADA GX

67003CCUSHION, REAR DOOR PANEL

main90541-09117×2iUZJ120200211-200406

main90541-09131×2iUZJ120200407

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60370iUZJ120200211-200908

CANADA GX

67113PANEL, REAR DOOR, OUTER RH

main67113-60200iUZJ120200211-200908

67114PANEL, REAR DOOR, OUTER LH

main67114-60200iUZJ120200211-200908

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-60050iUZJ120200211

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-60050iUZJ120200211

6757REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-57

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-60100iUZJ120200211

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60050iUZJ120200211

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×18iUZJ120200211

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67869-20030×4iUZJ120200211

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×18iUZJ120200211

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60100iUZJ120200211

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60100iUZJ120200211

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-60010iUZJ120200211

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-60010iUZJ120200211

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-60240iUZJ120200211

*TT,T=3.5,DARK GRAY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-60240iUZJ120200211

*TT,T=3.5,DARK GRAY

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-60250iUZJ120200211

*TT,T=3.5,DARK GRAY

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-60250iUZJ120200211

*TT,T=3.5,DARK GRAY

68142CRUN, REAR DOOR GLASS, RH

main68142-60050iUZJ120200211

68152CRUN, REAR DOOR GLASS, LH

main68152-60040iUZJ120200211

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60050iUZJ120200211

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60050iUZJ120200211

68621CCOVER, REAR DOOR CHECK, RH

main68621-33010iUZJ120200211

68622ACOVER, REAR DOOR CHECK, LH

main68622-33010iUZJ120200211

68630DCHECK ASSY, REAR DOOR, RH

main68630-60080iUZJ120200211

68640ACHECK ASSY, REAR DOOR, LH

main68640-60070iUZJ120200211

7552MOULDING

→ Go to FIG 75-52

75923CTAPE, BLACK OUT, NO.2 RH

main75923-60010iUZJ120200211

75924CTAPE, BLACK OUT, NO.2 LH

main75924-60010iUZJ120200211

75927ATAPE, BLACK OUT, NO.4 RH

main75927-60030iUZJ120200211

75928ATAPE, BLACK OUT, LH

main75928-60030iUZJ120200211

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-60170iUZJ120200211

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-60170iUZJ120200211

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-60400iUZJ120200211

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-60510iUZJ120200211

6786933030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-33030

9010908295

main90109-08295

9015150016

main90151-50016

9017906159

main90179-06159

91635B0614

main91635-B0614

45 parts on this diagram · 2 diagrams in section
