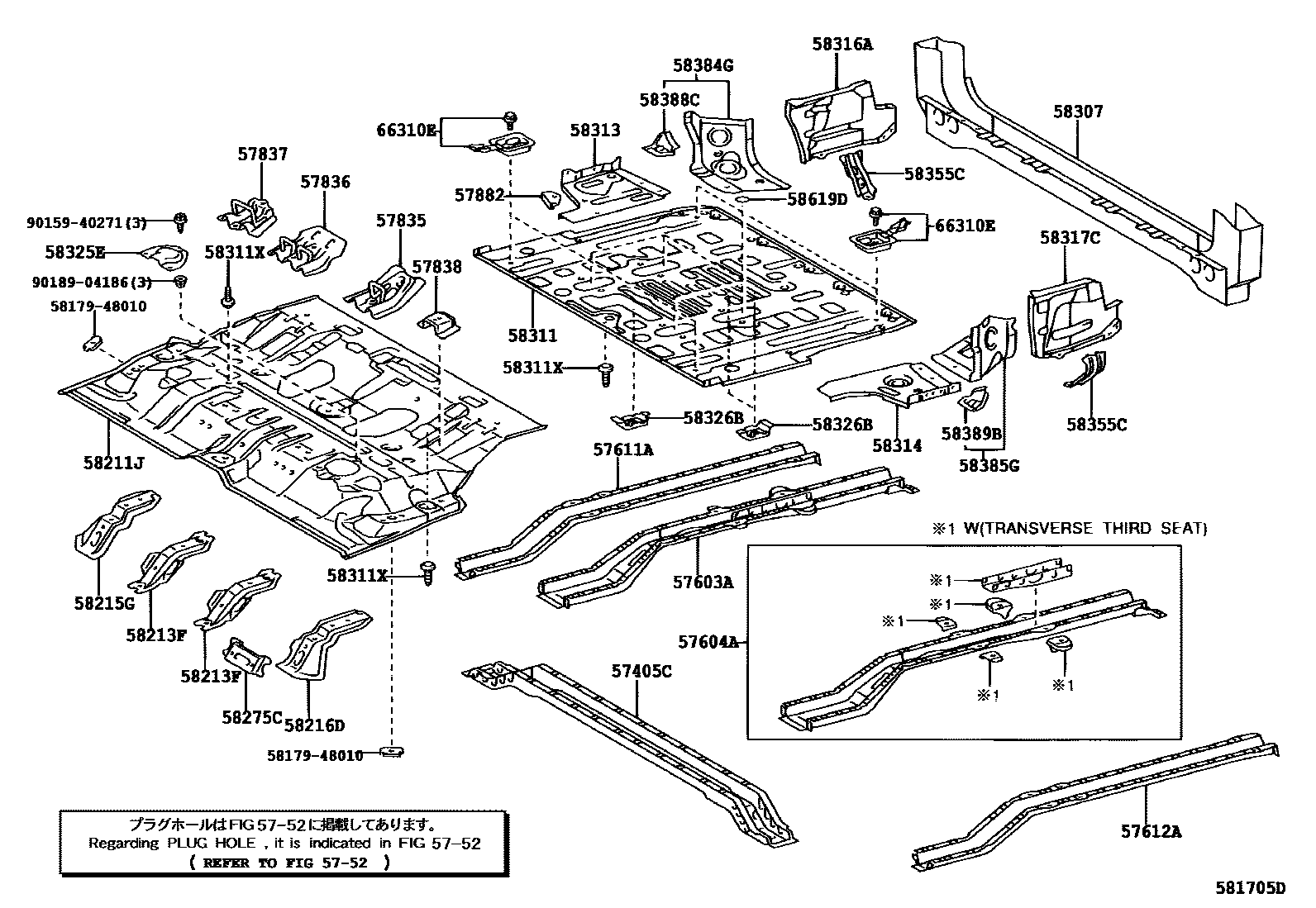

REAR FLOOR PANEL & REAR FLOOR MEMBER
5752
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57611AMEMBER, REAR FLOOR SIDE, RH
57612AMEMBER, REAR FLOOR SIDE, LH
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
57882REINFORCEMENT, BELT ANCHOR, NO.4
main57882-60020
58211JPAN, CENTER FLOOR
58213FREINFORCEMENT, CENTER FLOOR PANEL
58215GBRACKET, REAR SEAT MOUNTING, NO.1
58216DBRACKET, REAR SEAT MOUNTING, LH
58275CBRACKET, WIRE HARNESS PROTECTOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58311XBOLT, REAR FLOOR WELD
REAR SEAT-REMOVABLE
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58326BBRACKET, FLEXIBLE HOSE MOUNTING
58355CBRACKET, REAR BUMPER ARM
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH
58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH
58619DSHEET, CENTER FLOOR SILENCER SUB
66310EHOOK ASSY, ROPE
5817948010STAY, FRONT CROSSMEMBER TO LOWER SHROUD, LH
main58179-48010
9015940271
main90159-40271
9018904186
main90189-04186
35 parts on this diagram · 1 diagram in section
