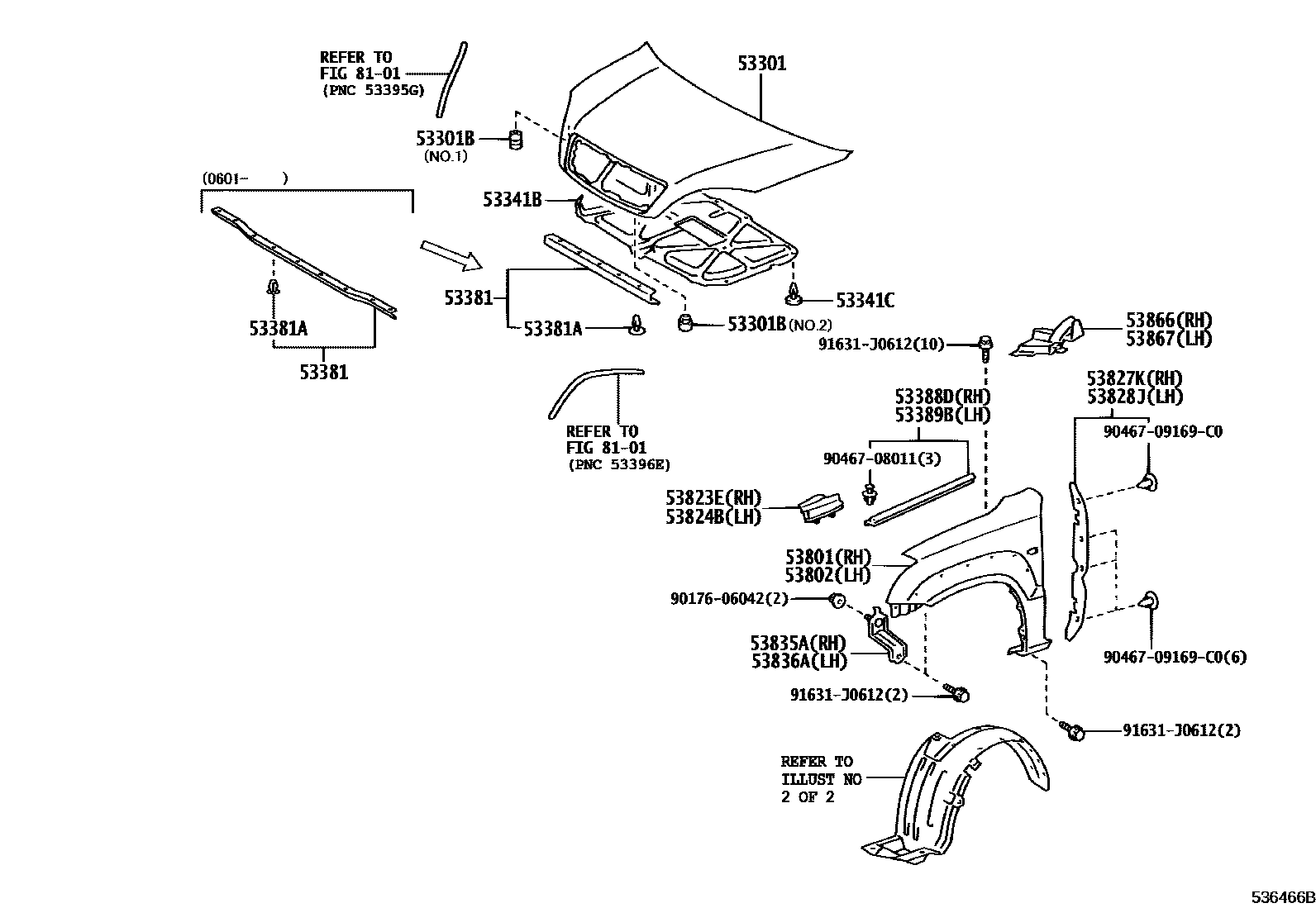

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-60500supersedes 53301-60501iUZJ120200211-200601

CANADA GX

main53301-60501iUZJ120200601-200908

CANADA GX

53301BCUSHION, HOOD BUMPER

main53384-60050×2iUZJ120200211

NO.1

main90541-15004×2iUZJ120200508

NO.2

main90541-15024×2iUZJ120200211-200507

NO.2

53341BINSULATOR, HOOD

main53341-60270iUZJ120200211

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×11iUZJ120200211

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60050iUZJ120200211-200601

main53381-60070iUZJ120200601

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×5iUZJ120200211

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-60010iUZJ120200211-200408

main53388-60011iUZJ120200408-200409

main53388-60012iUZJ120200410

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-60010iUZJ120200211-200408

main53389-60011iUZJ120200408

53801FENDER SUB-ASSY, FRONT RH

main53801-60840iUZJ120200211-200908

CANADA GX

53802FENDER SUB-ASSY, FRONT LH

main53802-6A130iUZJ120200211-200908

CANADA GX

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-60010iUZJ120200211

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-60010iUZJ120200211

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60010iUZJ120200211

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60030iUZJ120200211

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-60060iUZJ120200211-200908

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-60060iUZJ120200211-200908

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-60030iUZJ120200211

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-60040iUZJ120200211

8101HEADLAMP

→ Go to FIG 81-01

9017606042

main90176-06042

9046708011

main90467-08011

9046709169C0

main90467-09169C0

91631J0612

main91631-J0612

23 parts on this diagram · 2 diagrams in section
