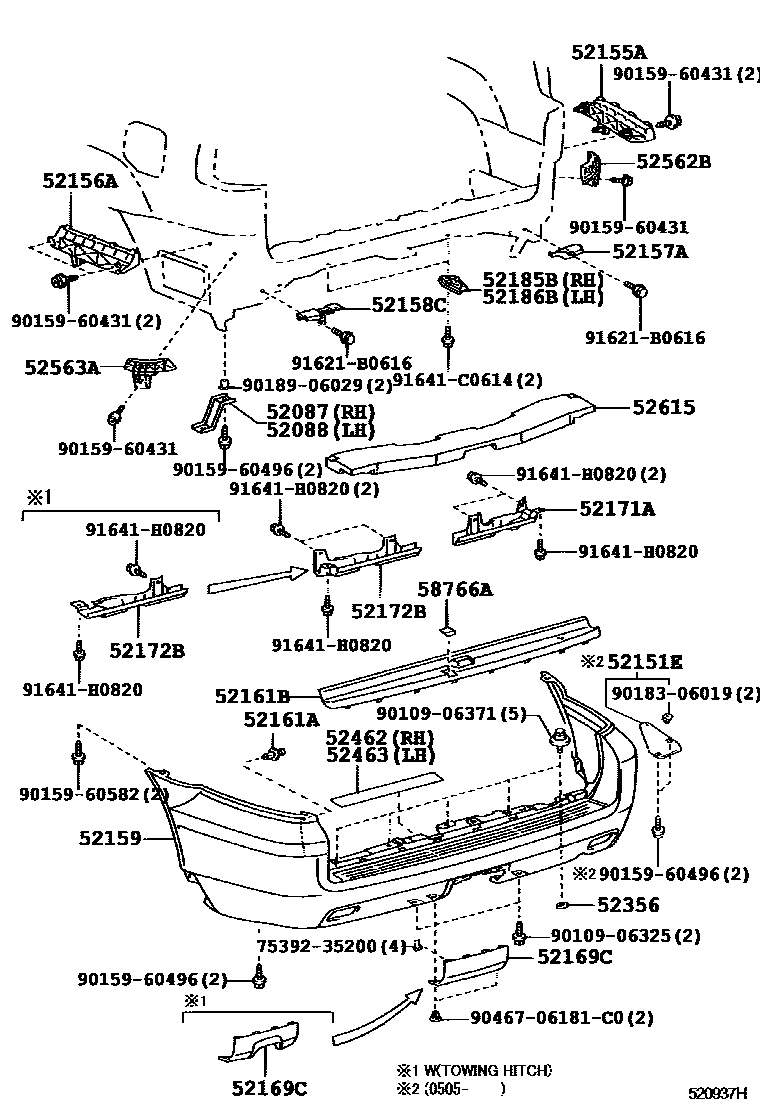

REAR BUMPER & BUMPER STAY

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52087-60020iUZJ120200211-200908

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52088-60020iUZJ120200211-200908

52151EBAR, REAR BUMPER

main52151-60140iUZJ120200505-200908

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-60060iUZJ120200211-200908

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-60060iUZJ120200211-200908

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-60010iUZJ120200211-200908

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-60030iUZJ120200211-200908

52159COVER, REAR BUMPER

main52159-60917iUZJ120200211-200505

PAINT REQ.

main52159-60964iUZJ120200505-200908

PAINT REQ.

52161APIECE, REAR BUMPER, RH

main52161-16010iUZJ120200211-200908

52161BPIECE, REAR BUMPER

main52161-60050iUZJ120200211-200908

52169CCOVER, REAR BUMPER, LOWER

main52169-60040-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main52169-60040-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main52169-60050-B0supersedes 52169-60040-B0iUZJ120200211-200304

TOWING HITCH-WITH,GRAY M.M.,1E8

main52169-60050-B1supersedes 52169-60040-B1iUZJ120200211-200304

TOWING HITCH-WITH,SILVER ME.,1F0

main52169-60050-C0supersedes 52169-60040-C0iUZJ120200211-200304

TOWING HITCH-WITH,BLACK,202

main52169-60050-E0supersedes 52169-60040-E0iUZJ120200211-200304

TOWING HITCH-WITH,BEIGE PEARL CS.,4R2

main52169-60050-F0supersedes 52169-60040-F0iUZJ120200211-200304

TOWING HITCH-WITH,CHAMPAGNE M.M.,587

main52169-60050-J0supersedes 52169-60040-J0iUZJ120200211-200304

TOWING HITCH-WITH,DARK BLUE M.M.,8R4

main52169-60051-A0iUZJ120200306-200404

TOWING HITCH-WITH,WHITE PEARL CS.,070

main52169-60051-B0iUZJ120200304-200404

TOWING HITCH-WITH,GRAY M.M.,1E8

main52169-60051-B1iUZJ120200304-200404

TOWING HITCH-WITH,SILVER ME.,1F0

main52169-60051-C0iUZJ120200304-200404

TOWING HITCH-WITH,BLACK,202

main52169-60051-E0supersedes 52169-60040-E0iUZJ120200304-200306

TOWING HITCH-WITH,BEIGE PEARL CS.,4R2

main52169-60051-F0iUZJ120200304-200404

TOWING HITCH-WITH,CHAMPAGNE M.M.,587

main52169-60051-J0iUZJ120200304-200404

TOWING HITCH-WITH,DARK BLUE M.M.,8R4

main52169-60052-A0iUZJ120200404-200908

TOWING HITCH-WITH,WHITE PEARL CS.,070

main52169-60052-B0iUZJ120200404-200707

TOWING HITCH-WITH,GRAY M.M.,1E8

main52169-60052-B1iUZJ120200404-200508

TOWING HITCH-WITH,SILVER ME.,1F0

main52169-60052-B2supersedes 52169-60040-B2iUZJ120200508-200908

TOWING HITCH-WITH,SILVER ME.,1D4

main52169-60052-C0iUZJ120200404-200908

TOWING HITCH-WITH,BLACK,202

main52169-60052-D0supersedes 52169-60040-D0iUZJ120200707-200908

TOWING HITCH-WITH,DK. RED M.M.,3Q3

main52169-60052-E1supersedes 52169-60040-E1iUZJ120200508-200908

TOWING HITCH-WITH,BEIGE ME.,4R4

main52169-60052-F0iUZJ120200404-200508

TOWING HITCH-WITH,CHAMPAGNE M.M.,587

main52169-60052-G1supersedes 52169-60040-G1iUZJ120200707-200812

TOWING HITCH-WITH,MD.GREEN M.M.,6U3

main52169-60052-J0iUZJ120200404-200508

TOWING HITCH-WITH,DARK BLUE M.M.,8R4

main52169-60052-J1supersedes 52169-60040-J1iUZJ120200508-200908

TOWING HITCH-WITH,DK.BLUE MC.,8S6

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-60060supersedes 52171-60050iUZJ120200211-200908

TOWING HITCH-WITH

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-60040supersedes 52172-60030iUZJ120200211-200908

TOWING HITCH-WITH

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60090iUZJ120200211-200908

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-60090iUZJ120200211-200908

52356CUSHION, REAR BUMPER STEP

main52356-60050×5iUZJ120200211-200908

52462PAD, REAR BUMPER, RH

main52462-60030iUZJ120200211-200908

52463PAD, REAR BUMPER, LH

main52462-60030iUZJ120200211-200908

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-60030iUZJ120200211-200908

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-60030iUZJ120200211-200908

52615ABSORBER, REAR BUMPER ENERGY

main52615-60020iUZJ120200211-200908

58766ACOVER, JACK BOX HOLE

main58766-60010iUZJ120200211-200908

7539235200RETAINER, OUTSIDE MOULDING

main75392-35200

9010906325

main90109-06325

9010906371

main90109-06371

9015960431

main90159-60431

9015960496

main90159-60496

9015960582

main90159-60582

9018306019

main90183-06019

9018906029

main90189-06029

9046706181C0

main90467-06181C0

91621B0616

main91621-B0616

91641C0614

main91641-C0614

91641H0820

main91641-H0820

34 parts on this diagram · 1 diagram in section
