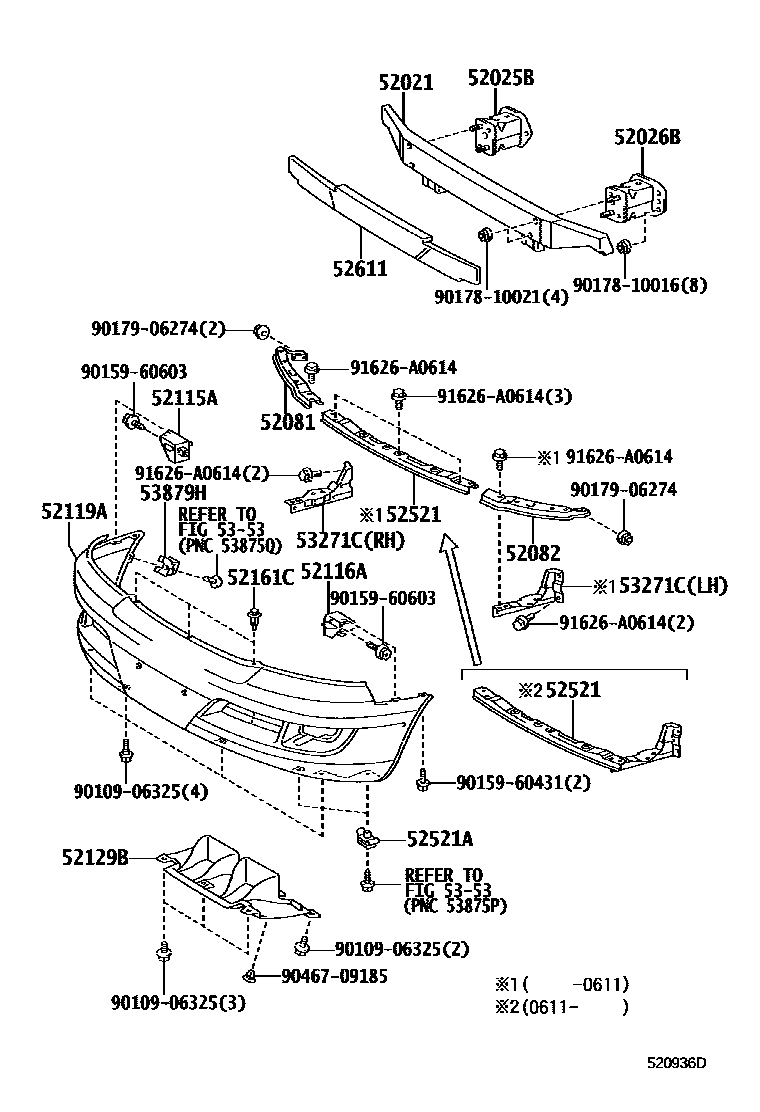

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60110iUZJ120200211-200908

52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60020iUZJ120200211

52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60020iUZJ120200211

52081STAY SUB-ASSY, FRONT BUMPER

main52081-60010iUZJ120200211

52082STAY SUB-ASSY, FRONT BUMPER, LH

main52082-60010iUZJ120200211

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-60110iUZJ120200211

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60170iUZJ120200211

52119ACOVER, FRONT BUMPER

main52119-60938iUZJ120200211-200908

PAINT REQ.

52129BCOVER, FRONT BUMPER, LOWER

main52129-60010iUZJ120200211

52161CPIECE, FRONT BUMPER

main52161-16010×3iUZJ120200211

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52029-60020iUZJ120200611

main52521-60060iUZJ120200211-200611

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05138×4iUZJ120200211

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60040iUZJ120200211

53271CBRACKET, HEADLAMP MOUNTING

main53271-60010iUZJ120200211

RH

main53272-60010iUZJ120200211-200611

LH

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

53879HRETAINER, FRONT FENDER LINER

main53879-58010×2iUZJ120200211

9010906325

main90109-06325

9015960431

main90159-60431

9015960603

main90159-60603

9017810016

main90178-10016

9017810021

main90178-10021

9017906274

main90179-06274

9046709185

main90467-09185

91626A0614

main91626-A0614

24 parts on this diagram · 1 diagram in section
