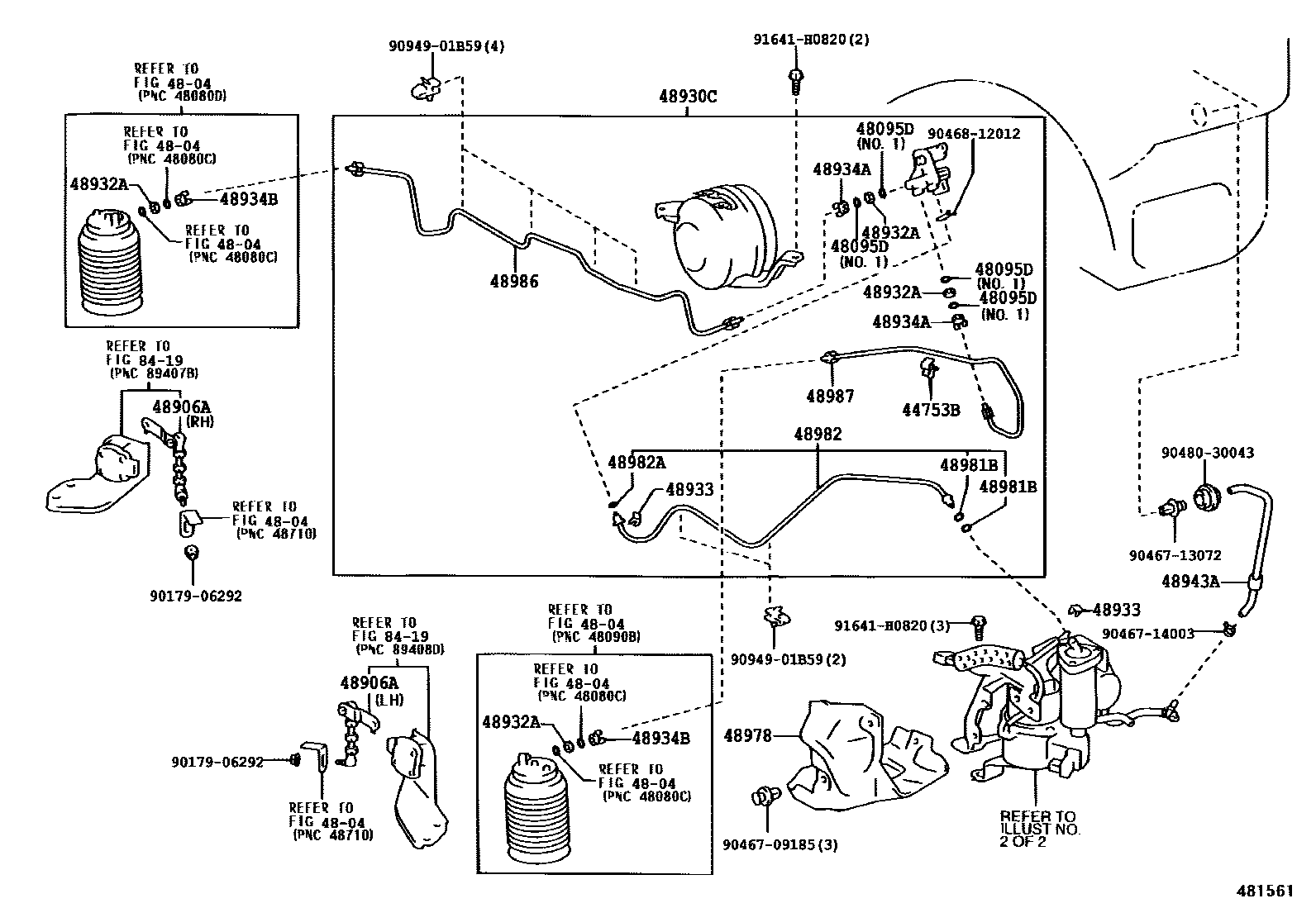

HEIGHT CONTROL (AUTO-LEVELER)

0001 1 0002 1KINETIC DYNAMIC SUSPENSION SY0003 1

44753BCLAMP, HEIGHT CONTROL TUBE, NO.1

main44753-30190iUZJ120200211

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

48095DRING, O(FOR HEIGHT CONTROL VALVE)

main90301-04011×4iUZJ120200211

NO.1

main90301-09014iUZJ120200211

NO.2

48906ALINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR

main48906-35010iUZJ120200211

RH

main48906-35020iUZJ120200211

LH

48930CRESERVOIR ASSY, HEIGHT CONTROL

main48930-60020iUZJ120200211

main48930-60030iUZJ120200311

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

48932APLATE, HEIGHT CONTROL TUBE

main48932-30010×2iUZJ120200211

48933HOLDER, AIR CONNECTOR CLIP

main48933-30010iUZJ120200211

48934APLUG, HEIGHT CONTROL

main48934-30010×2iUZJ120200211

48934BCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iUZJ120200211

48943HOSE, HEIGHT CONTROL, NO.1

main48943-60010iUZJ120200211

48943AHOSE, HEIGHT CONTROL, NO.3

main48943-60030iUZJ120200211

48978COVER, HEIGHT CONTROL COMPRESSOR

main48978-60010iUZJ120200211

48981BRING, O(FOR HEIGHT CONTROL TUBE NO.1)

main90301-04004×2iUZJ120200211

48982TUBE, HEIGHT CONTROL, NO.2

main48982-60050iUZJ120200211

main48982-60060iUZJ120200311

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

48982ARING, O(FOR HEIGHT CONTROL TUBE NO.2)

main90301-04006iUZJ120200211

48986TUBE, HEIGHT CONTROL, NO.6

main48986-60020iUZJ120200211

main48986-60030iUZJ120200311

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

48987TUBE, HEIGHT CONTROL, NO.7

main48987-60010iUZJ120200211

main48987-60020iUZJ120200311

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

8419ELECTRONIC MODULATED SUSPENSION

→ Go to FIG 84-19

9017906292

main90179-06292

9046709185

main90467-09185

9046713072

main90467-13072

9046714003

main90467-14003

9046812012

main90468-12012

9048030043

main90480-30043

9094901B59

main90949-01B59

91641H0820

main91641-H0820

26 parts on this diagram · 3 diagrams in section
