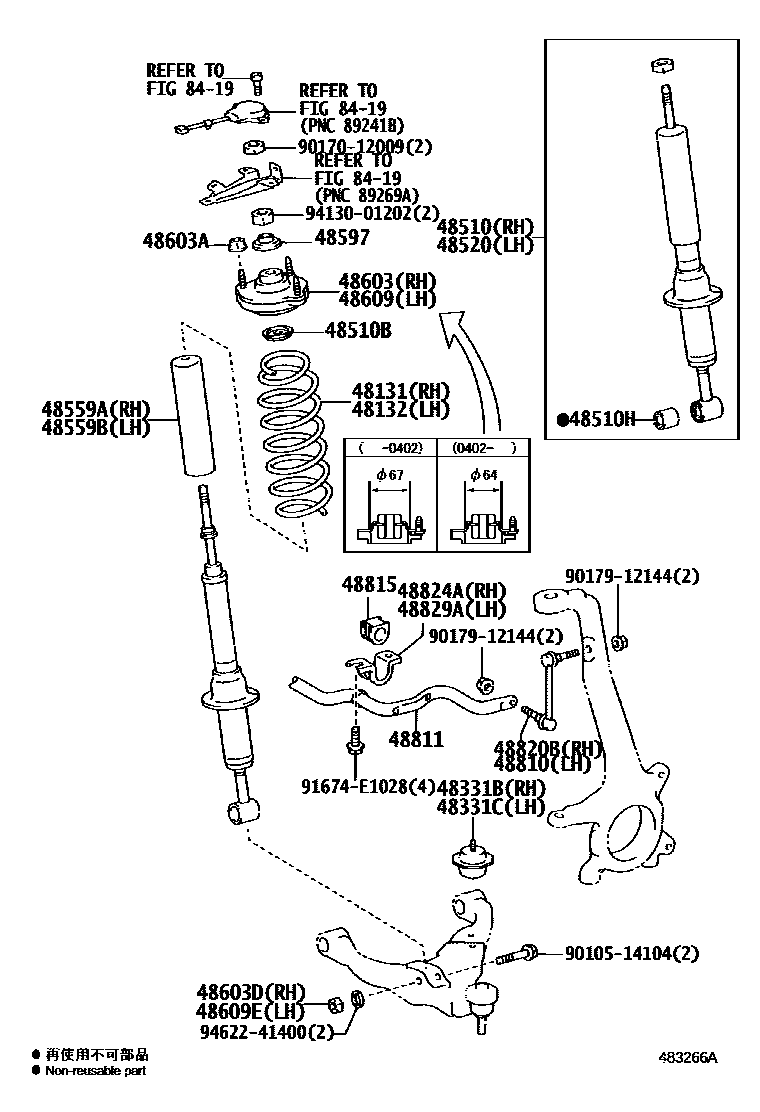

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1KINETIC DYNAMIC SUSPENSION SY0003 1KINETIC DYNAMIC SUSPENSION SY

48131SPRING, FRONT COIL, RH

main48131-60A10supersedes 48131-6B490iUZJ120200311-200312

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

main48131-6B500supersedes 48131-6B490iUZJ120200312-200509

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

48132SPRING, FRONT COIL, LH

main48131-6A560iUZJ120200311-200704

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

48331BBUMPER, FRONT SPRING, RH

main48304-60120iUZJ120200211

48331CBUMPER, FRONT SPRING, LH

main48304-60120iUZJ120200211

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69195iUZJ120200211-200707

MARK 48510-60120

main48510-69415iUZJ120200707-200908

MARK 48510-60121

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02159×2iUZJ120200211

48510HBUSH(FOR FRONT SHOCK ABSORBER)

main90903-89012×2iUZJ120200211-200706

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-69195iUZJ120200211-200707

MARK 48510-60120

main48510-69415iUZJ120200707

MARK 48510-60121

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-30020iUZJ120200211-200706

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-30020iUZJ120200211-200706

48597RETAINER, SHOCK ABSORBER CUSHION

main48597-60060×2iUZJ120200211

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60040iUZJ120200211-200402

main48609-60060iUZJ120200402

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10212×6iUZJ120200211

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90170-14026iUZJ120200211

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60040iUZJ120200211-200402

main48609-60060iUZJ120200402

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90170-14026iUZJ120200211

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60040iUZJ120200211

48811BAR, STABILIZER, FRONT

main48811-60240iUZJ120200211

main48811-60250iUZJ120200311

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-60190×2iUZJ120200211

48820LINK ASSY, FRONT STABILIZER

main48820-60060iUZJ120200311

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60050iUZJ120200211

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-60140iUZJ120200211

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-60090iUZJ120200211

8419ELECTRONIC MODULATED SUSPENSION

→ Go to FIG 84-19

9010514104

main90105-14104

9017012009

main90170-12009

9017912144

main90179-12144

91674E1028

main91674-E1028

9413001202

main94130-01202

9462241400

main94622-41400

30 parts on this diagram · 3 diagrams in section
