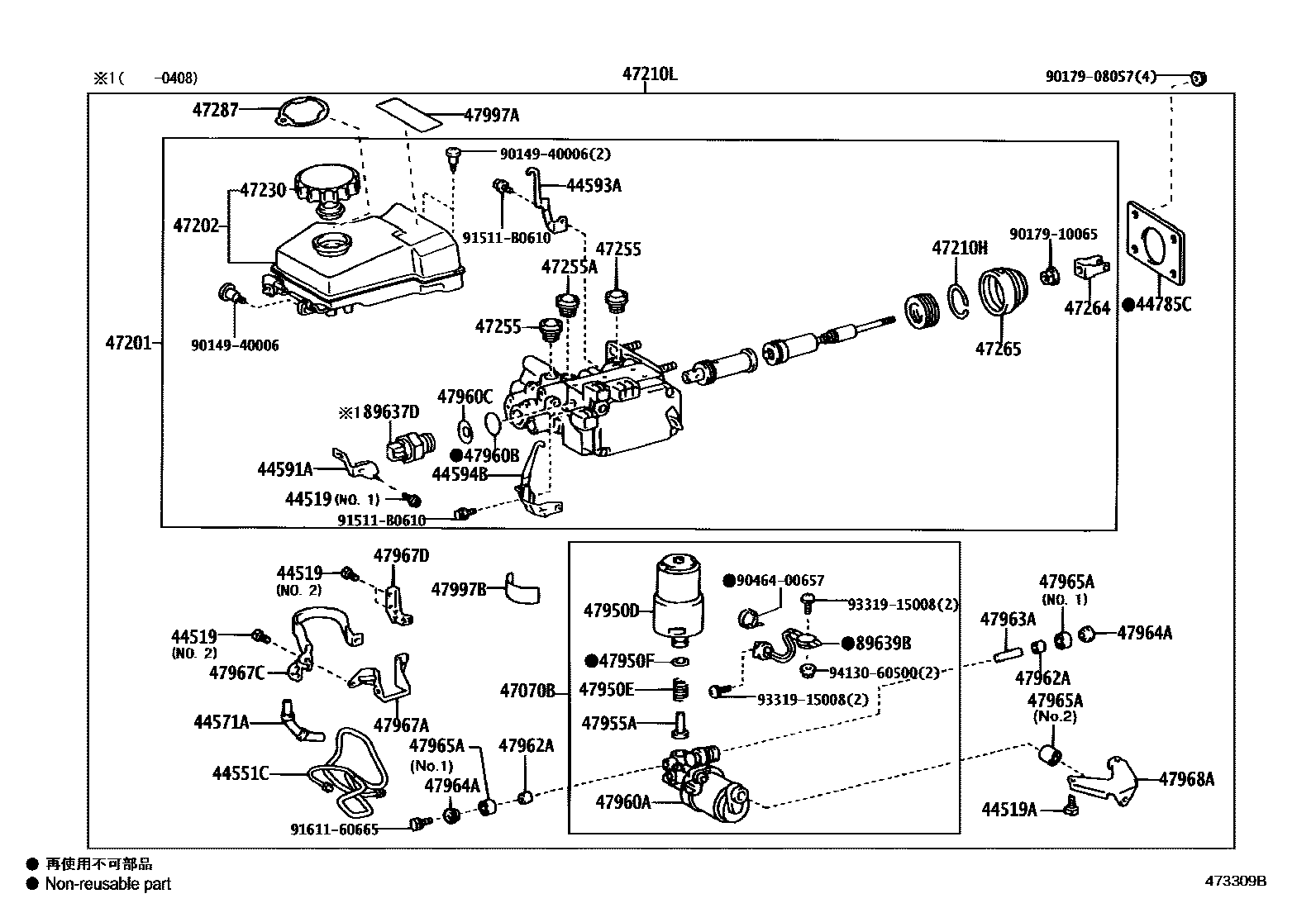

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

44519BOLT, BRAKE ACTUATOR

main44519-24020iUZJ120200211-200410

NO.1

main44519-30010×3iUZJ120200211-200410

NO.2

44519ABOLT(FOR BRAKE BOOSTER PUMP)

main44519-24020×2iUZJ120200211-200410

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-51010iUZJ120200211-200410

main44551-60040iUZJ120200410

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-30080iUZJ120200211-200410

main44571-60020iUZJ120200410

44591ABRACKET, BRAKE ACTUATOR, NO.1

main44591-60050iUZJ120200211-200410

main44591-60060iUZJ120200410

44593ABRACKET, BRAKE ACTUATOR, NO.3

main44593-60010iUZJ120200211-200410

44594BBRACKET, BRAKE ACTUATOR, NO.4

main44594-60010iUZJ120200211-200410

44785CGASKET, BRAKE BOOSTER

main44785-60020iUZJ120200211-200509

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-30060iUZJ120200211-200410

main47070-60030iUZJ120200410-200904

main47070-60050iUZJ120200904

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47025-60080iUZJ120200211-200408

main47025-60081iUZJ120200408-200410

main47025-60100iUZJ120200410-200510

main47025-60101iUZJ120200510

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-60170iUZJ120200408-200410

main47220-60180iUZJ120200410

main47220-60190iUZJ120200211-200408

47210HRING, SNAP(FOR BRAKE MASTER CYLINDER)

main90520-32012iUZJ120200211

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-60080iUZJ120200211-200408

main47050-60081iUZJ120200408-200410

main47050-60110iUZJ120200410-200509

main47050-60111iUZJ120200510

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010iUZJ120200410

main47230-30130iUZJ120200211-200410

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iUZJ120200211

47255AGROMMET, MASTER CYLINDER RESERVOIR, NO.2

main31417-35010iUZJ120200211

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iUZJ120200211

47265BOOT, MASTER CYLINDER

main90029-70001iUZJ120200211

47287LABEL, BRAKE FLUID INFORMATION

main47287-20020iUZJ120200211-200710

main47287-60180iUZJ120200710

47950DACCUMULATOR ASSY, BRAKE BOOSTER

main47950-30010iUZJ120200211-200410

main47950-60020iUZJ120200410

47950ESPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR)

main90501-16160iUZJ120200211-200410

47950FRING, O(FOR BRAKE BOOSTER ACCUMULATOR)

main90301-13014iUZJ120200211

47955APIPE, BRAKE BOOSTER ACCUMULATOR

main47955-30010iUZJ120200211-200410

main47955-60010iUZJ120200410

47960APUMP ASSY, BRAKE BOOSTER

main47960-30030iUZJ120200211-200410

main47960-60050iUZJ120200904

main47960-60090iUZJ120200410-200904

47960BRING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)

main90301-15014iUZJ120200211-200410

47960CSPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)

main90561-16009iUZJ120200211-200410

47962ACOLLAR, BRAKE BOOSTER PUMP

main47962-24010×2iUZJ120200211-200410

main47962-60090×2iUZJ120200410

47963ASHAFT, BRAKE BOOSTER PUMP

main47963-24010iUZJ120200211-200410

47964AWASHER, BRAKE BOOSTER PUMP

main47964-24010×2iUZJ120200211-200410

47965ABUSH, BRAKE BOOSTER PUMP

main47965-24010×2iUZJ120200211-200410

NO.1

main47965-30010iUZJ120200211-200410

NO.2

main90015-AL001iUZJ120200510

NO.2

47967ABRACKET, BRAKE BOOSTER PUMP, NO.1

main47967-30020iUZJ120200211-200410

main47967-60090iUZJ120200410

47967CBRACKET, BRAKE BOOSTER PUMP, NO.2

main47967-30030iUZJ120200211-200410

47967DBRACKET, BRAKE BOOSTER PUMP, NO.3

main47967-30040iUZJ120200211-200410

47968ABRACKET, BRAKE BOOSTER PUMP, NO.2

main47968-30020iUZJ120200211-200410

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-60010iUZJ120200211-200410

47997BLABEL, ACCUMULATOR CAUTION, NO,2

main47997-60030iUZJ120200211-200410

main47997-60050iUZJ120200702-200710

89637DSENSOR, OIL PRESSURE

main89637-60020iUZJ120200211-200408

89639BWIRE, BRAKE CONTROL

main89639-30100iUZJ120200211-200410

9014940006

main90149-40006

9017908057

main90179-08057

9017910065

main90179-10065

9046400657

main90464-00657

91511B0610

main91511-B0610

9161160665

main91611-60665

9331915008

main93319-15008

9413060500

main94130-60500

46 parts on this diagram · 3 diagrams in section
