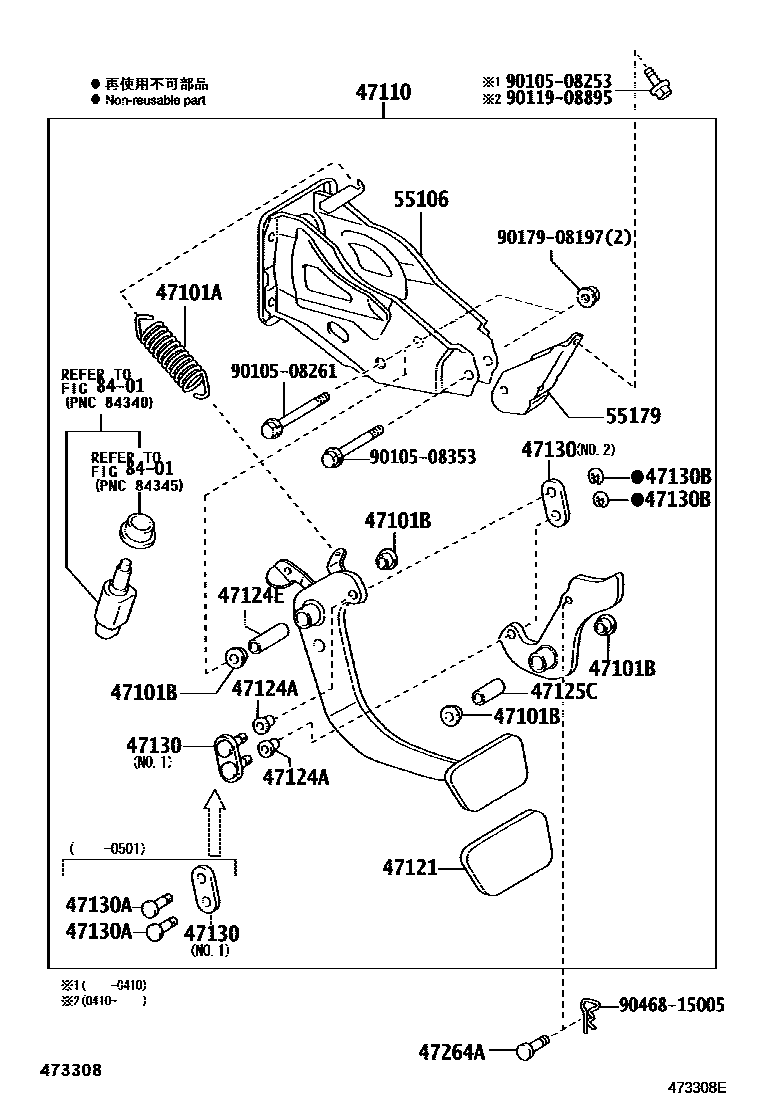

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20033iUZJ120200408

main90507-21002iUZJ120200211-200408

47101BBUSH(FOR BRAKE PEDAL)

main90386-14015×4iUZJ120200211

47110SUPPORT ASSY, BRAKE PEDAL

main47110-60140iUZJ120200211-200408

main47110-60190iUZJ120200408

47121PAD, BRAKE PEDAL

main47121-50020iUZJ120200211

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-34010×2iUZJ120200211

47124ECOLLAR, BRAKE PEDAL SHAFT, NO.2

main90387-08160iUZJ120200211

47125CCOLLAR(FOR BRAKE PEDAL BRACKET)

main47144-60020iUZJ120200211

47130LINK ASSY, BRAKE PEDAL

main4710A-28010iUZJ120200501

NO.1

main47130-60010×2iUZJ120200211-200408

NO.1 & NO.2

main47130-60020×2iUZJ120200408-200501

main47130-60021iUZJ120200501

NO.2

47130APIN, BRAKE PEDAL LINK

main90249-06172×2iUZJ120200211-200501

47130BRING E, BRAKE PEDAL LINK PIN

main96160-00400×2iUZJ120200211

47264APIN(FOR PUSH ROD)

main90240-06023iUZJ120200211

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-35170iUZJ120200211-200908

55179REINFORCEMENT, BRAKE PEDAL SUPPORT

main55179-35050iUZJ120200211-200908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508253

main90105-08253

9010508261

main90105-08261

9010508353

main90105-08353

9011908895

main90119-08895

9017908197

main90179-08197

9046815005

main90468-15005

20 parts on this diagram · 1 diagram in section
