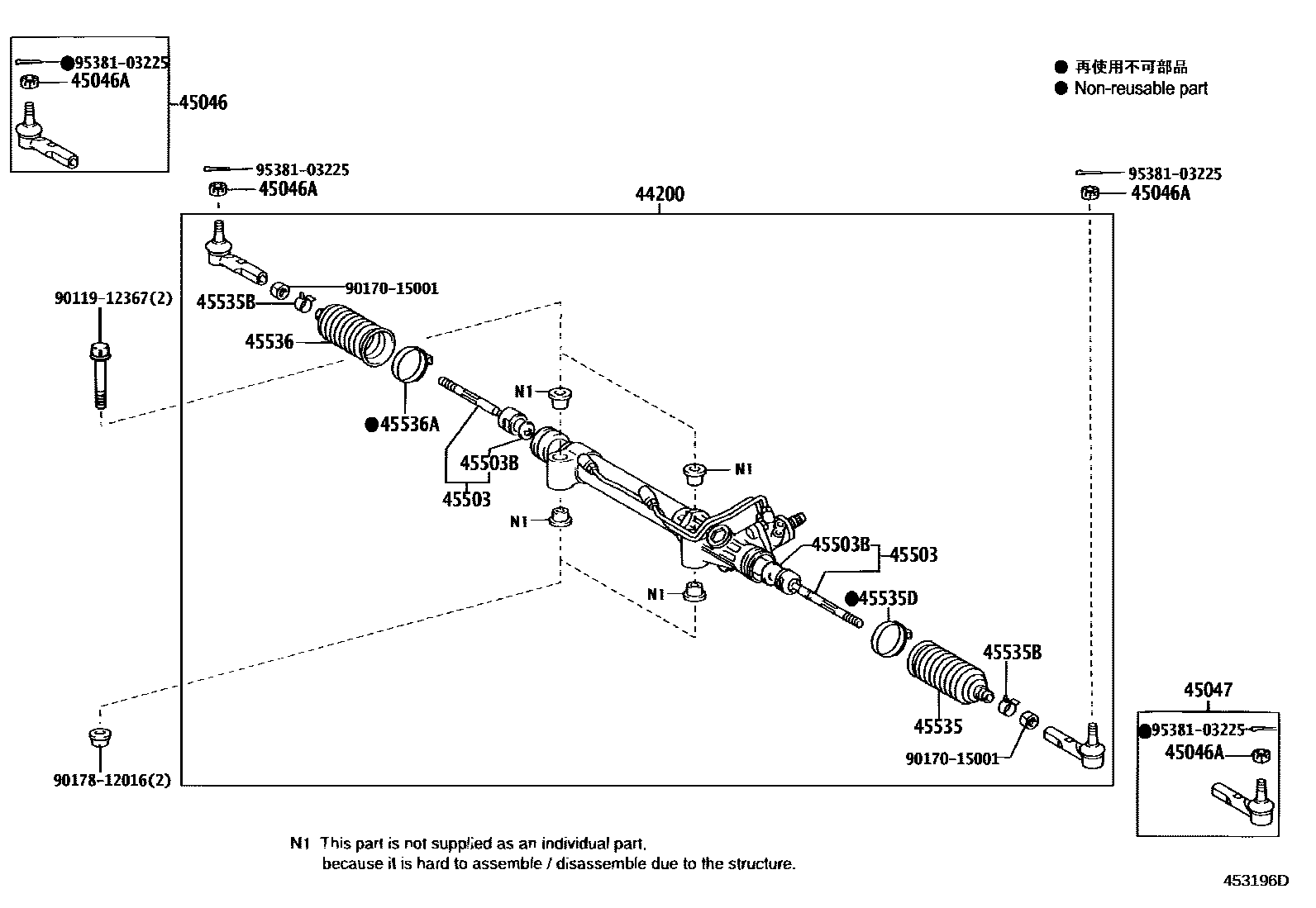

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-35060iUZJ120200211-200311

main44200-35061iUZJ120200311-200408

main44200-35070iUZJ120200408

45046END SUB-ASSY, TIE ROD, RH

main45046-39505iUZJ120200211

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iUZJ120200211

45047END SUB-ASSY, TIE ROD, LH

main45046-39505iUZJ120200211

45503END SUB-ASSY, STEERING RACK

main45503-39235×2iUZJ120200211-200309

main45503-39265×2iUZJ120200309

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-22001×2iUZJ120200211

OD=43

45535BOOT, STEERING RACK, NO.1

main45535-26030iUZJ120200211

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iUZJ120200211

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iUZJ120200211

45536BOOT, STEERING RACK, NO.2

main45535-26030iUZJ120200211

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iUZJ120200211

9011912367

main90119-12367

9017015001

main90170-15001

9017812016

main90178-12016

9538103225

main95381-03225

15 parts on this diagram · 2 diagrams in section
