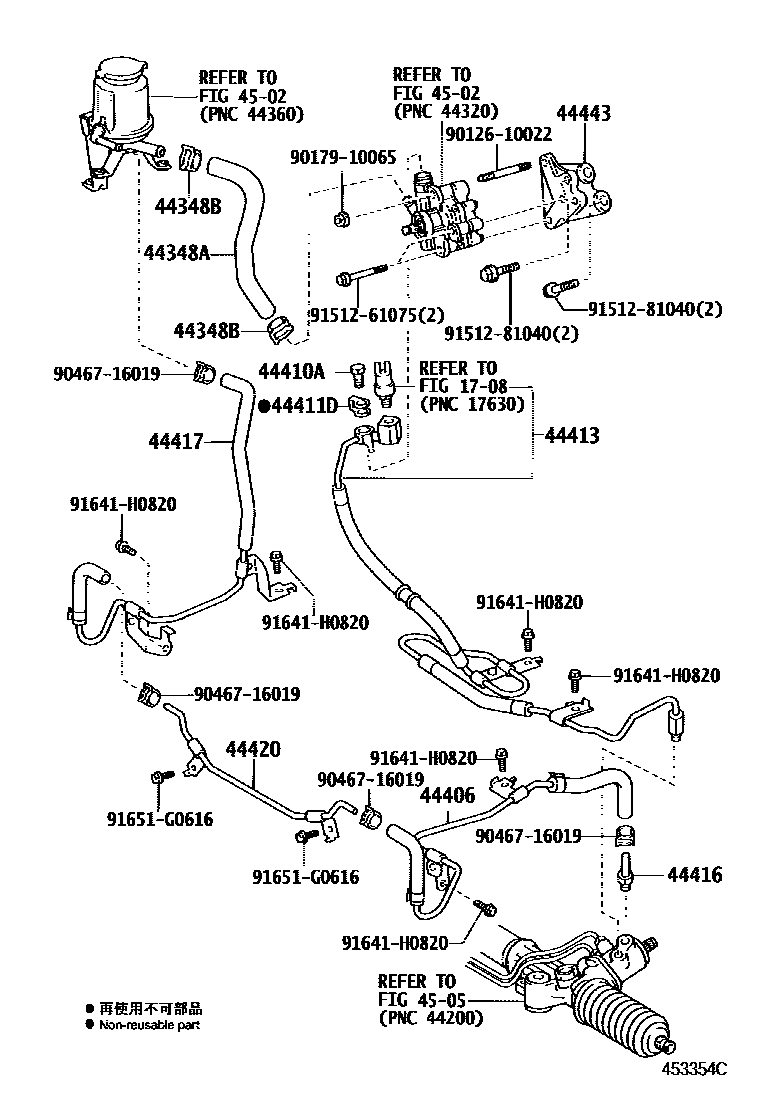

POWER STEERING TUBE

0001 1 0002 1KINETIC DYNAMIC SUSPENSION SY

1708VACUUM PIPING

→ Go to FIG 17-08

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35250iUZJ120200211

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21010×2iUZJ120200211

44406TUBE SUB-ASSY, RETURN

main44406-35020iUZJ120200211-200507

main44406-60010iUZJ120200311-200507

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

main44406-60011supersedes 44406-35021iUZJ120200508

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iUZJ120200211-200908

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iUZJ120200211-200908

44413TUBE, PRESSURE FEED, NO.1

main44413-35010iUZJ120200211

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iUZJ120200211-200507

main44416-60370iUZJ120200508-200908

44417TUBE, RETURN, NO.2

main44417-35010iUZJ120200211-200507

main44417-35011iUZJ120200508

44420COOLER ASSY, OIL

main44420-35200iUZJ120200211-200507

main44420-35201iUZJ120200508

44443BRACKET, PUMP

main44443-60100iUZJ120200211

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9012610022

main90126-10022

9017910065

main90179-10065

9046716019

main90467-16019

9151261075

main91512-61075

9151281040

main91512-81040

91641H0820

main91641-H0820

91651G0616

main91651-G0616

20 parts on this diagram · 2 diagrams in section
