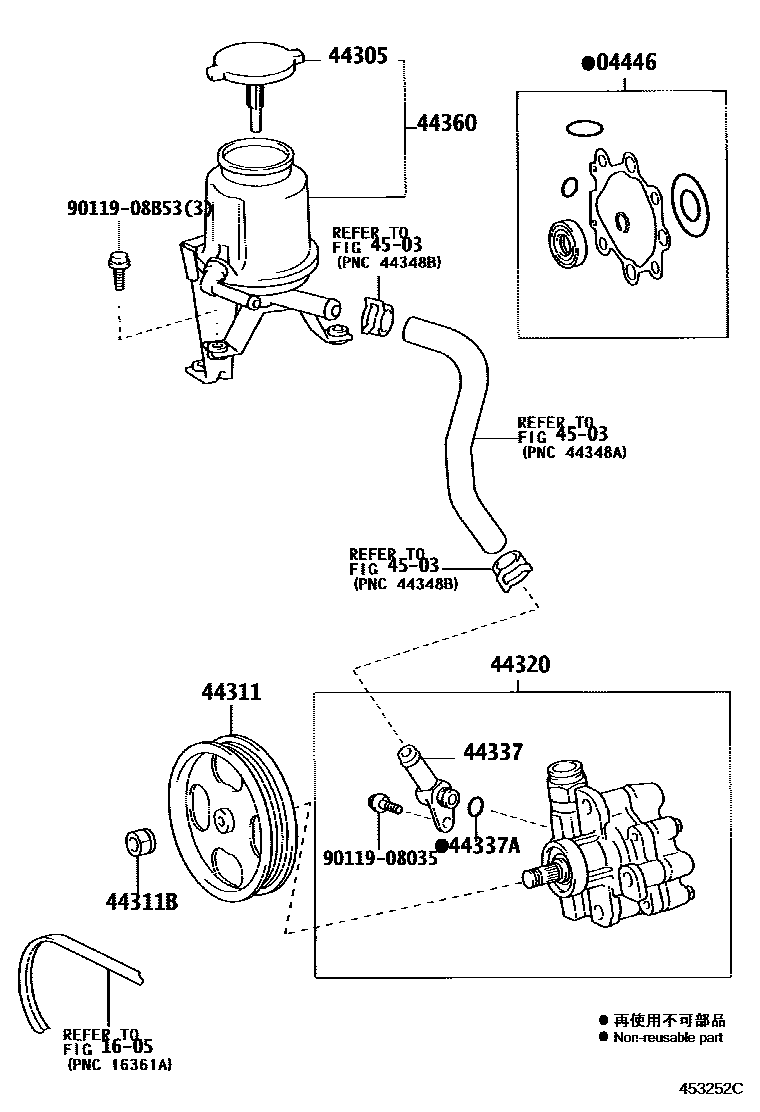

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-53030iUZJ120200211

1605V-BELT

→ Go to FIG 16-05

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iUZJ120200211-200801

main44305-28060iUZJ120200802

44311PULLEY, VANE PUMP

main44311-60090iUZJ120200211

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iUZJ120200211

44320PUMP ASSY, VANE

main44320-35610iUZJ120200211

44337UNION, POWER STEERING SUCTION PORT

main44337-12010iUZJ120200211

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iUZJ120200211

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-35170iUZJ120200211

4503POWER STEERING TUBE

→ Go to FIG 45-03

9011908035

main90119-08035

9011908B53

main90119-08B53

12 parts on this diagram · 1 diagram in section
