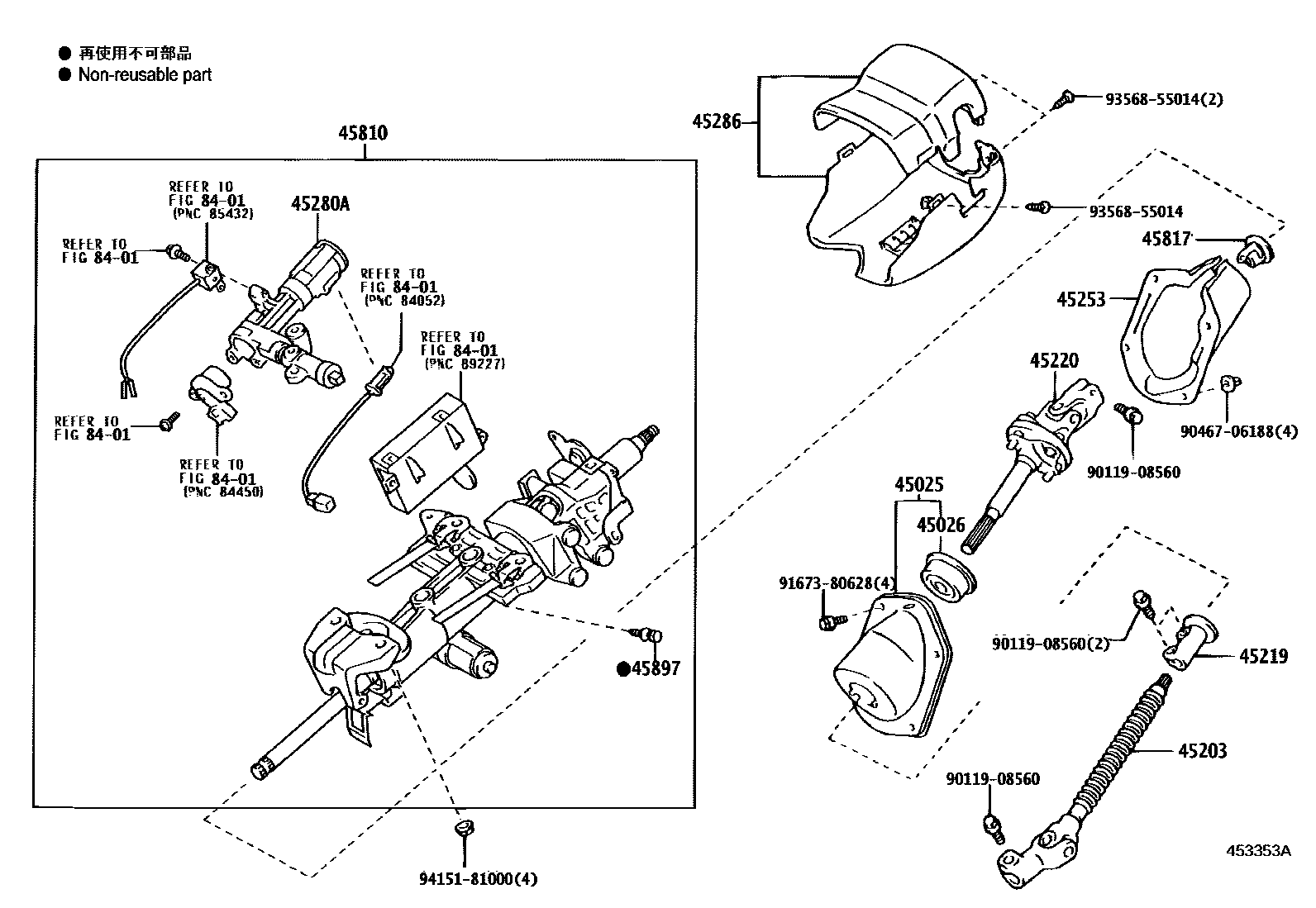

STEERING COLUMN & SHAFT

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-35370iUZJ120200211

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-35060iUZJ120200211

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-35310iUZJ120200211-200311

main45203-60120iUZJ120200311

45219YOKE, STEERING SLIDING

main45219-35160iUZJ120200211

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60140iUZJ120200211

45253COVER, STEERING COLUMN HOLE

main45253-35350iUZJ120200211

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60620iUZJ120200211

45286COVER, STEERING COLUMN

main45286-35912-C0iUZJ120200211-200908

BLACK,TRIM1#

main45286-35912-E0iUZJ120200211-200908

SANDAL WOOD,TRIM0#

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-60010iUZJ120200211

45817STOPPER, STEERING SHAFT THRUST

main45817-35050iUZJ120200211

45897BOLT, STEERING LOCK SET

main45897-12020×2iUZJ120200211

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9046706188

main90467-06188

9167380628

main91673-80628

9356855014

main93568-55014

9415181000

main94151-81000

17 parts on this diagram · 1 diagram in section
