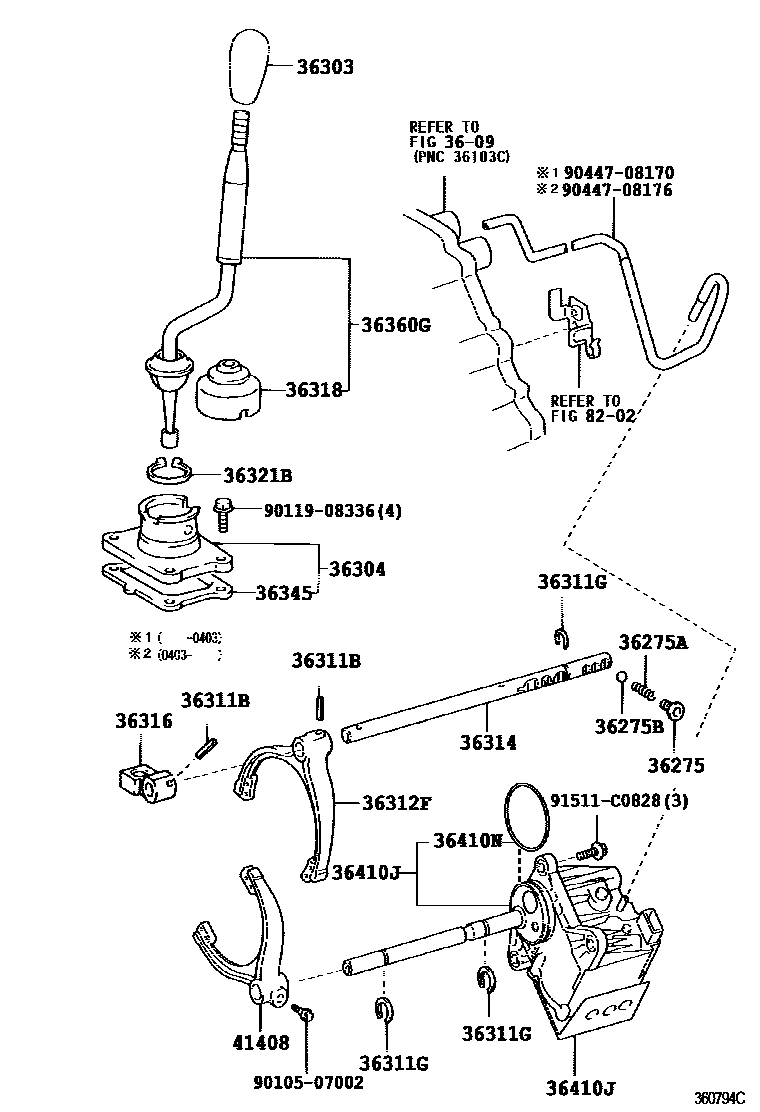

TRANSFER LEVER & SHIFT ROD

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014iUZJ120200211

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116iUZJ120200211

L=23

36275BBALL, SHIFT DETENT

main90360-10003iUZJ120200211

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-60310-C0iUZJ120200211-200908

BLACK,TRIM01,1#

main36303-60310-E0iUZJ120200211-200908

SANDAL WOOD,TRIM00

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-60040iUZJ120200211-200908

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×2iUZJ120200211

L=22

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002×3iUZJ120200211

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-60190iUZJ120200211

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60110iUZJ120200211

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-35040iUZJ120200211

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iUZJ120200211

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iUZJ120200211

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35040iUZJ120200211

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-6A060iUZJ120200211

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-60080iUZJ120200211-200408

main36410-60081iUZJ120200408-200411

main36410-60082iUZJ120200411-200908

36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)

main90301-56009iUZJ120200211

41408FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK

main41408-60021iUZJ120200211

8202WIRING & CLAMP

→ Go to FIG 82-02

9010507002

main90105-07002

9011908336

main90119-08336

9044708170

main90447-08170

9044708176

main90447-08176

91511C0828

main91511-C0828

24 parts on this diagram · 1 diagram in section
