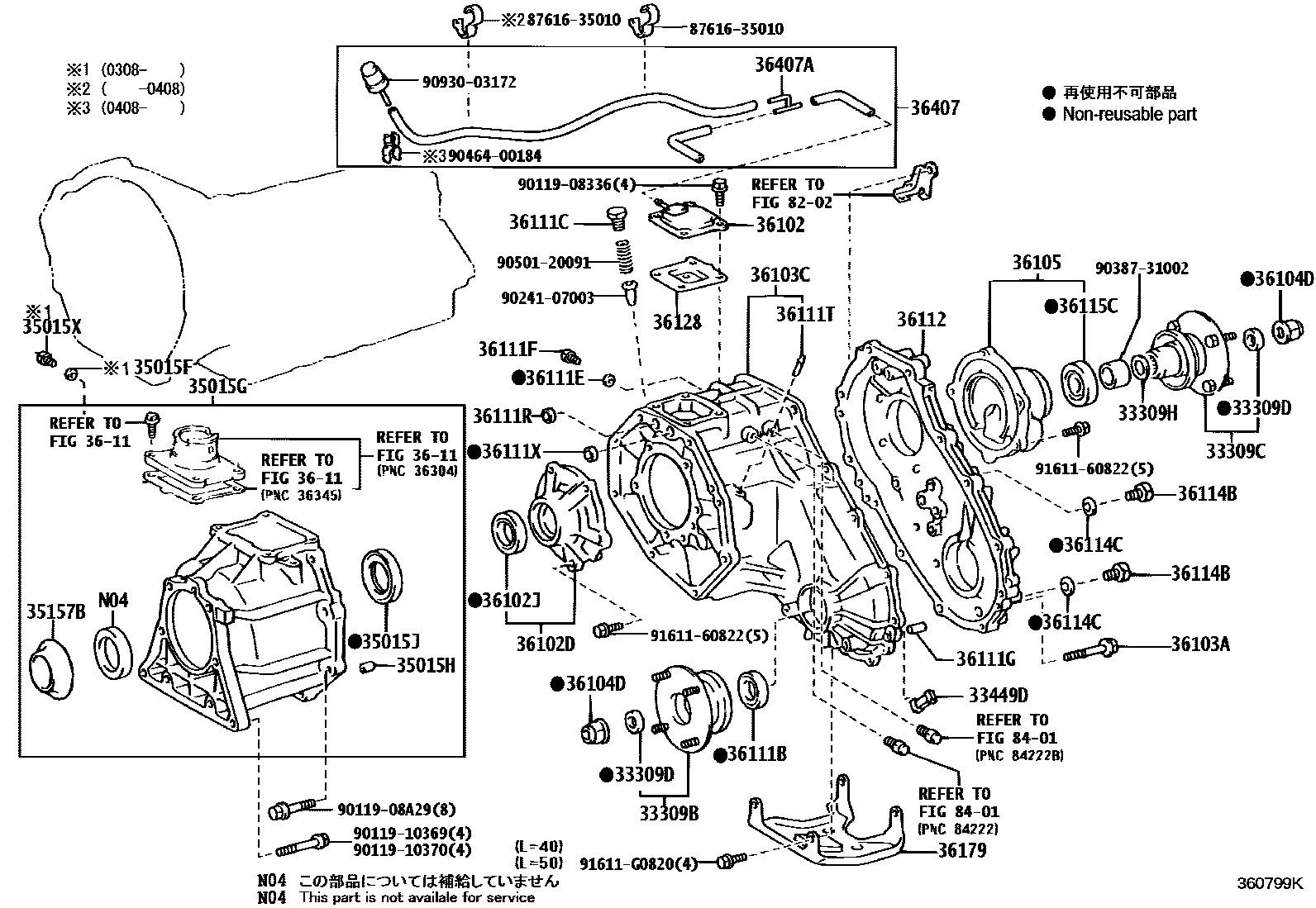

TRANSFER CASE & EXTENSION HOUSING

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35111iUZJ120200807-200908

main33309-35130iUZJ120200211-200807

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35120iUZJ120200211-200908

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001×2iUZJ120200211

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35030×2iUZJ120200211

N=31,OD=38

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iUZJ120200211

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90301-15004iUZJ120200308-200311

main90521-72001iUZJ120200408-200908

35015GADAPTER, TRANSFER, REAR

main35015-60120iUZJ120200211-200308

main35015-60190iUZJ120200308-200908

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003×2iUZJ120200408-200908

main90253-11001×2iUZJ120200211-200408

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-43007iUZJ120200211-200908

35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iUZJ120200308-200908

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-60010iUZJ120200211-200908

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iUZJ120200211

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35060iUZJ120200211

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-43008iUZJ120200211

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28×12iUZJ120200211

*8-1.25PX55-30

36103CCASE, TRANSFER, FRONT

main36103-60350iUZJ120200211

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016×2iUZJ120200211

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-35050iUZJ120200211

3611TRANSFER LEVER & SHIFT ROD

→ Go to FIG 36-11

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41010iUZJ120200211-200609

main90311-41012iUZJ120200609-200807

main90311-41013iUZJ120200807

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iUZJ120200211

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iUZJ120200211

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iUZJ120200211

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iUZJ120200211

L=14,OD=10

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90331-25005iUZJ120200211

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iUZJ120200211-200908

36111XSEAL, OIL (FOR TRANSFER CASE), NO.2

main90311-15008iUZJ120200211

36112CASE, TRANSFER, REAR

main36112-60170iUZJ120200211

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006×2iUZJ120200211

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008×2iUZJ120200211

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iUZJ120200211

36128DEFLECTOR, BREATHER OIL

main36128-35060iUZJ120200211

36179PROTECTOR, TRANSFER CASE LOWER

main36179-35020iUZJ120200211

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60090iUZJ120200211-200408

main36407-60130iUZJ120200408

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04008iUZJ120200211

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910369

main90119-10369

9011910370

main90119-10370

9024107003

main90241-07003

9038731002

main90387-31002

9046400184

main90464-00184

9050120091

main90501-20091

9093003172

main90930-03172

9161160822

main91611-60822

91611G0820

main91611-G0820

49 parts on this diagram · 1 diagram in section
