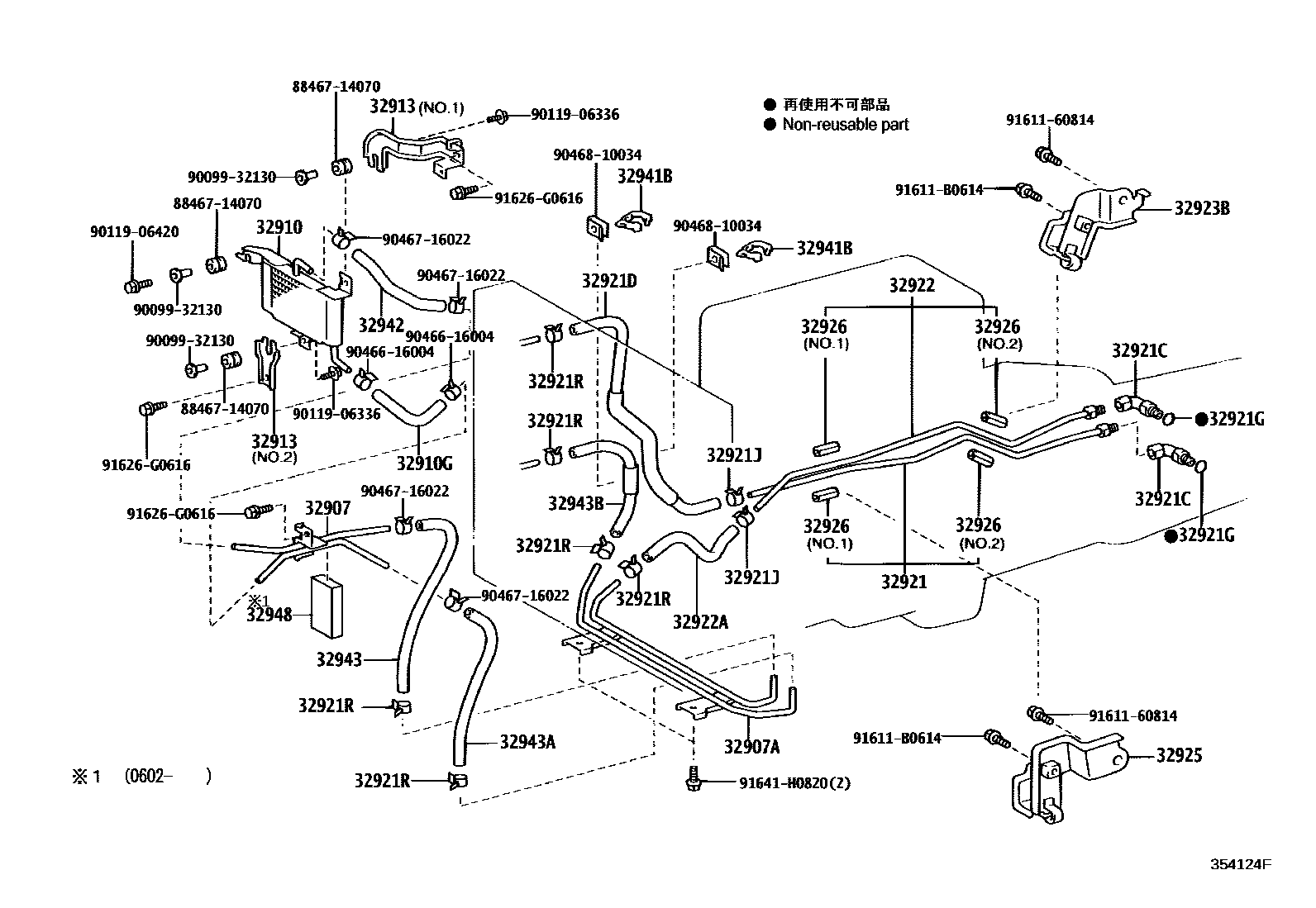

OIL COOLER & TUBE (ATM)

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-60090iUZJ120200211-200311

main32907-60110iUZJ120200311-200601

main32907-60120iUZJ120200602

32907ATUBE, OIL COOLER

main32907-60060iUZJ120200311

main32907-60070iUZJ120200211-200311

32910COOLER ASSY, OIL

main32910-60150iUZJ120200211

32910GHOSE, OIL COOLER OUTLET

main32943-60320iUZJ120200211

32913BRACKET, OIL COOLER

main32913-60240iUZJ120200211

NO.1

main32913-60250iUZJ120200211

NO.2

32921TUBE, OIL COOLER INLET, NO.1

main32921-60330iUZJ120200211-200408

main32921-60380iUZJ120200408

32921CUNION(FOR OIL COOLER TUBE)

main90407-16009×2iUZJ120200408-200908

main90407-16037×2iUZJ120200211-200408

32921DHOSE(FOR OIL COOLER INLET)

main32941-60260iUZJ120200211

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iUZJ120200211-200308

main90301-11030×2iUZJ120200408-200908

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×2iUZJ120200901

main90467-16022×2iUZJ120200211-200812

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×6iUZJ120200706

main90467-16022×6iUZJ120200211-200705

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60350iUZJ120200211-200408

main32922-60410iUZJ120200408

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17103iUZJ120200211

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32909-60150iUZJ120200211

32925CLAMP, OIL COOLER TUBE, NO.3

main32909-60140iUZJ120200211

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iUZJ120200211

L=35,ID=10,NO.1

main32926-30030×2iUZJ120200211

L=35,ID=10,NO.2

32941BCLAMP(FOR OIL COOLER TUBE)

main90464-00166×2iUZJ120200211

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-60410iUZJ120200211

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60240iUZJ120200311-200601

main32943-60260iUZJ120200211-200311

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-60300iUZJ120200211-200311

main32943-60330iUZJ120200311-200601

32943BHOSE, TRANSMISSION OIL COOLER

main32943-60250iUZJ120200211

32948SEAL, OIL COOLER TUBE

main32948-60010iUZJ120200602

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

9009932130

main90099-32130

9011906336

main90119-06336

9011906420

main90119-06420

9046616004

main90466-16004

9046716022

main90467-16022

9046810034

main90468-10034

9161160814

main91611-60814

91611B0614

main91611-B0614

91626G0616

main91626-G0616

91641H0820

main91641-H0820

33 parts on this diagram · 1 diagram in section
