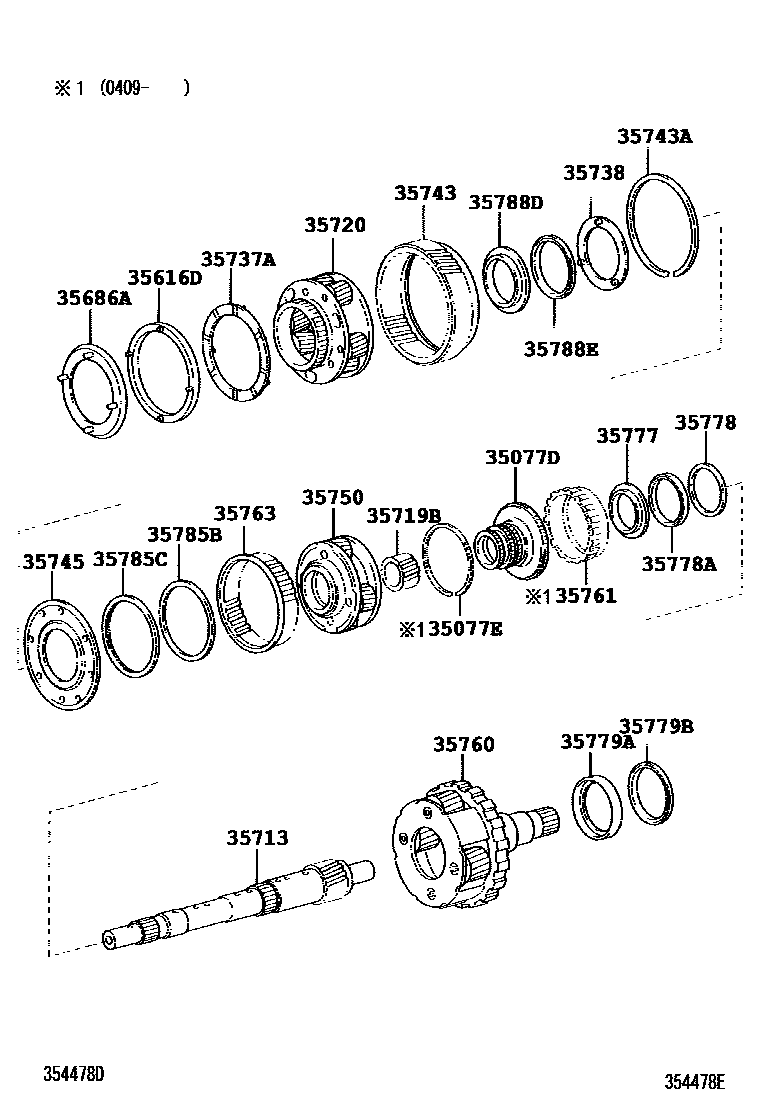

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35616DWASHER, CLUTCH DRUM THRUST
35686AWASHER, CLUTCH DRUM THRUST, NO.2
35713SHAFT, INTERMEDIATE
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35745FLANGE, FRONT PLANETARY RING GEAR
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
35761GEAR, REAR PLANETARY RING
35763GEAR, CENTER PLANETARY RING
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35779BBEARING, THRUST NEEDLE ROLLER
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
25 parts on this diagram · 1 diagram in section
