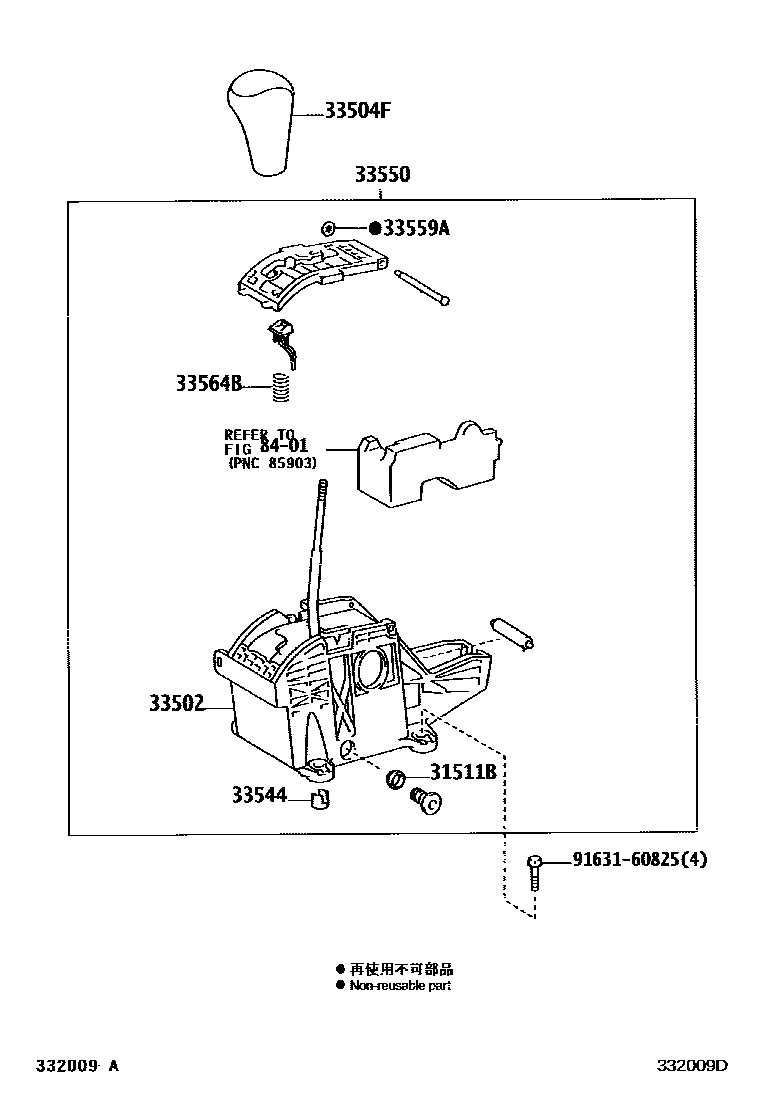

SHIFT LEVER & RETAINER

0001 1 0002 1

31511BBUSH(FOR CONTROL SHAFT)

main90385-13010×2iUZJ120200211

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-60370iUZJ120200211

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-60160-C0iUZJ120200211-200707

BLACK,TRIM01,1#

main33504-60160-E0iUZJ120200211-200707

SANDAL WOOD,TRIM00

main33504-60280-C0iUZJ120200707-200908

BLACK,TRIM1#

main33504-60280-E0iUZJ120200707-200908

SANDAL WOOD,TRIM0#

main33504-60200-C0iUZJ120200408-200908

SPORT PACKAGE,BLACK,TRIM0#,1#

33544INSERT, SHIFT LEVER, NO.1

main33544-33010×4iUZJ120200211

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-60660iUZJ120200211

33559ANUT, SHIFT LEVER, NO.1

main33559-50010iUZJ120200211

33564BSPRING, COMPRESSION (FOR SHIFT LOCK RELEASE LINK)

main90501-06080iUZJ120200211

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9163160825

main91631-60825

9 parts on this diagram · 2 diagrams in section
