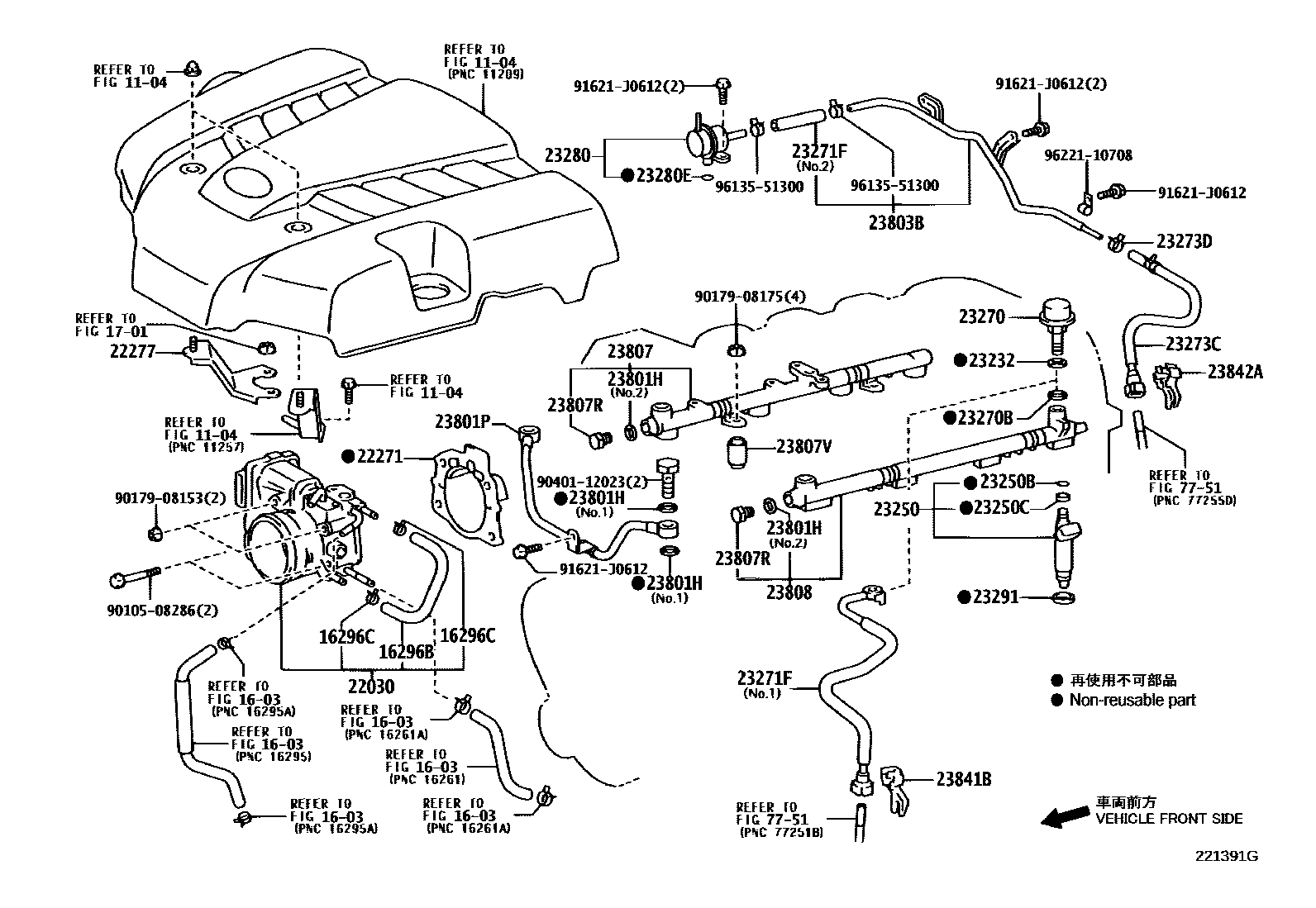

FUEL INJECTION SYSTEM
1104CYLINDER HEAD
1603RADIATOR & WATER OUTLET
16296BHOSE, WATER BY-PASS, NO.8
16296CCLIP(FOR WATER BY-PASS HOSE NO.8)
1701MANIFOLD
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
22277BRACKET, THROTTLE BODY COVER
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23273DCLIP(FOR FUEL HOSE NO.2)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23801HGASKET(FOR FUEL PIPE)
NO.1
NO.2
23801PPIPE SUB-ASSY, FUEL, NO.1
23803BPIPE SUB-ASSY, FUEL, NO.3
23807PIPE SUB-ASSY, FUEL DELIVERY
23807RPLUG, FUEL DELIVARY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
7751FUEL TANK & TUBE
9010508286
main90105-08286
9017908153
main90179-08153
9017908175
main90179-08175
9040112023
main90401-12023
91621J0612
main91621-J0612
9613551300
main96135-51300
9622110708
main96221-10708
37 parts on this diagram · 3 diagrams in section
