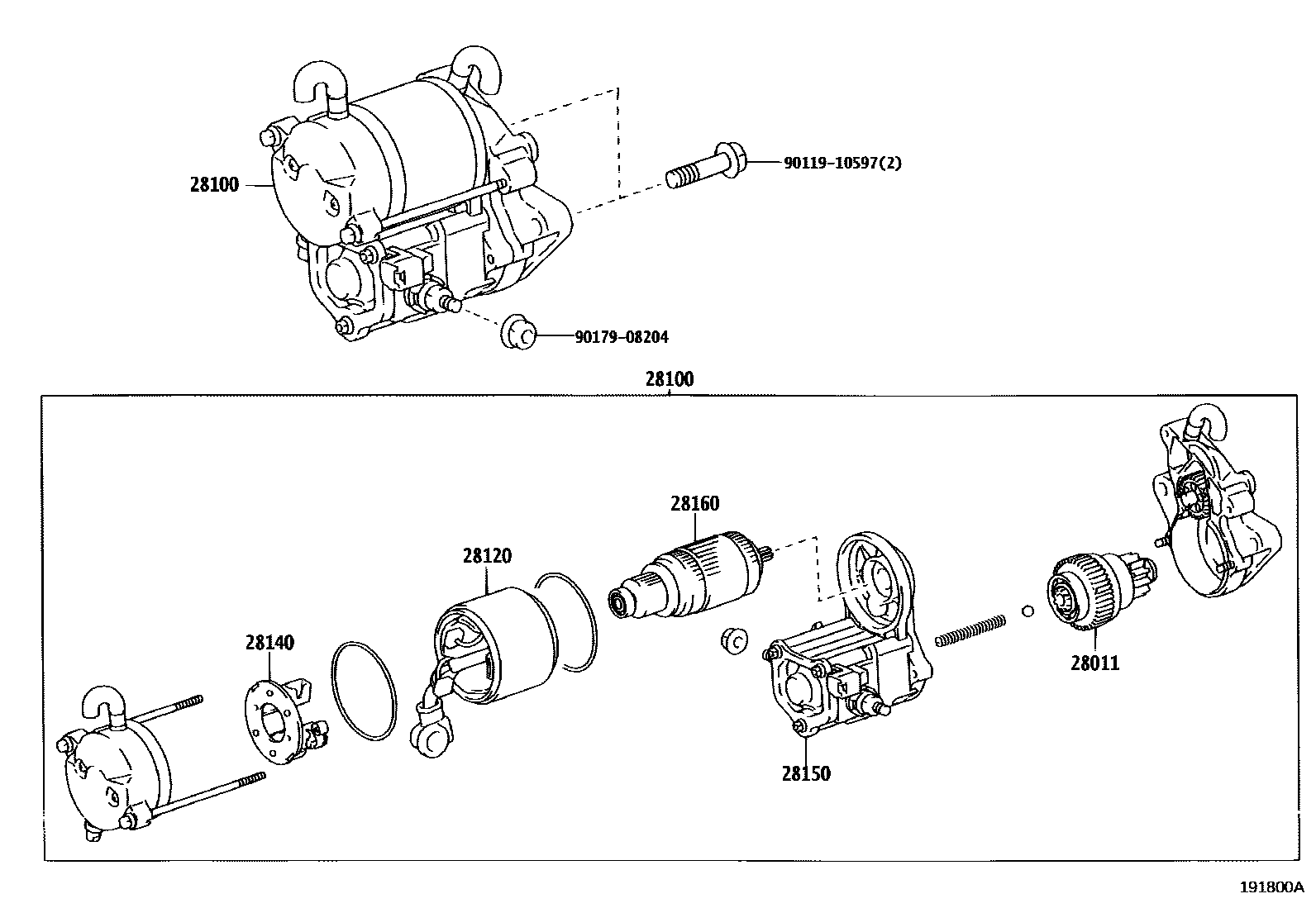

STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-50060i2UZFE..UZJ120200211-200410

main28011-50100i2UZFE..UZJ120200410

28100STARTER ASSY

main28100-50100i2UZFE..UZJ120200211-200402

12V 2.0KW

main28100-50101i2UZFE..UZJ120200403

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-50070i2UZFE..UZJ120200211

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i2UZFE..UZJ120200211

28150SWITCH ASSY, MAGNET STARTER

main28150-50100i2UZFE..UZJ120200211-200410

main28150-50110i2UZFE..UZJ120200410

28160ARMATURE ASSY, STARTER

main28160-75120i2UZFE..UZJ120200211

9011910597

main90119-10597

9017908204

main90179-08204

8 parts on this diagram · 1 diagram in section
