Toyota LEXUS GX470 — AIR CLEANER

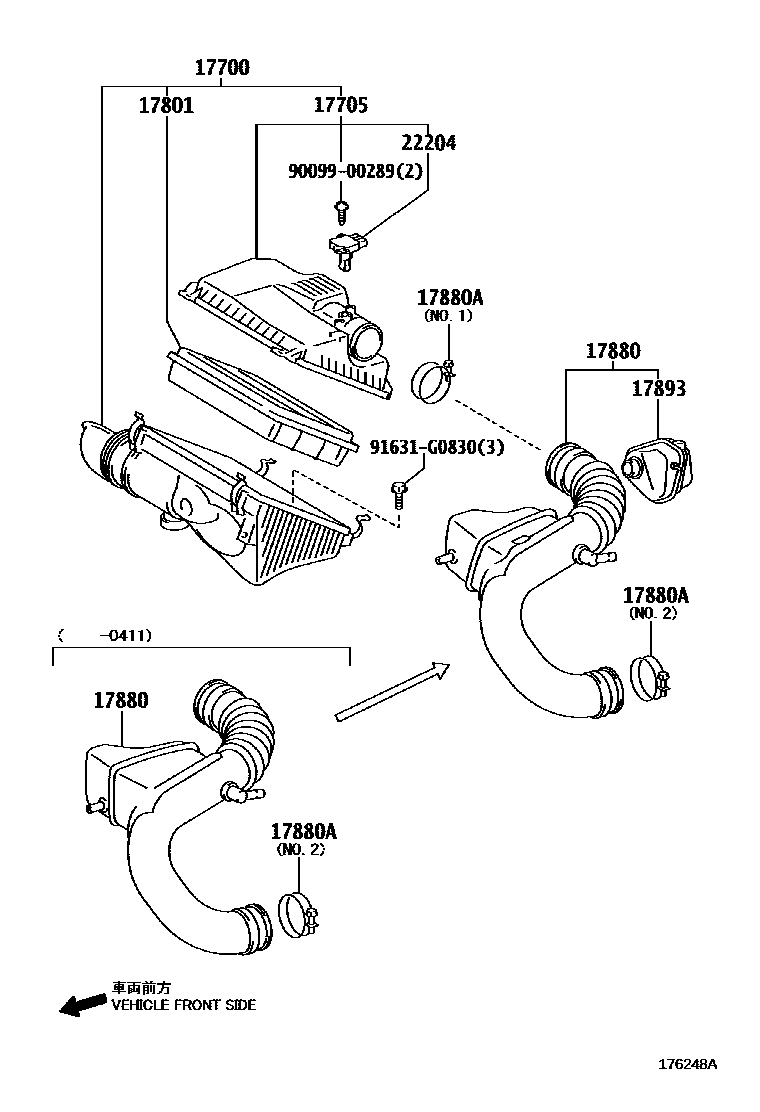

Parts diagram
17700CLEANER ASSY, AIR
17700-50250
17700-50251
17705CAP SUB-ASSY, AIR CLEANER
17705-50160
17705-50161
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-50040
17880HOSE ASSY, AIR CLEANER
17880-50060
17880-50061
96111-30880
96111-30930
96111-30950
96111-30980
17880ACLAMP, HOSE
17893RESONATOR, INTAKE AIR
17893-50060
22204METER SUB-ASSY, INTAKE AIR FLOW
22204-75020
22204-75030
9009900289
90099-00289
91631G0830
91631-G0830

9 parts on this diagram · 1 diagram in section

AIR CLEANER for Toyota LEXUS GX470

This section contains 9 genuine Toyota parts for the AIR CLEANER system of the Toyota LEXUS GX470. Key components include: CLEANER ASSY, AIR, CAP SUB-ASSY, AIR CLEANER, ELEMENT SUB-ASSY, AIR CLEANER FILTER, HOSE ASSY, AIR CLEANER, CLAMP, HOSE.
