V-BELT

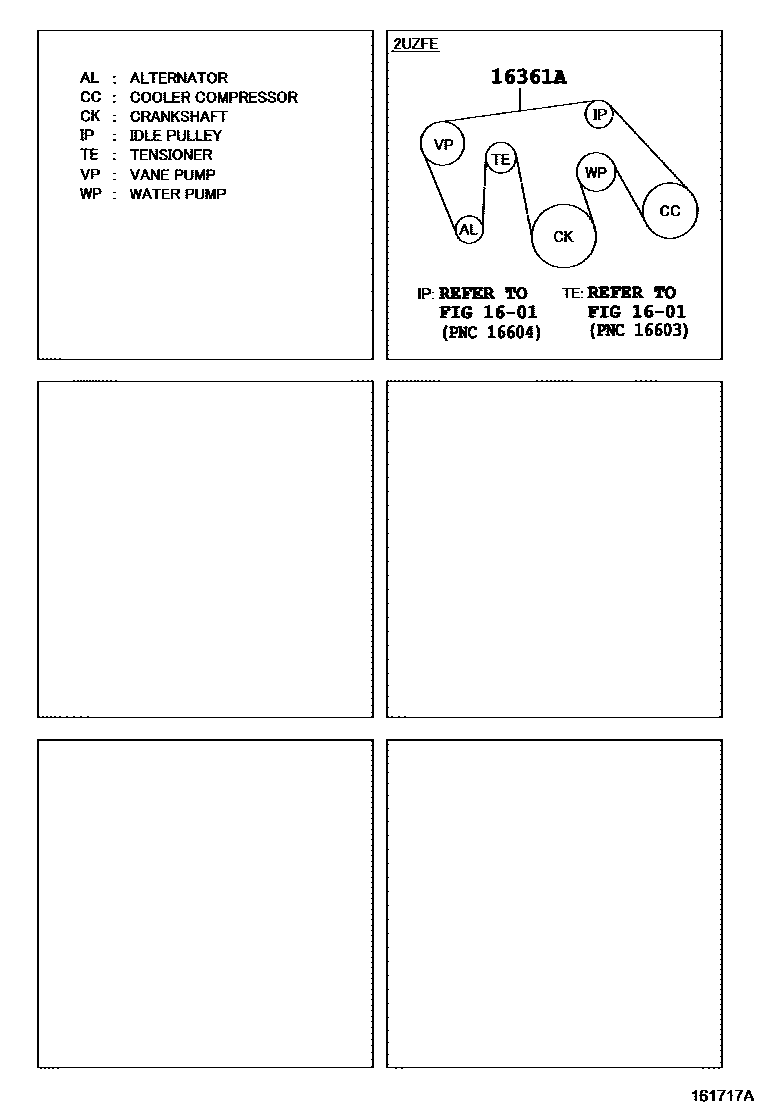

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02463i200211-200401

main90916-02585i200402-200908

2 parts on this diagram · 1 diagram in section
