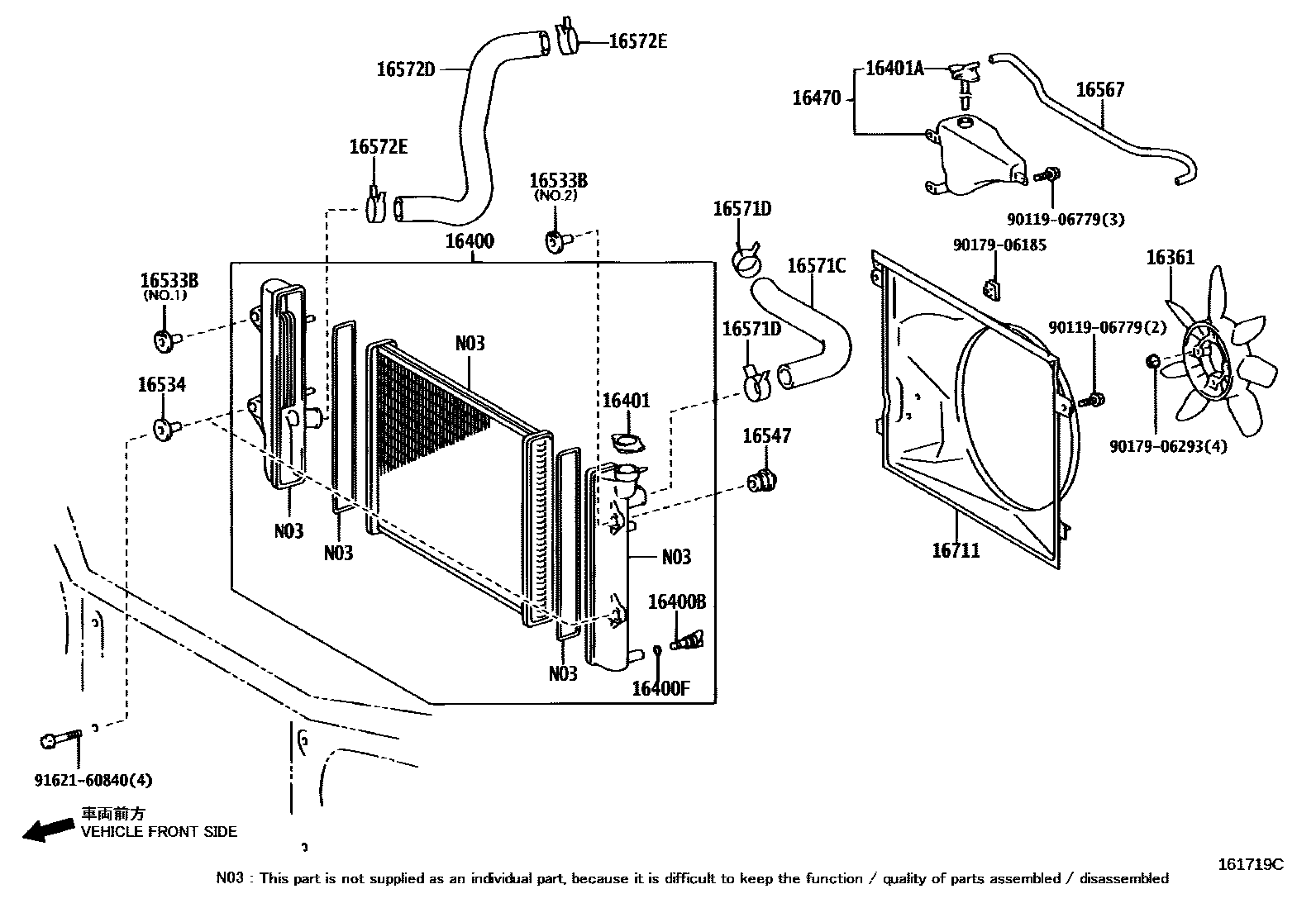

Toyota LEXUS GX470 — RADIATOR & WATER OUTLET
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
16470TANK ASSY, RADIATOR RESERVE
16533BSUPPORT, RADIATOR, NO.1
16534SUPPORT, RADIATOR, NO.2
16547BUSH, RADIATOR SUPPORT, NO.1
16567HOSE(FOR RADIATOR RESERVE TANK)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16711SHROUD, FAN
9011906779
9017906185
9017906293
9162160840
20 parts on this diagram · 2 diagrams in section
RADIATOR & WATER OUTLET for Toyota LEXUS GX470
This section contains 44 genuine Toyota parts for the RADIATOR & WATER OUTLET system of the Toyota LEXUS GX470. Key components include: ENGINE OIL COOLER, PIPE SUB-ASSY, WATER BY-PASS, HOSE, WATER BY-PASS, CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE), HOSE, WATER BY-PASS, NO.7.
