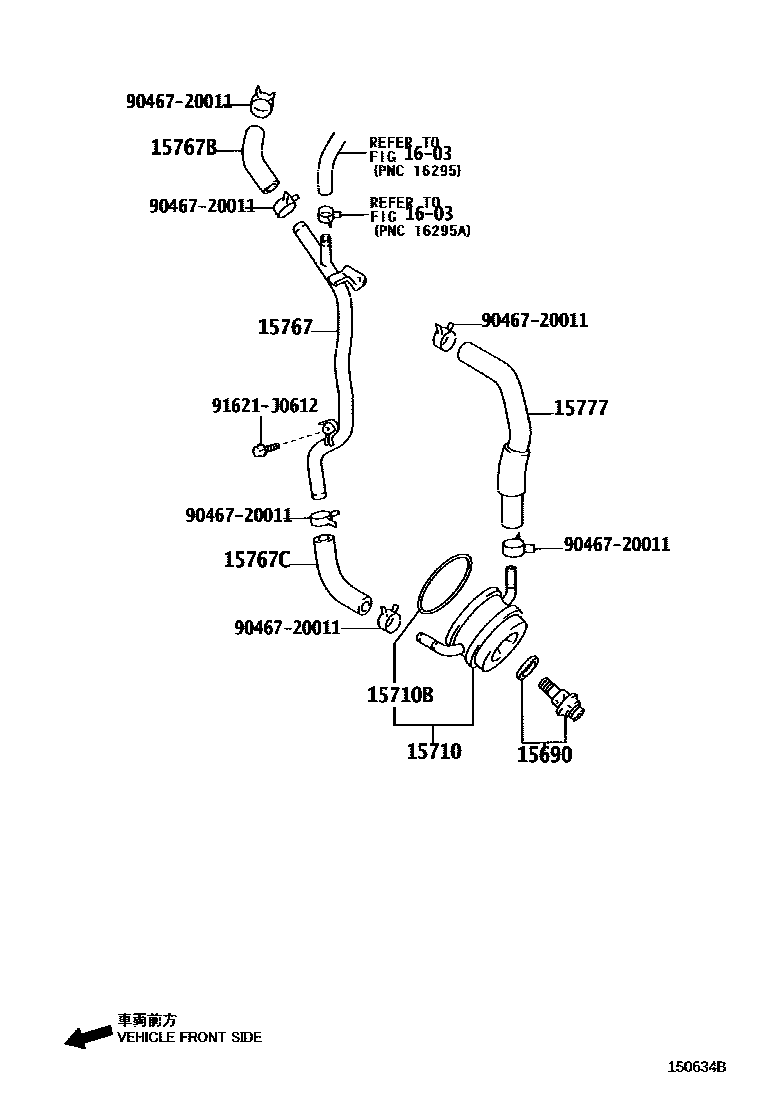

ENGINE OIL COOLER

15690VALVE ASSY, OIL COOLER RELIEF

main15695-50010i2UZFE..UZJ120200211

15710COOLER ASSY, OIL

main15710-50070i2UZFE..UZJ120200211

15710BRING, O(FOR OIL COOLER)

main90301-67004i2UZFE..UZJ120200211

15767PIPE, OIL COOLER

main15767-50110i2UZFE..UZJ120200211-200404

main15767-50111i2UZFE..UZJ120200404

15767BHOSE, WATER BY-PASS, NO.4

main16281-50030i2UZFE..UZJ120200211

15767CHOSE, WATER BY-PASS, NO.5

main16282-50070i2UZFE..UZJ120200211

15777HOSE, OIL COOLER

main15777-50060i2UZFE..UZJ120200211

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9046720011

main90467-20011

91621J0612

main91621-J0612

10 parts on this diagram · 1 diagram in section
