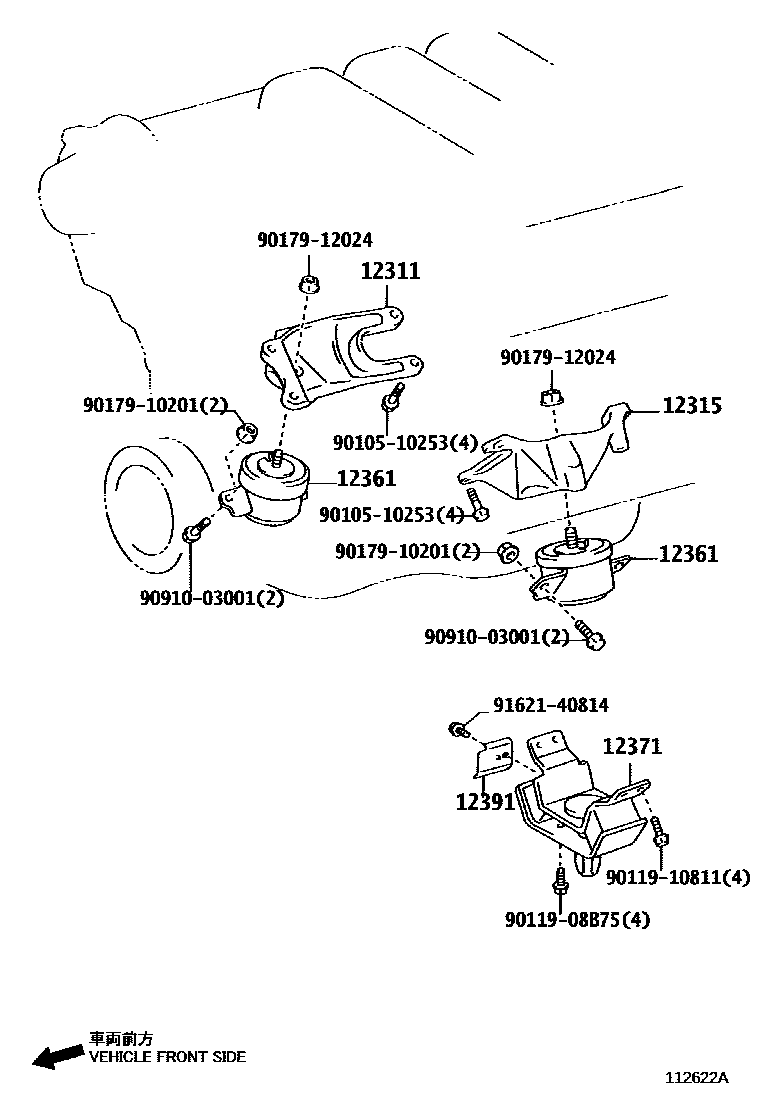

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-50140i2UZFE..UZJ120200211

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-50110i2UZFE..UZJ120200211

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-50190×2i2UZFE..UZJ120200211

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-50150i2UZFE..UZJ120200211

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-50070i2UZFE..UZJ120200211-200411

main12391-50080i2UZFE..UZJ120200411

9010510253

main90105-10253

9011908B75

main90119-08B75

9011910811

main90119-10811

9017910201

main90179-10201

9017912024

main90179-12024

9091003001

main90910-03001

9162140814

main91621-40814

12 parts on this diagram · 1 diagram in section
