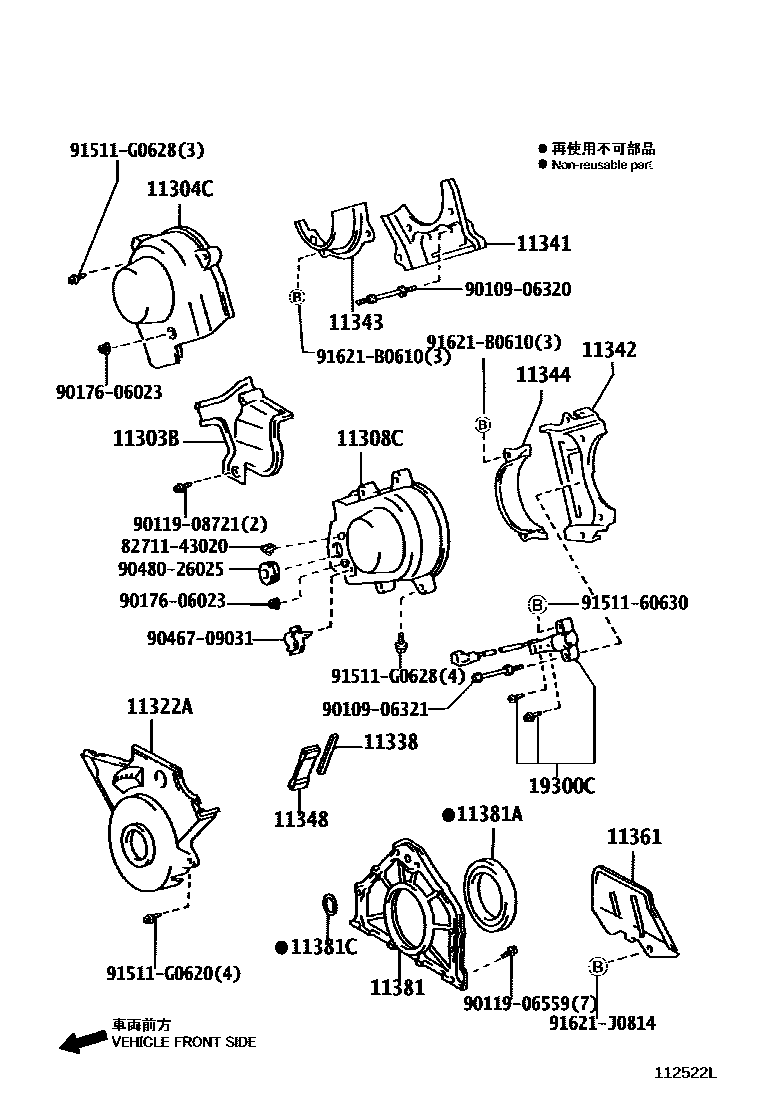

TIMING GEAR COVER & REAR END PLATE

11303BCOVER SUB-ASSY, TIMING BELT, NO.2

main11303-50030i2UZFE..UZJ120200211

11304CCOVER SUB-ASSY, TIMING BELT, NO.3 RH

main11304-50020i2UZFE..UZJ120200211

11308CCOVER SUB-ASSY, TIMING BELT, NO.3 LH

main11308-50030i2UZFE..UZJ120200211

11322ACOVER, TIMING BELT, NO.1

main11302-50040i2UZFE..UZJ120200211

11338GASKET, TIMING CHAIN COVER, NO.2

main11338-50010i2UZFE..UZJ120200211

11341PLATE, TIMING BELT, REAR RH

main11341-50020i2UZFE..UZJ120200411

main11341-50030i2UZFE..UZJ120200211-200411

11342PLATE, TIMING BELT, REAR LH

main11342-50021i2UZFE..UZJ120200411

main11342-50030i2UZFE..UZJ120200211-200411

11343PLATE, TIMING BELT, REAR RH NO.2

main11343-50020i2UZFE..UZJ120200411

11344PLATE, TIMING BELT, REAR LH NO.2

main11344-50020i2UZFE..UZJ120200411

11348SPACER, TIMING GEAR COVER

main11348-50011i2UZFE..UZJ120200211

11361COVER, FLYWHEEL HOUSING UNDER

main11361-50030i2UZFE..UZJ120200211

11381RETAINER, ENGINE REAR OIL SEAL

main11381-50021i2UZFE..UZJ120200211

11381ASEAL, ENGINE REAR OIL

main90311-95012i2UZFE..UZJ120200211

11381CRING, O(FOR OIL SEAL RETAINER)

main96721-24025i2UZFE..UZJ120200211

19300CSENSOR ASSY, CAM POSITION

main19300-50010i2UZFE..UZJ120200411-200610

main19300-50011i2UZFE..UZJ120200610

main19300-50020i2UZFE..UZJ120200211-200411

8271143020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-43020

9010906320

main90109-06320

9010906321

main90109-06321

9011906559

main90119-06559

9011908721

main90119-08721

9017606023

main90176-06023

9046709031

main90467-09031

9048026025

main90480-26025

9151160630

main91511-60630

91511G0620

main91511-G0620

91511G0628

main91511-G0628

91621B0610

main91621-B0610

91621J0814

main91621-J0814

28 parts on this diagram · 1 diagram in section
