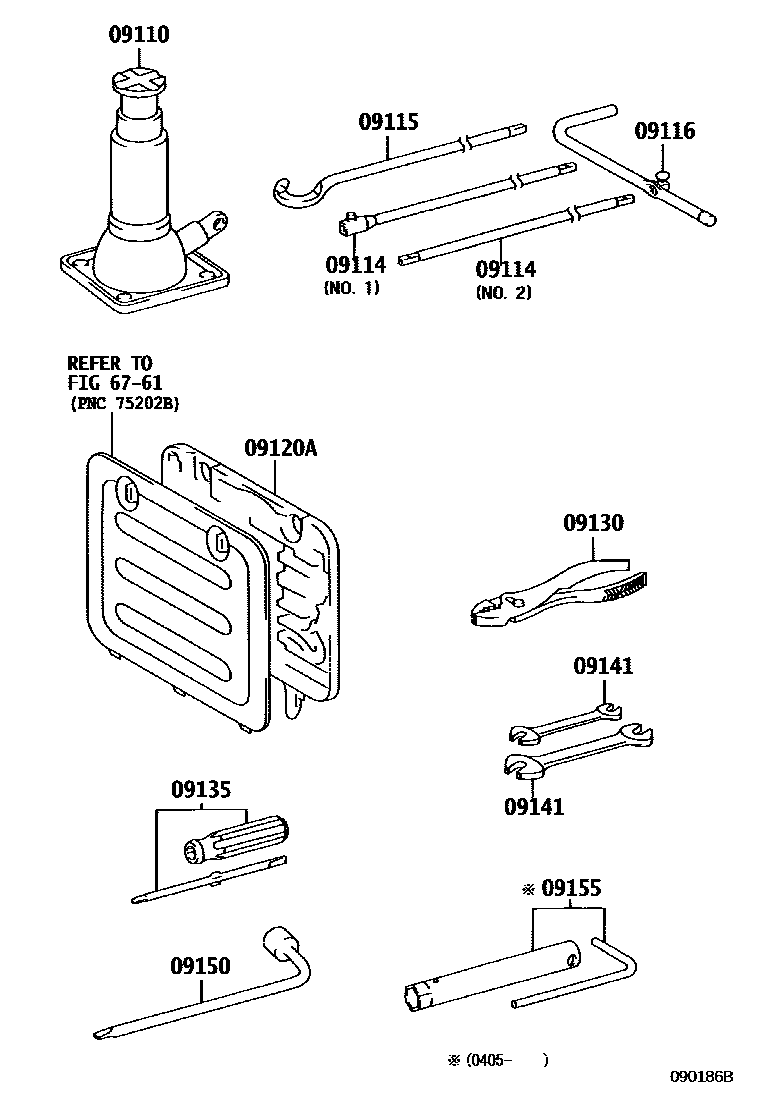

STANDARD TOOL

09110JACK ASSY

main09111-35180iUZJ120200211-200405

sub09111-35181

main09111-35181iUZJ120200406-200703

sub09111-35182

main09111-35182iUZJ120200704-200908

sub09111-60140

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iUZJ120200211

NO.2

main09114-35050iUZJ120200211

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iUZJ120200211

09116LEVER, JACK HANDLE

main09116-35080iUZJ120200211

sub09116-60020

09120ACASE, TOOL

main09120-60200iUZJ120200211

09130PLIERS

main09130-50030iUZJ120200211

09135DRIVER, SCREW

main09135-50040iUZJ120200211

09141SPANNER

main09141-50050iUZJ120200211

8 X 10

main09141-50060iUZJ120200211

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35070iUZJ120200211-200908

09155WRENCH, SPARK PLUG

main09155-74010iUZJ120200405-200908

6761

11 parts on this diagram · 1 diagram in section
