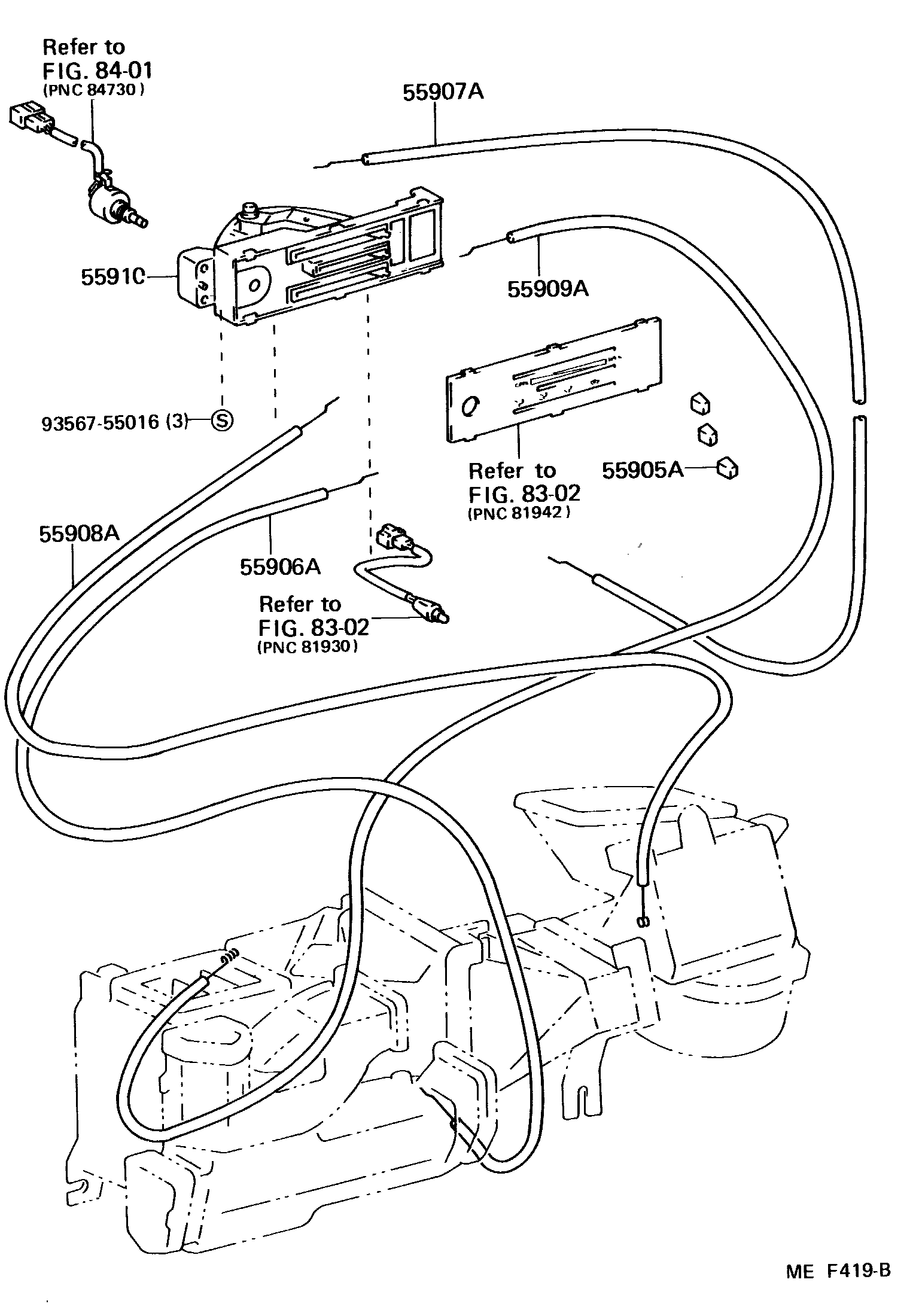

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55905AKNOB, HEATER CONTROL
DEF-VENT & WARM-COOL
FRESH-RECIRC
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55907ACABLE SUB-ASSY, WATER VALVE CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
8302INDICATOR
8401SWITCH & RELAY & COMPUTER
9356755016
main93567-55016
9 parts on this diagram · 2 diagrams in section
