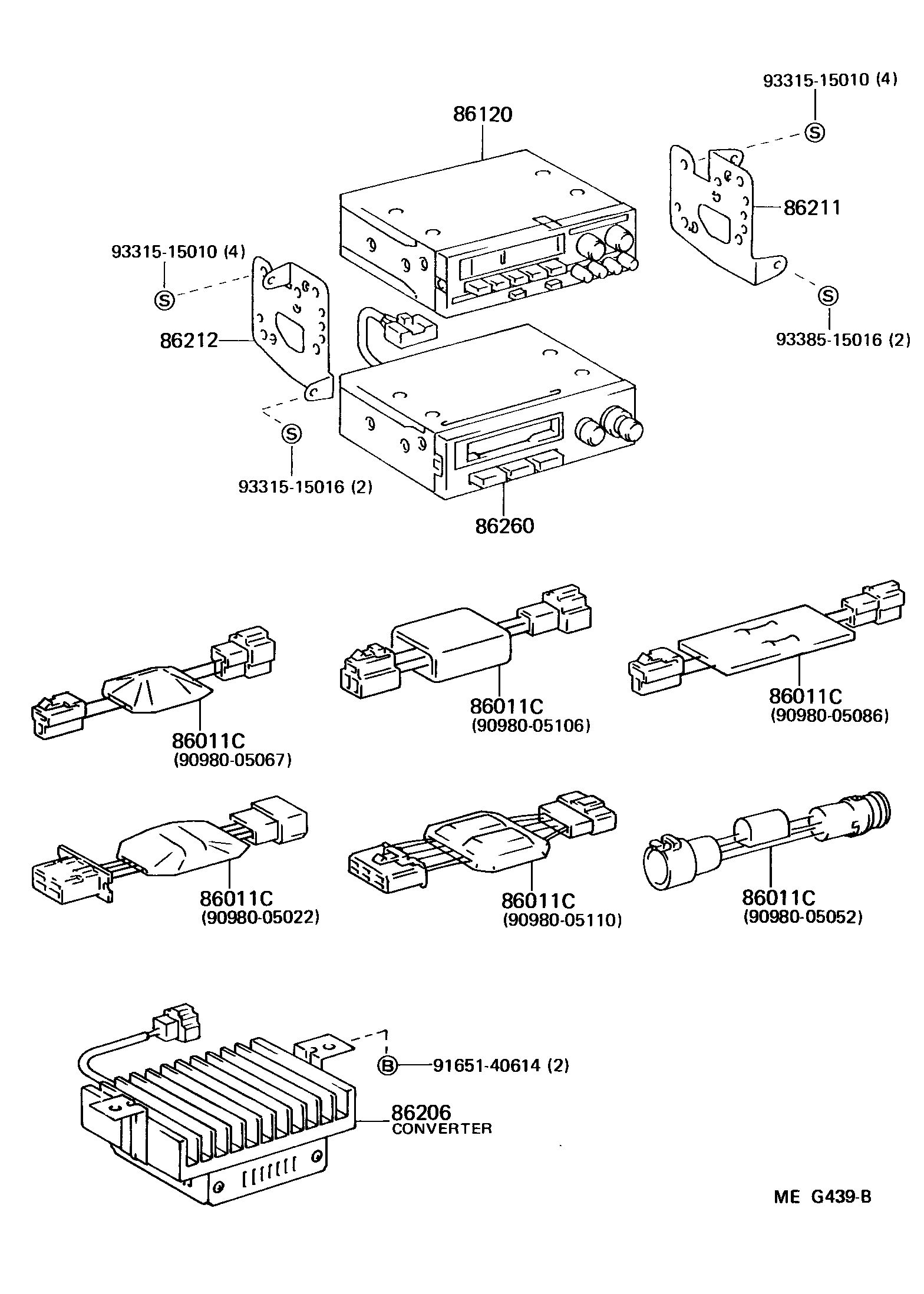

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011CFILTER, NOISE

main90980-05022iBJ70198411-198707

W/O AM/FM RADIO,WIPER MOTOR

main90980-05052iBJ70198411-198707

W/AM/FM RADIO,WIPER MOTOR

main90980-05067iBJ70198411-198707

STOP LAMP SWITCH

main90980-05086iBJ70198411-198707

HEATER

main90980-05106iBJ70198411-198707

OIL PRESSURE SWITCH

main90980-05110iBJ70198411-198707

REGULATOR

86120RECEIVER ASSY, RADIO

main86120-17010iBJ70198411-198510

AM

main86120-17050iBJ70198411-198509

AM/FM

main86120-17051iBJ70198509-198608

AM/FM

main86120-90K05iBJ70198608-198707

FUJITSU TEN,AM/FM MPX

86206CONVERTER SUB-ASSY, VOLTAGE

main86206-90K00iBJ70198510-198707

86211BRACKET, RADIO, NO.1

main86211-90K00iBJ70198411-198707

86212BRACKET, RADIO, NO.2

main86212-90K00iBJ70198411-198707

86260TAPE PLAYER ASSY

main86260-16140iBJ70198608-198707

TEN

main86260-17010iBJ70198608-198612

MATSUSHITA

main86260-17011iBJ70198612-198707

MATSUSHITA

main86260-19045iBJ70198411-198608

TEN

main86260-90K01iBJ70198411-198608

MATSUSHITA

9165140614

main91651-40614

9331515010

main93315-15010

9331515016

main93315-15016

9338515016

main93385-15016

10 parts on this diagram · 1 diagram in section
