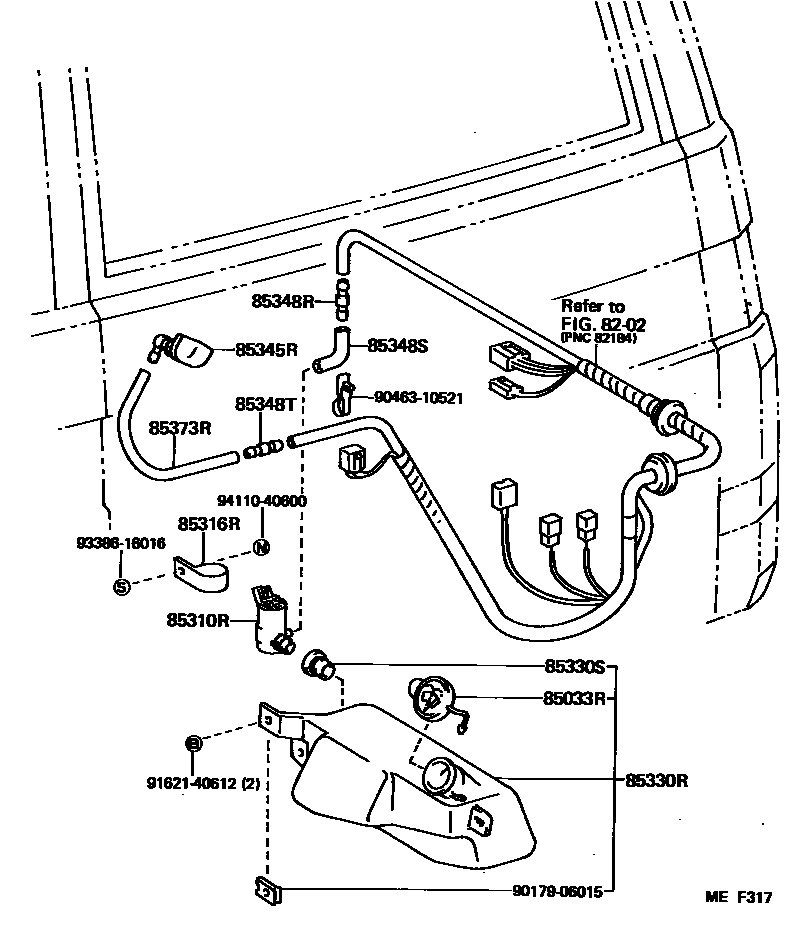

REAR WASHER

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85033-36120iBJ70198411-198707

85310RMOTOR ASSY, REAR WASHER

main85310-22080iBJ70198411-198510

main85310-90B00iBJ70198510-198707

85316RSUPPORT, REAR WASHER MOTOR

main85316-23010iBJ70198411-198707

85330RJAR ASSY, REAR WASHER

main85330-90K03iBJ70198411-198707

85330SBUSH, REAR WASHER JAR

main90099-32089iBJ70198411-198707

85345RNOZZLE, REAR WASHER

main85035-90K02iBJ70198411-198707

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201iBJ70198411-198510

main85355-89122iBJ70198510-198707

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iBJ70198705-198707

main85355-20070iBJ70198411-198705

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-87201iBJ70198411-198510

main85355-89122iBJ70198510-198707

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06013iBJ70198411-198707

L=1450(*H,L=230)

9017906015

main90179-06015

9046310521

main90463-10521

9162140612

main91621-40612

9338616016

main93386-16016

9411040600

main94110-40600

16 parts on this diagram · 1 diagram in section
