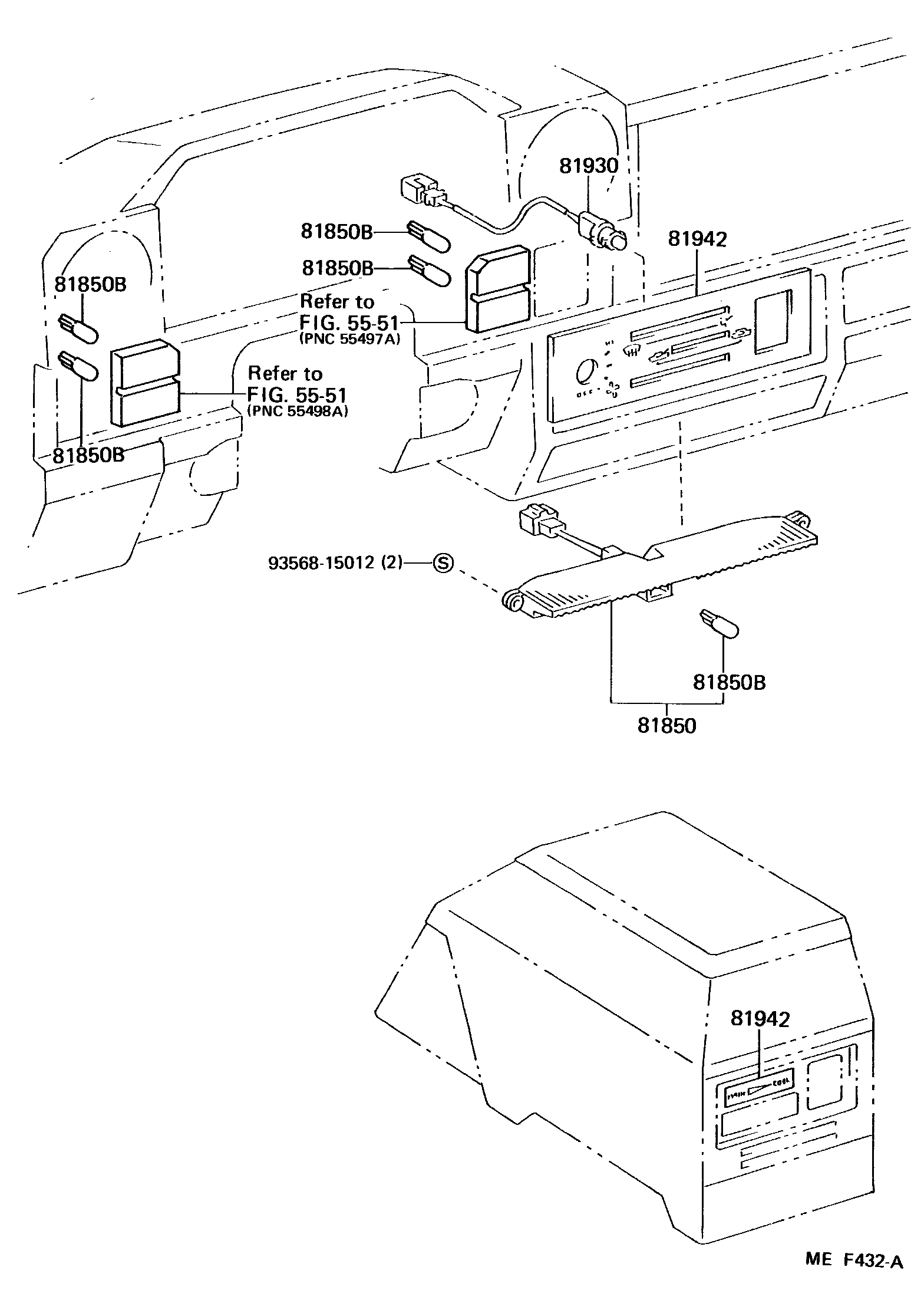

INDICATOR

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

81850LAMP ASSY, INDICATOR

main81850-90K00iBJ70198411-198510

main81850-90K06iBJ70198510-198707

81850BBULB, INDICATOR LAMP

main99132-12034×5iBJ70198411-198510

12V 3.4W,12V 3.4W

main99134-12030×4iBJ70198510-198707

24V 3W,24V 3W

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-90K00iBJ70198411-198510

main81930-90K01iBJ70198510-198707

81942SHEET, HEATER CONTROL NAME

main55519-90K01iBJ70198411-198707

main86995-90K00iBJ70198411-198707

RR HEATER

9356815012

main93568-15012

6 parts on this diagram · 1 diagram in section
