Toyota LAND CRUISER — METER

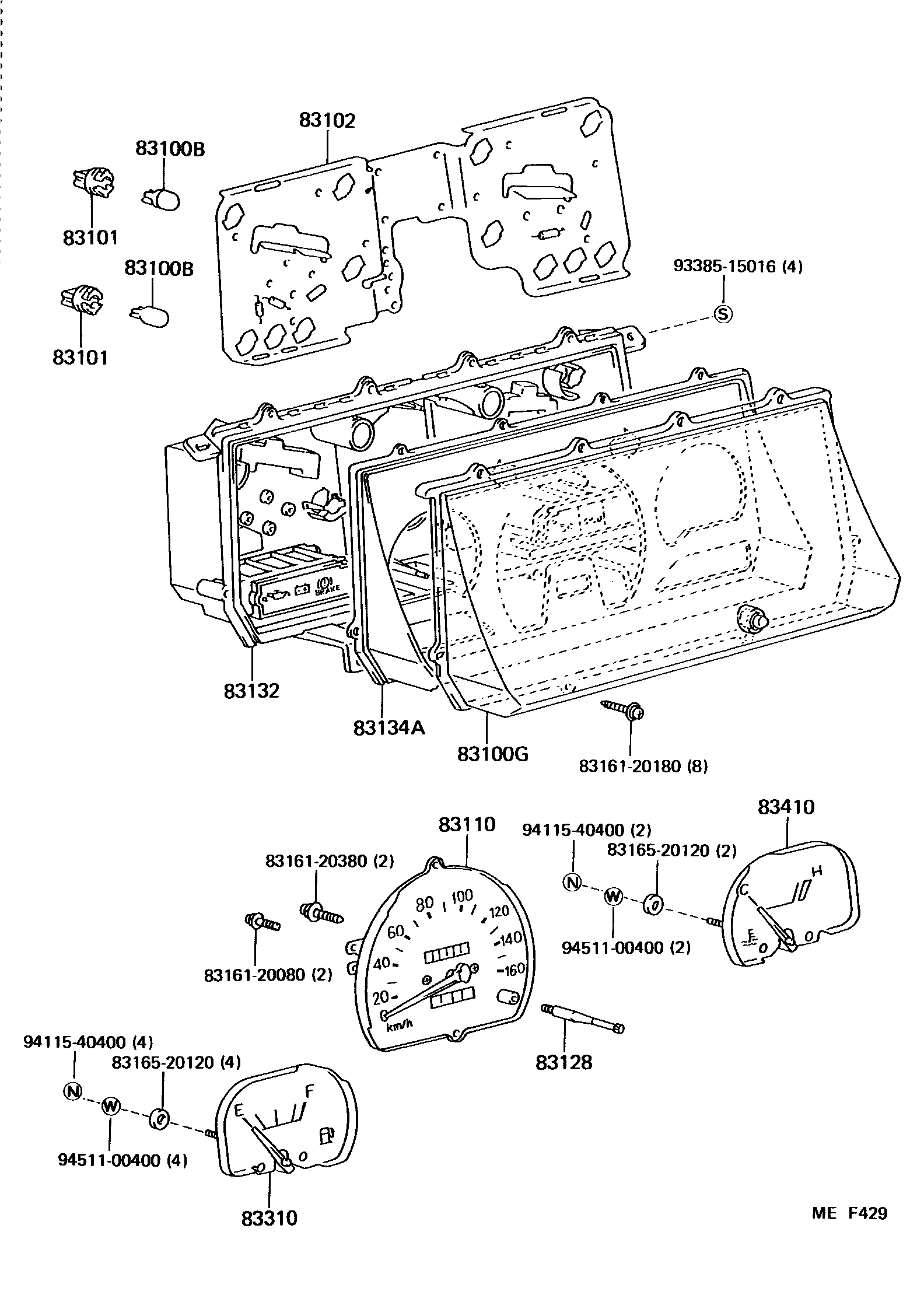

Parts diagram

83100BBULB, COMBINATION METER, NO.1

83100GGLASS, COMBINATION METER

83101SOCKET SUB-ASSY, COMBINATION METER BULB

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

83110SPEEDOMETER ASSY

83128KNOB, TRIP COUNTER

83132CASE, COMBINATION METER

83134ACOVER, COMBINATION GAGE

83310GAGE ASSY, FUEL RECEIVER

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

8316120080CASE, COMBINATION METER MIRROR, NO.1

8316120180CASE, COMBINATION METER MIRROR, NO.1

8316120380CASE, COMBINATION METER MIRROR, NO.1

8316520120MIRROR, COMBINATION METER, NO.2

9338515016

9411540400

9451100400

17 parts on this diagram · 3 diagrams in section

METER for Toyota LAND CRUISER

This section contains 43 genuine Toyota parts for the METER system of the Toyota LAND CRUISER. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1.
