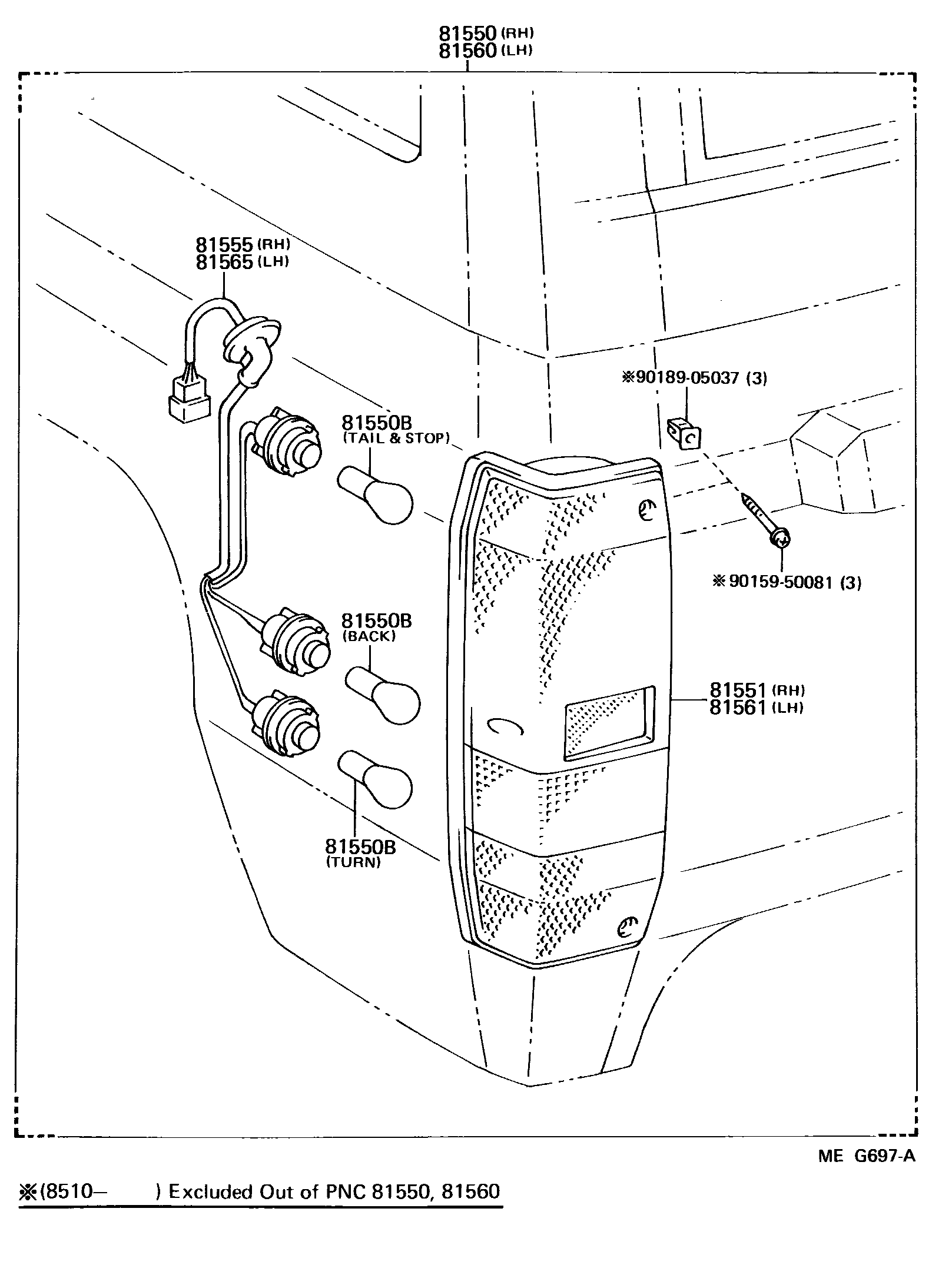

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-69125iBJ70198411-198510

main81550-90K16iBJ70198510-198707

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014×4iBJ70198510-198707

24V 21W,24V 21W(BACK & TURN)

main90981-16015×2iBJ70198510-198707

24V 21/5W,24V 21/5W(TAIL & STOP)

main99132-11270×4iBJ70198411-198510

12V 27W,12V 27W(BACK & TURN)

main99132-21270×2iBJ70198411-198510

12V 27/8W,12V 27/8W(TAIL & STOP)

81551LENS, REAR COMBINATION LAMP, RH

main81551-90K02iBJ70198411-198707

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-90K02iBJ70198411-198510

main81555-90K16iBJ70198510-198707

81560LAMP ASSY, REAR COMBINATION, LH

main81560-69125iBJ70198411-198510

main81560-90K16iBJ70198510-198707

81561LENS, REAR COMBINATION LAMP, LH

main81561-90K02iBJ70198411-198707

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-90K02iBJ70198411-198510

main81555-90K16iBJ70198510-198707

9015950081

main90159-50081

9018905037

main90189-05037

9 parts on this diagram · 1 diagram in section
