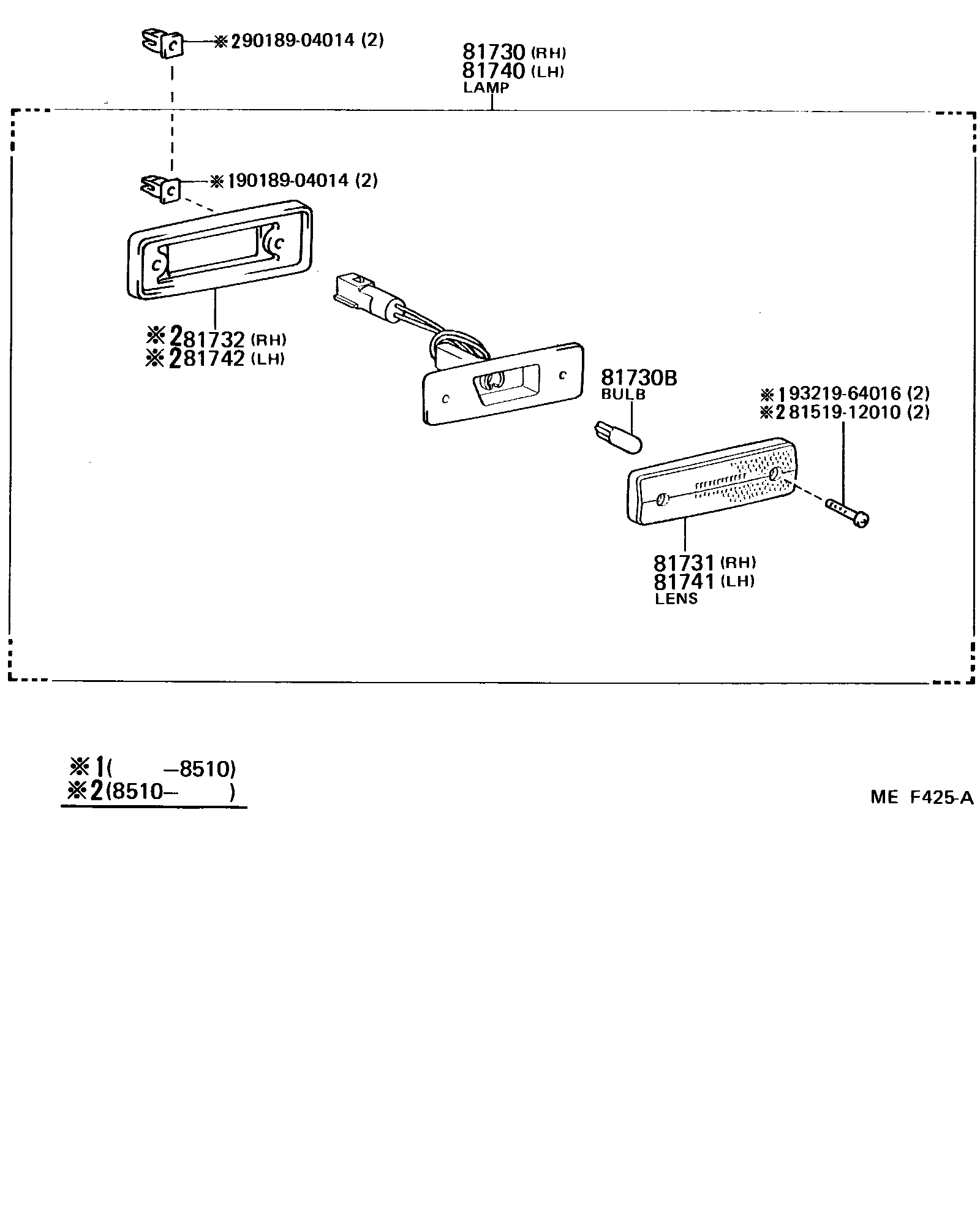

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-19305iBJ70198411-198510

main81730-90A01iBJ70198510-198707

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-11020×2iBJ70198411-198510

12V 3.8W,12V 3.8W

main90981-12015×2iBJ70198510-198707

24V 5W,24V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-14110iBJ70198411-198707

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-90A01iBJ70198510-198707

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-19285iBJ70198411-198510

main81740-90A01iBJ70198510-198707

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-14110iBJ70198411-198707

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81742-90A01iBJ70198510-198707

8151912010BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-12010

9018904014

main90189-04014

9321964016

main93219-64016

10 parts on this diagram · 1 diagram in section
