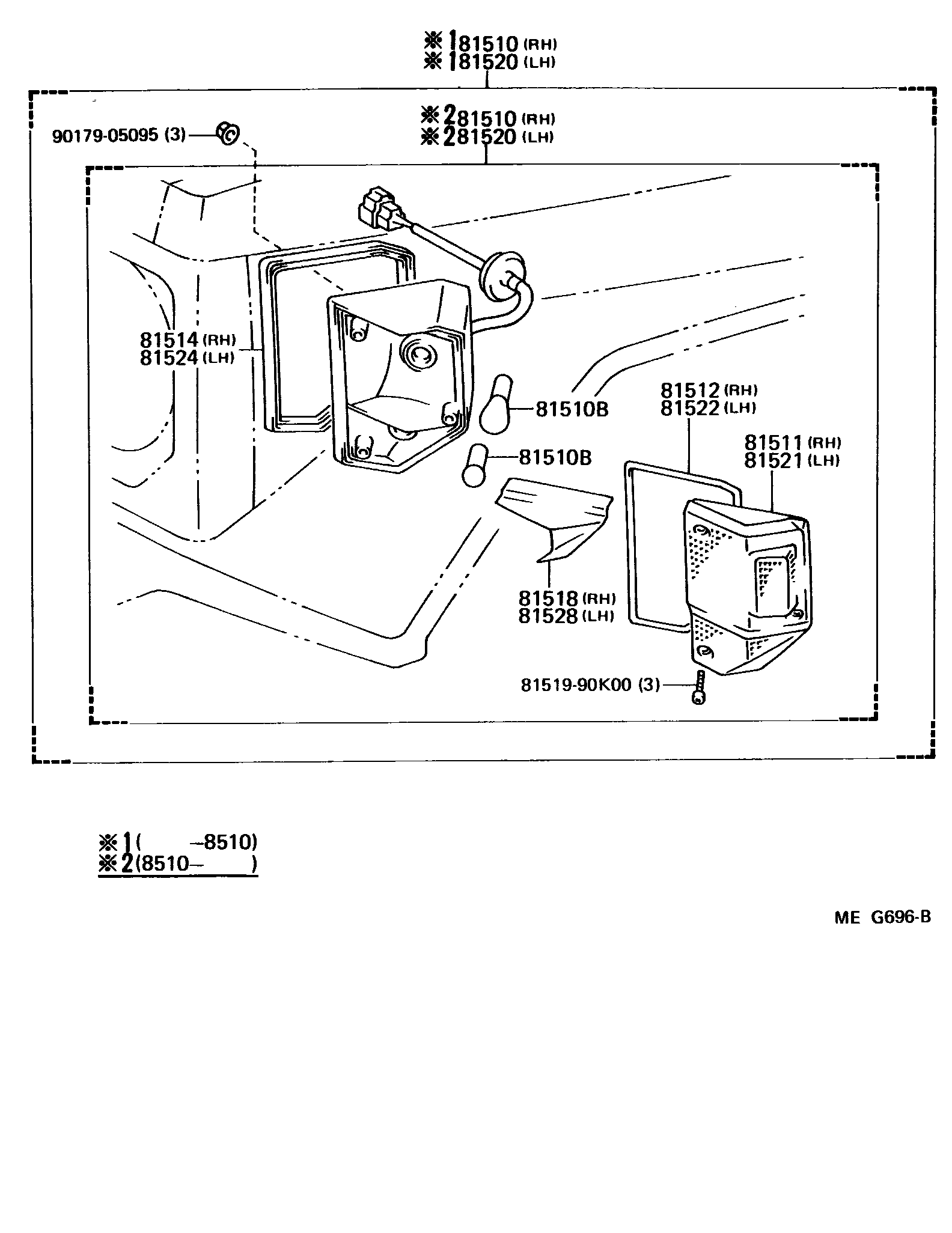

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-69245iBJ70198411-198510

main81510-90K09iBJ70198510-198707

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-16014×2iBJ70198510-198707

24V 21W,24V 21W(TURN)

main90981-16016×2iBJ70198510-198707

24V 5W,24V 5W(CLEARANCE)

main99132-11270×2iBJ70198411-198510

12V 27W,12V 27W(TURN)

main99132-12080×2iBJ70198411-198510

12V 8W,12V 8W(CLEARANCE)

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-90K01iBJ70198411-198707

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-90K01iBJ70198411-198707

81514GASKET, FRONT TURN SIGNAL LAMP BODY, RH

main81514-90K01iBJ70198411-198707

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-90K01iBJ70198411-198707

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-69245iBJ70198411-198510

main81520-90K09iBJ70198510-198707

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-90K01iBJ70198411-198707

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-90K01iBJ70198411-198707

81524GASKET, FRONT TURN SIGNAL LAMP BODY, LH

main81524-90K01iBJ70198411-198707

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81527-90K01iBJ70198411-198707

8151990K00BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-90K00

9017905095

main90179-05095

13 parts on this diagram · 1 diagram in section
