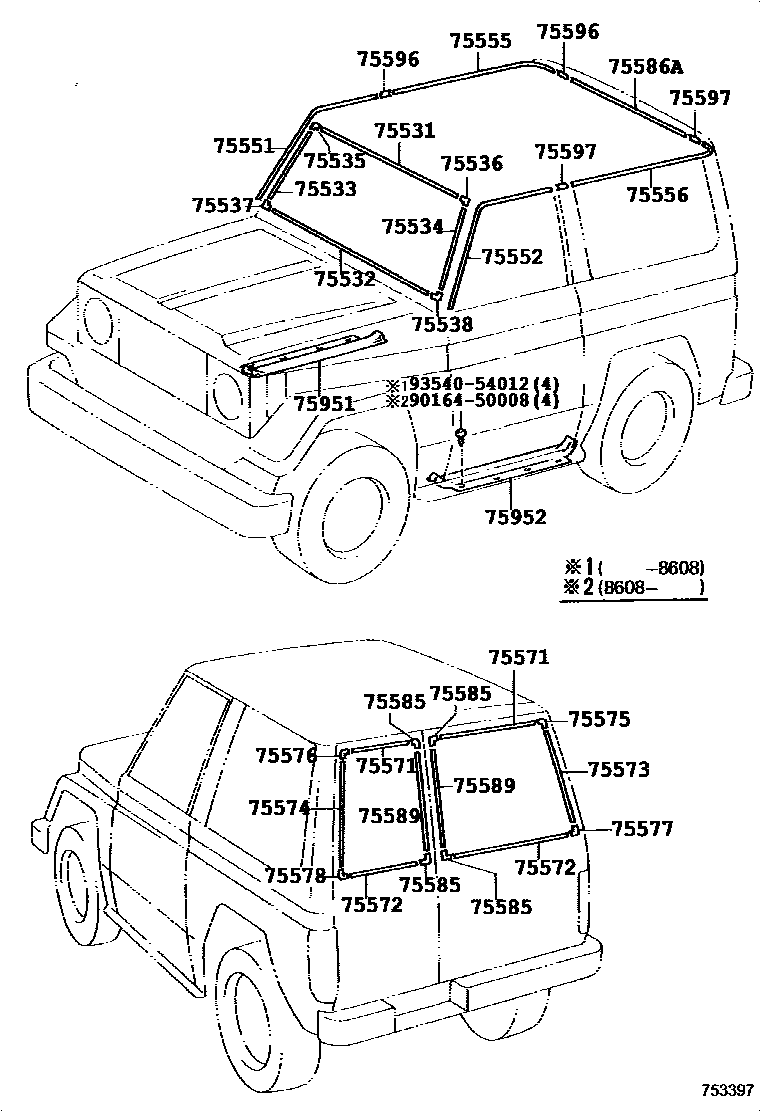

MOULDING
75531MOULDING, WINDSHIELD, OUTER UPPER
75532MOULDING, WINDSHIELD, LOWER
75533MOULDING, WINDSHIELD, OUTSIDE RH
75534MOULDING, WINDSHIELD, OUTSIDE LH
75535MOULDING, WINDSHIELD CORNER, UPPER RH
75536MOULDING, WINDSHIELD CORNER, UPPER LH
75537MOULDING, WINDSHIELD CORNER, LOWER RH
75538MOULDING, WINDSHIELD CORNER, LOWER LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75555MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75556MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
RH
LH
75572MOULDING, BACK WINDOW, LOWER
RH
LH
75573MOULDING, BACK WINDOW SIDE, RH
75574MOULDING, BACK WINDOW SIDE, LH
75575MOULDING, BACK WINDOW CORNER, UPPER RH
75576MOULDING, BACK WINDOW CORNER, UPPER LH
75577MOULDING, BACK WINDOW CORNER, LOWER RH
75578MOULDING, BACK WINDOW CORNER, LOWER LH
75585MOULDING, BACK WINDOW MOULDING JOINT, CENTER
75586AMOULDING, ROOF DRIP, REAR
75589MOULDING, BACK WINDOW OUTSIDE, CENTER
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
9016450008
main90164-50008
9354054012
main93540-54012
29 parts on this diagram · 1 diagram in section
