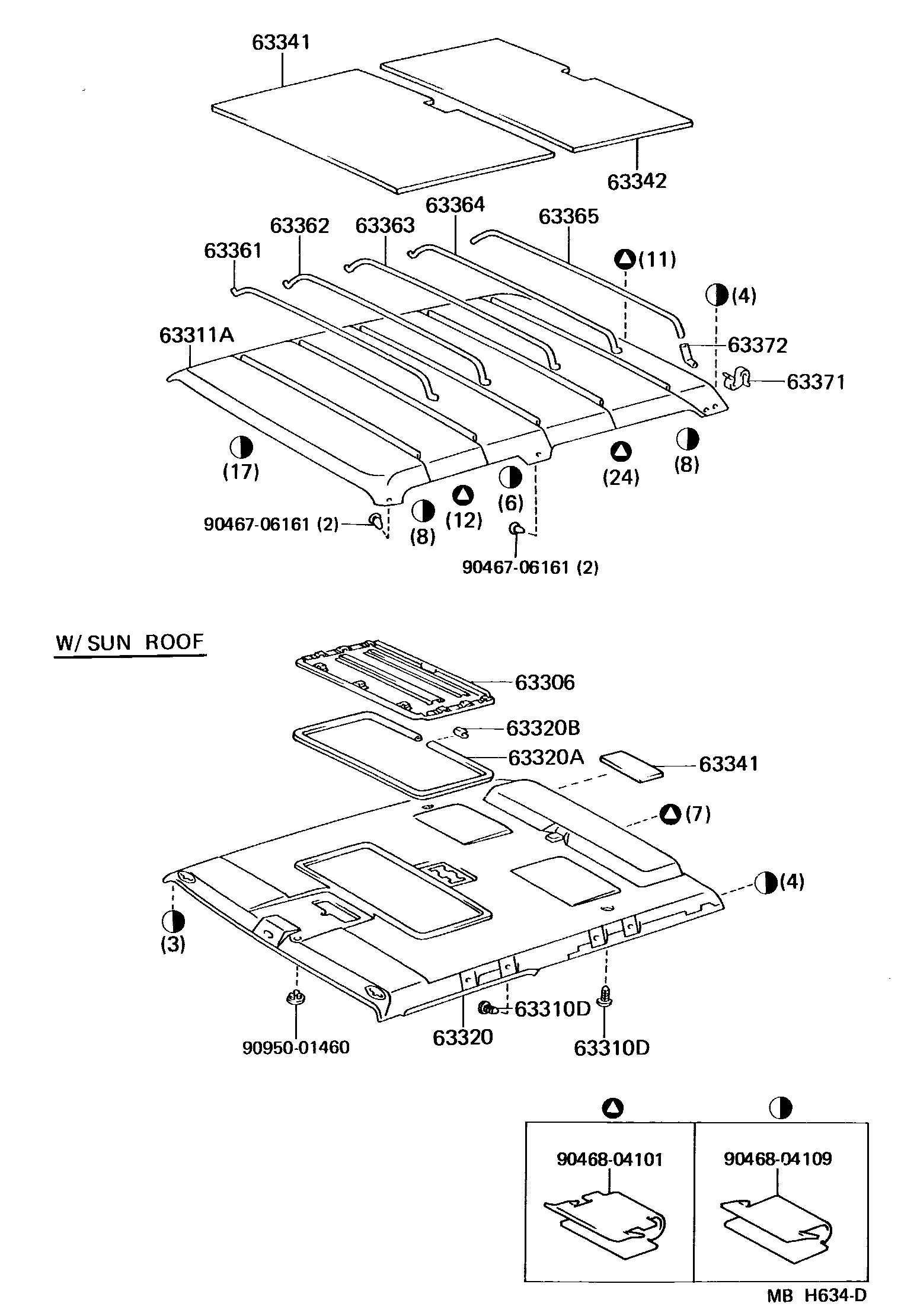

ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
IVORY,IVORY
63310DCLIP, ROOF HEADLINING
IVORY,IVORY
63311AHEADLINING, ROOF NO.1
IVORY,IVORY
63320HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF
W/SUN ROOF,IVORY,IVORY
W/SUN ROOF,IVORY,IVORY
W/SUN ROOF,IVORY,IVORY
63320AMOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM
63320BJOINT, SUN ROOF OPENING TRIM
63341PAD, ROOF SILENCER, NO.1
W/O SUN ROOF
W/SUN ROOF
63342PAD, ROOF SILENCER, NO.2
63361SUPPORT, ROOF HEADLINING, NO.1
L=1275
L=1272
L=1269
63362SUPPORT, ROOF HEADLINING, NO.2
L=1262
L=1265
L=1268
63363SUPPORT, ROOF HEADLINING, NO.3
L=1262
L=1265
L=1268
63364SUPPORT, ROOF HEADLINING, NO.4
L=1262
L=1265
L=1268
63365SUPPORT, ROOF HEADLINING, NO.5
L=1233
L=1236
L=1239
63371HOOK, ROOF HEADLINING SUPPORT
63372RETAINER, HEADLINING SUPPORT
9046706161
main90467-06161
9046804101
main90468-04101
9046804109
main90468-04109
9095001460
main90950-01460
19 parts on this diagram · 1 diagram in section
