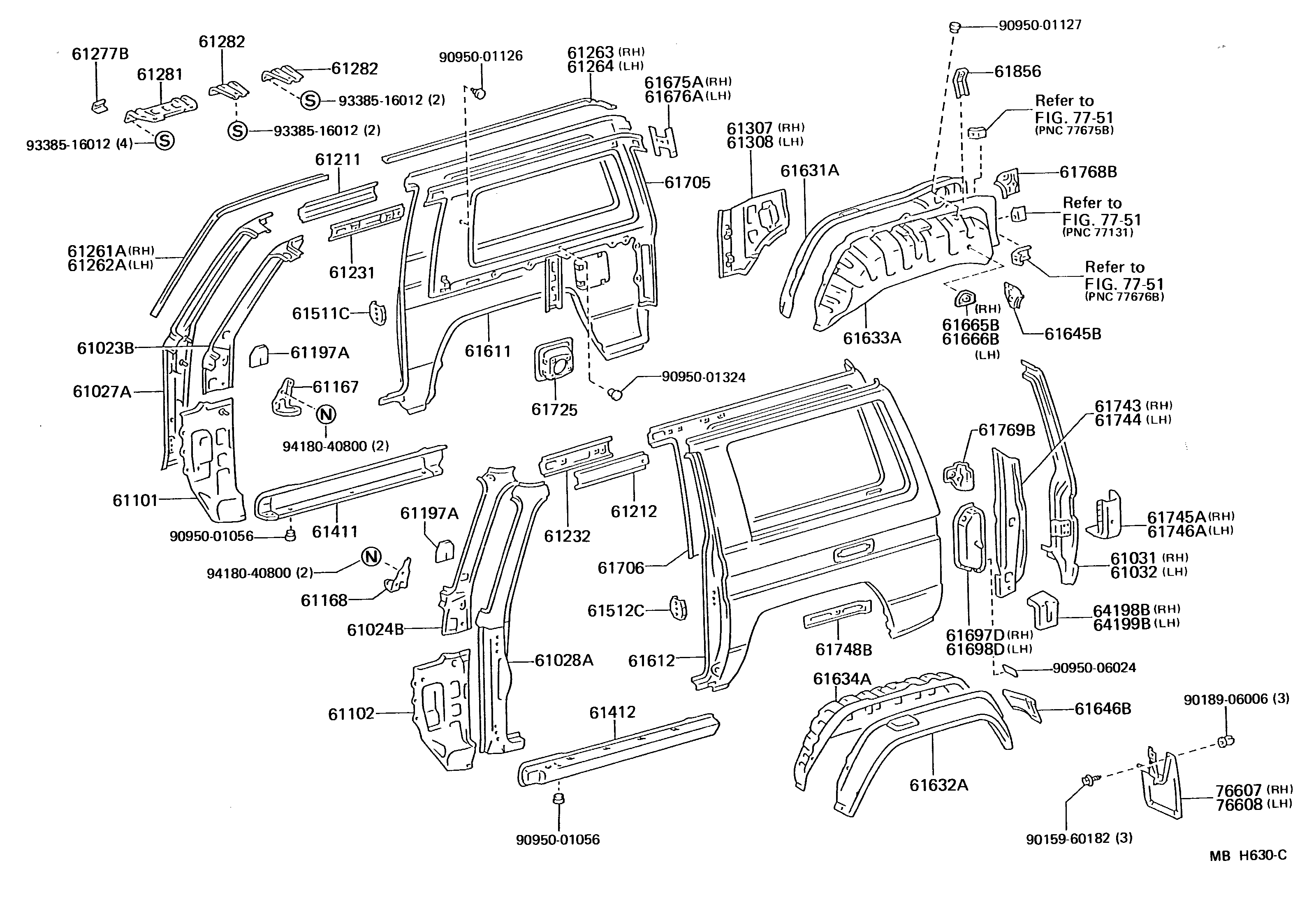

SIDE MEMBER
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH
61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
W/RADIO
61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61197ACOVER, FRONT PILLAR, RH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61262ACHANNEL, ROOF DRIP SIDE, FRONT LH
61263CHANNEL, ROOF DRIP, REAR RH
61264CHANNEL, ROOF DRIP, REAR LH
61277BJOINT, ROOF DRIP CHANNEL
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
RH
LH
61282BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.2
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61511CREINFORCEMENT, QUARTER LOCK PILLAR, RH
61512CREINFORCEMENT, QUARTER LOCK PILLAR, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH
61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH
61676AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
W/SUN ROOF
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
W/SUN ROOF
61725BOX, FUEL INLET
W/FUEL FILLER DOOR OPENER
61743REINFORCEMENT, BACK DOOR OPENING, INNER RH
61744REINFORCEMENT, BACK DOOR OPENING, INNER LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61748BREINFORCEMENT, ROOF SIDE, INNER REAR, LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
61856BRACKET, REAR WASHER TANK, LOWER
64198BBRACKET, LOWER BACK RAIL, INNER SIDE RH
64199BBRACKET, LOWER BACK RAIL, INNER SIDE LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
7751FUEL TANK & TUBE
9015960182
main90159-60182
9018906006
main90189-06006
9095001056
main90950-01056
9095001126
main90950-01126
9095001127
main90950-01127
9095001324
main90950-01324
9095006024
main90950-06024
9338516012
main93385-16012
9418040800
main94180-40800
67 parts on this diagram · 1 diagram in section
