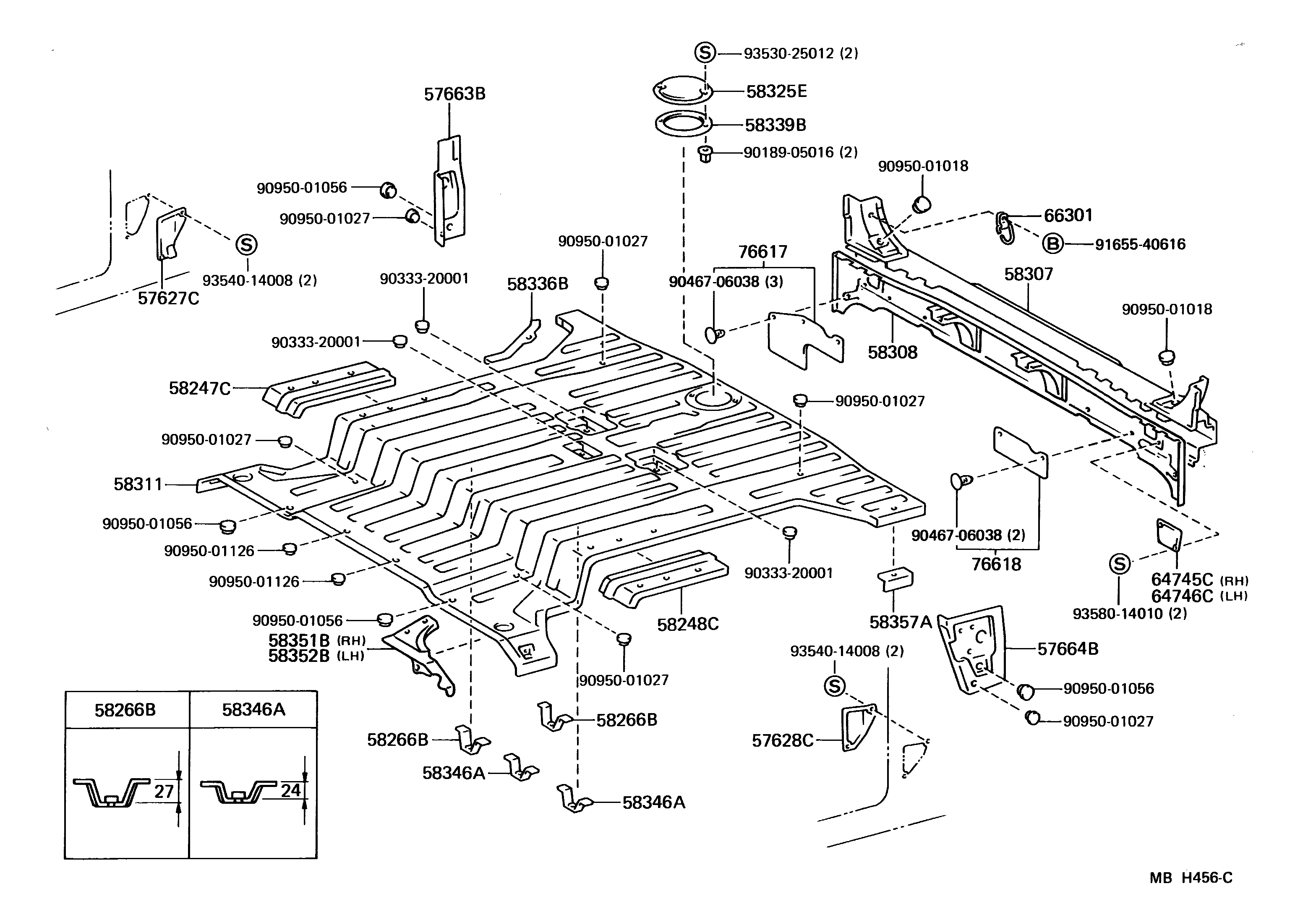

REAR FLOOR PANEL & REAR FLOOR MEMBER
57627CCOVER, REAR FLOOR SIDE MEMBER, RH
57628CCOVER, REAR FLOOR SIDE MEMBER, LH
57663BPANEL, REAR FLOOR SIDE, REAR RH
57664BPANEL, REAR FLOOR SIDE, REAR LH
58247CREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58266BBRACKET, FUEL TUBE CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
W/ROPE HOOK
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58311PAN, REAR FLOOR
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58339BPACKING, REAR FLOOR SERVICE HOLE
58346ABRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58351BREINFORCEMENT, REAR FLOOR PANEL, RH
58352BREINFORCEMENT, REAR FLOOR PANEL, LH
58357AREINFORCEMENT, JACK CARRIER
64745CCOVER, LOWER BACK SERVICE HOLE, RH
64746CCOVER, LOWER BACK SERVICE HOLE, LH
76617MUDGUARD, LOWER BACK PANEL, FRONT RH
76618MUDGUARD, LOWER BACK PANEL, FRONT LH
9018905016
main90189-05016
9033320001
main90333-20001
9046706038
main90467-06038
9095001018
main90950-01018
9095001027
main90950-01027
9095001056
main90950-01056
9095001126
main90950-01126
9165540616
main91655-40616
9353025012
main93530-25012
9354014008
main93540-14008
9358014010
main93580-14010
33 parts on this diagram · 1 diagram in section
