FRONT FENDER APRON & DASH PANEL

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-90K03198411-198707

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-90K01198411-198707

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-90K01198411-198707

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-90K02198411-198707

53217ABRACE, HOOD LOCK SUPPORT

main53217-90K02198411-198707

53241AGUIDE, SIDE WIND, RH

main53241-90K00198411-198707

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-90K00198411-198707

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-09030198411-198707

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-90K08198411-198510

main53701-90K50198510-198707

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-90K12198411-198510

main53702-90K96198510-198707

53736SEAL, FRONT FENDER APRON, RH

main53737-90K01198411-198606

main53737-90K03198606-198707

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-08011198411-198510

main90467-08030198510-198707

53737BSEAL, FRONT FENDER APRON, LH

main53737-90K01198411-198606

main53737-90K03198606-198707

55101PANEL SUB-ASSY, DASH

main55101-90K82198411-198510

main55101-90K83198411-198510

main55101-90L59198510-198707

main55101-90L60198510-198707

55210INSULATOR ASSY, DASH PANEL

main55210-90K01198411-198510

main55210-90K03198510-198707

9010508002

main90105-08002

9011908184

main90119-08184

9046708008

main90467-08008

9046708029

main90467-08029

9095001060

main90950-01060

9095001184

main90950-01184

9095001189

main90950-01189

9095001448

main90950-01448

9095001449

main90950-01449

9095001450

main90950-01450

9161140812

main91611-40812

9165140814

main91651-40814

9166140612

main91661-40612

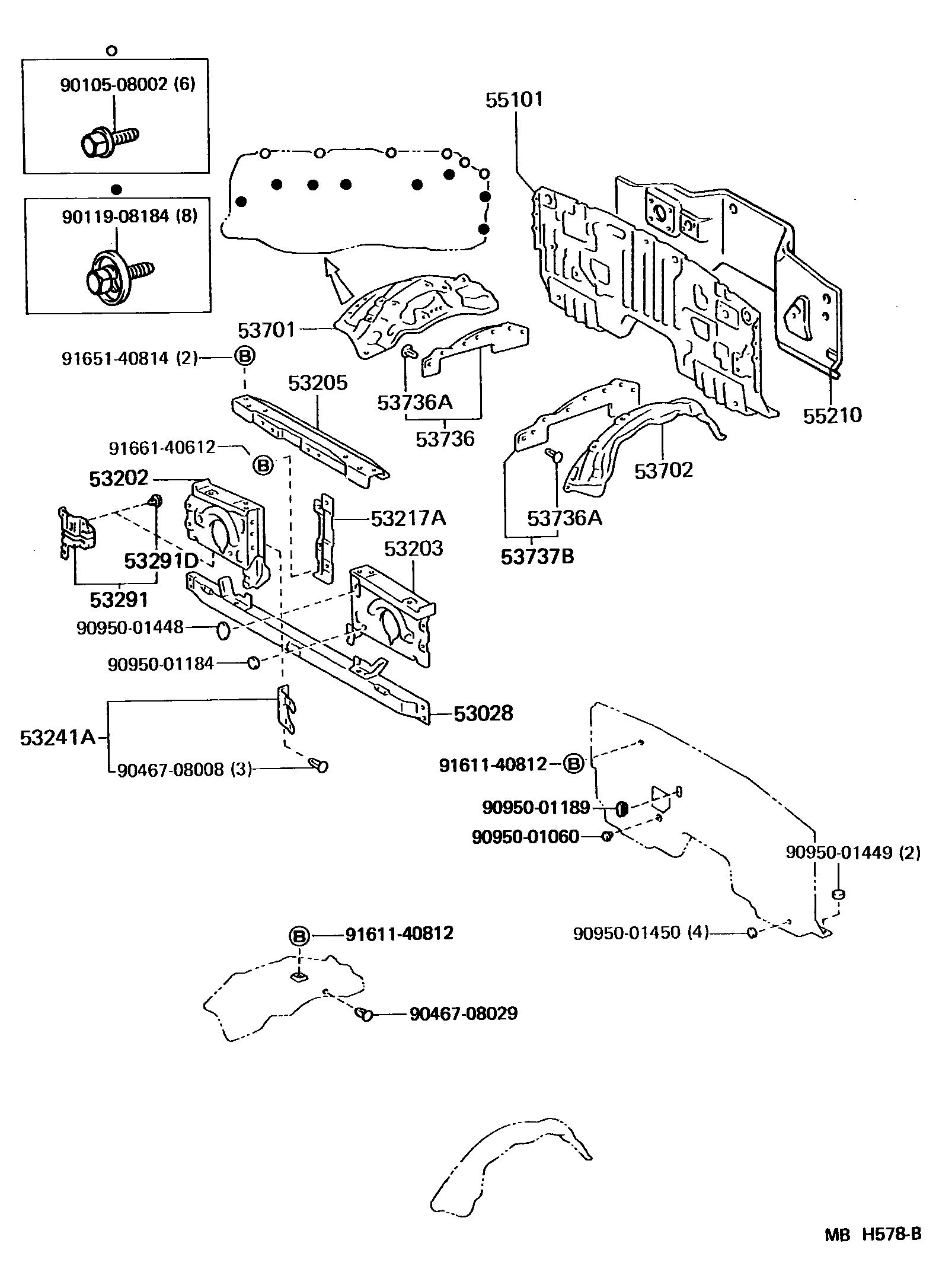

28 parts on this diagram · 1 diagram in section
