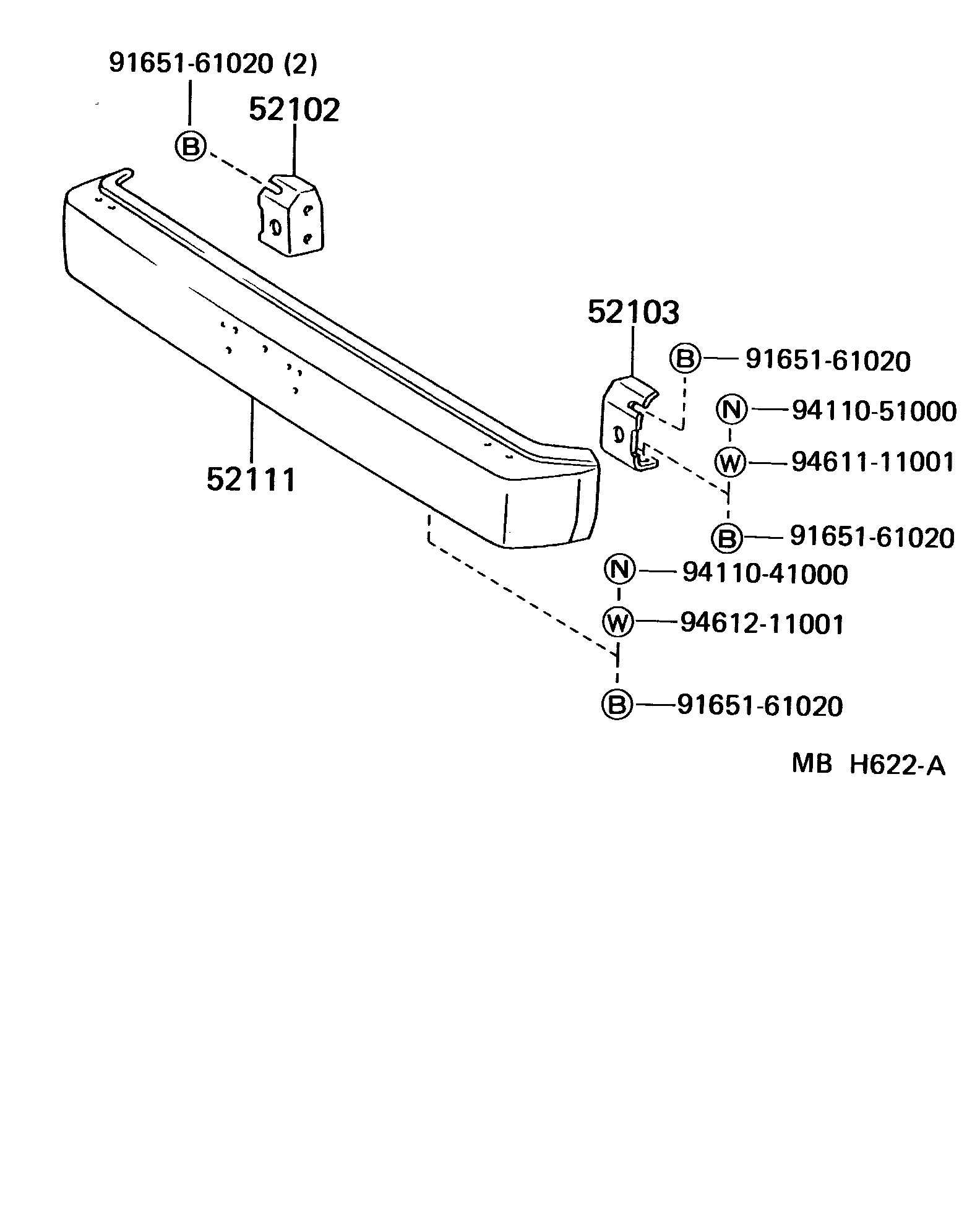

FRONT BUMPER & BUMPER STAY

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52116-60020iBJ70198411-198707

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52117-60010iBJ70198411-198707

52111BUMPER ASSY, FRONT

main52101-60010iBJ70198411-198707

main52101-60020iBJ70198411-198707

CHROME PLATING

9165161020

main91651-61020

9411041000

main94110-41000

9411051000

main94110-51000

9461111001

main94611-11001

9461211001

main94612-11001

8 parts on this diagram · 1 diagram in section
