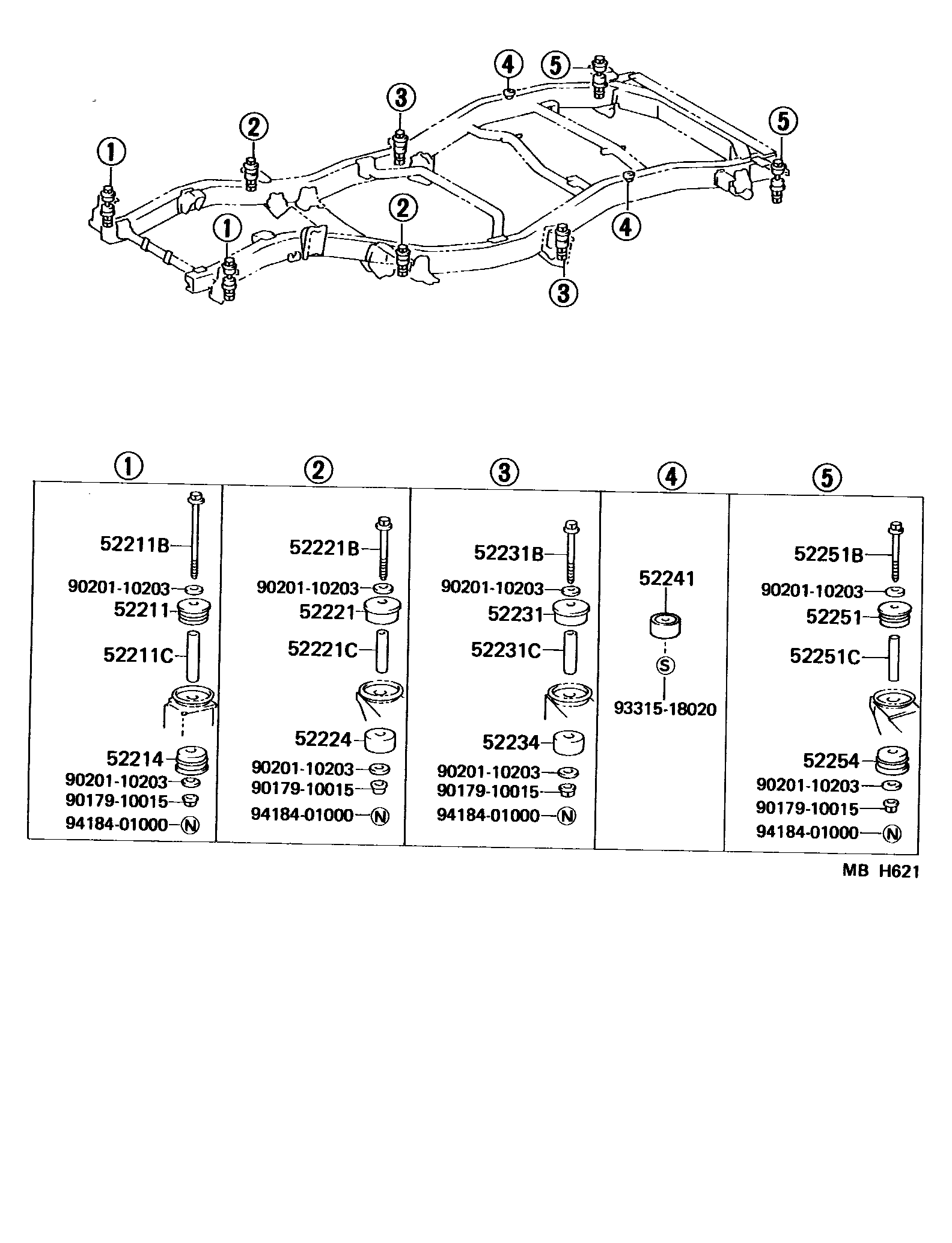

CAB MOUNTING & BODY MOUNTING
52211CUSHION, BODY MOUNTING, NO.1 UPPER
52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)
52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)
52214CUSHION, BODY MOUNT, NO.1 LOWER
52221CUSHION, BODY MOUNT, NO.2 UPPER
52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)
52221CSPACER(FOR BODY MOUNT NO.2 CUSHION)
52224CUSHION, BODY MOUNT, NO.2 LOWER
52231CUSHION, BODY MOUNT, NO.3 UPPER
52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)
52231CSPACER(FOR BODY MOUNT NO.3 CUSHION)
52234CUSHION, BODY MOUNT, NO.3 LOWER
52241CUSHION, BODY MOUNT, NO.4 UPPER
52251CUSHION, BODY MOUNT, NO.5 UPPER
52251BBOLT(FOR BODY MOUNT NO.5 CUSHION)
52251CSPACER(FOR BODY MOUNT NO.5 CUSHION)
52254CUSHION, BODY MOUNT, NO.5 LOWER
9017910015
main90179-10015
9020110203
main90201-10203
9331518020
main93315-18020
9418401000
main94184-01000
21 parts on this diagram · 1 diagram in section
