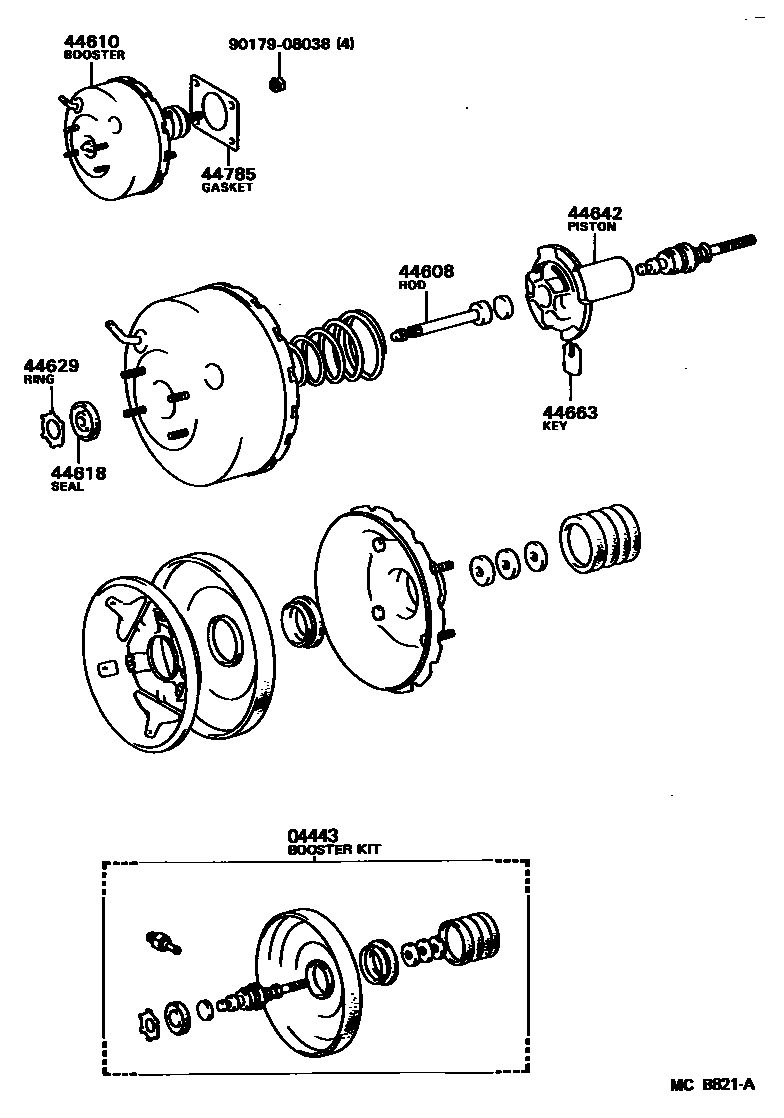

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

04443BOOSTER KIT, BRAKE

main04443-60200iBJ70198411-198510

main04443-60300iBJ70198510-198707

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iBJ70198411-198707

44610BOOSTER ASSY, BRAKE

main44610-60320iBJ70198411-198510

main44610-60460iBJ70198510-198707

44618SEAL, BOOSTER BODY

main44621-28120iBJ70198411-198707

44629RING, CIRCULAR INTERNAL

main44628-28120iBJ70198411-198707

44642PISTON, BRAKE BOOSTER

main44642-60280iBJ70198411-198510

main44642-60450iBJ70198510-198707

44663KEY, VALVE STOPPER

main44635-28120iBJ70198411-198707

44785GASKET, BRAKE BOOSTER

main44785-35020iBJ70198411-198707

9017908038

main90179-08038

9 parts on this diagram · 2 diagrams in section
