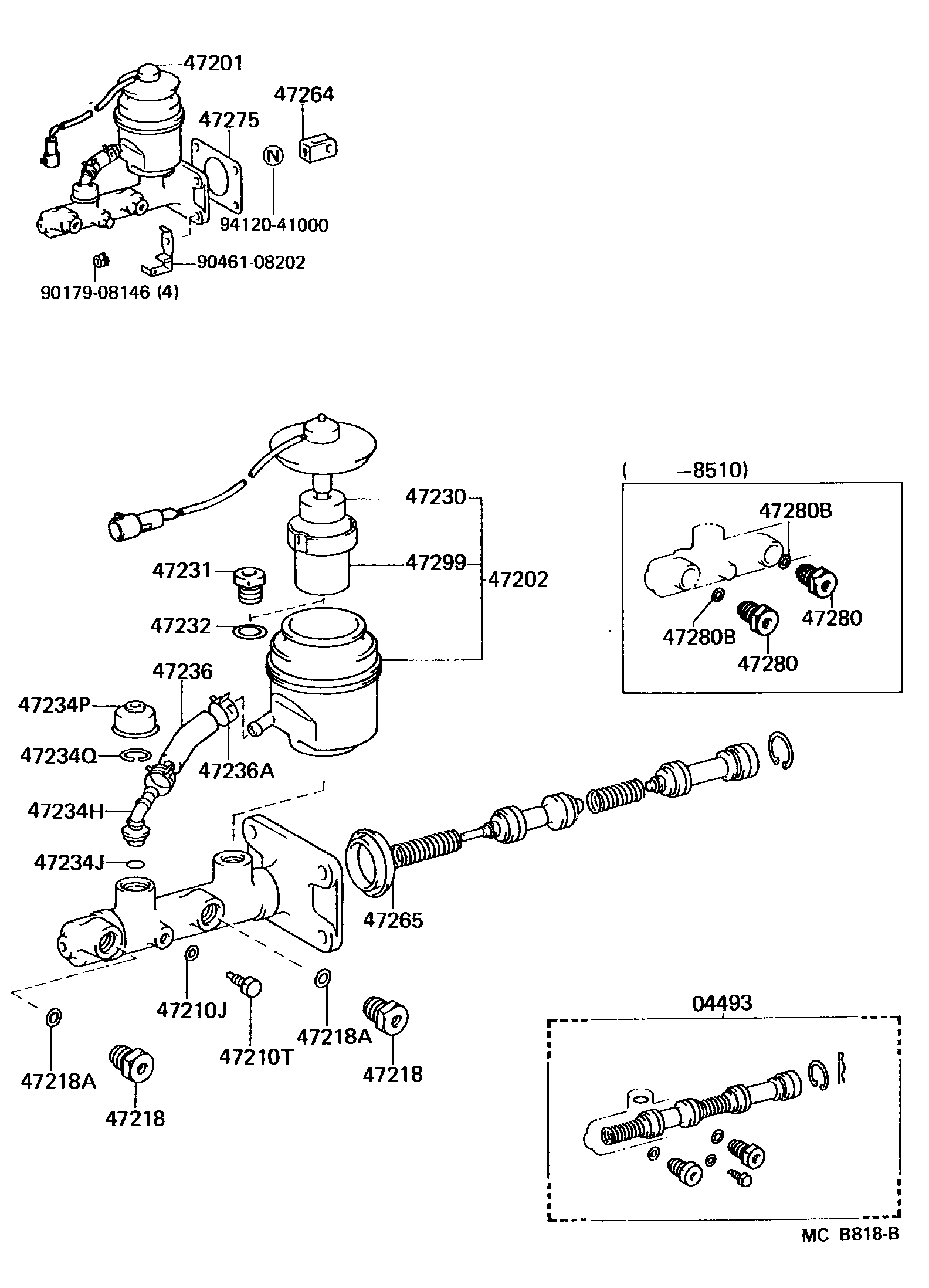

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-60090iBJ70198411-198707

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60220iBJ70198411-198707

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-60040iBJ70198411-198707

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBJ70198411-198707

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBJ70198411-198707

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-12040×2iBJ70198510-198707

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253×2iBJ70198510-198707

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-22010iBJ70198411-198707

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iBJ70198411-198707

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iBJ70198411-198707

47234HELBOW(FOR RESERVOIR TUBE)

main90407-10003iBJ70198411-198707

47234JRING, O(FOR RESERVOIR TUBE)

main90301-14001iBJ70198411-198707

47234PBOOT(FOR RESERVOIR TUBE)

main47265-20060iBJ70198411-198707

47234QRING, SNAP(FOR RESERVOIR TUBE)

main96151-02000iBJ70198411-198707

47236TUBE, RESERVOIR BRAKE

main47234-14010iBJ70198411-198707

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001×2iBJ70198411-198707

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iBJ70198411-198707

47265BOOT, MASTER CYLINDER

main47265-20050iBJ70198411-198707

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iBJ70198411-198707

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030×2iBJ70198411-198508

47280BGASKET(FOR BRAKE MASTER CYLINDER OUTLET VALVE)

main90430-09253×2iBJ70198411-198508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-14010iBJ70198411-198707

9017908146

main90179-08146

9046108202

main90461-08202

9412041000

main94120-41000

25 parts on this diagram · 1 diagram in section
