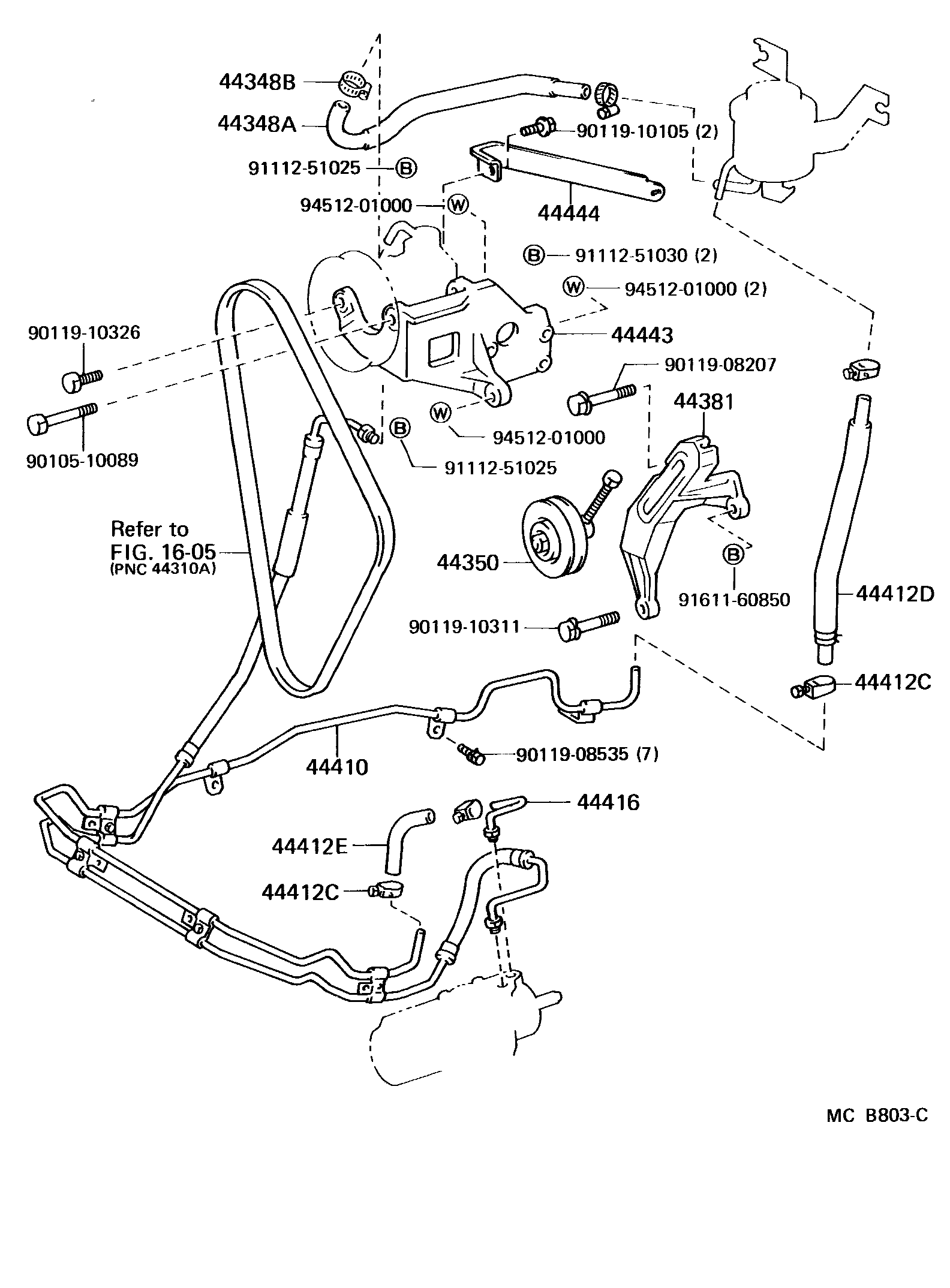

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60030iBJ70198411-198707

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×2iBJ70198411-198707

44350PULLEY ASSY, POWER STEERING IDLE

main44350-60010iBJ70198411-198707

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-60020iBJ70198411-198707

44410TUBE ASSY, PRESSURE FEED

main44410-60090iBJ70198411-198511

main44410-60091iBJ70198511-198707

44412CCLAMP(FOR RETURN HOSE)

main90460-01001×4iBJ70198411-198707

44412DHOSE, RETURN, NO.1

main44412-60030iBJ70198411-198707

44412EHOSE, RETURN, NO.2

main44412-60090iBJ70198411-198707

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60100iBJ70198411-198707

44443BRACKET, PUMP

main44443-60060iBJ70198411-198707

44444STAY, PUMP, REAR

main44444-60010iBJ70198411-198707

9010510089

main90105-10089

9011908207

main90119-08207

9011908535

main90119-08535

9011910105

main90119-10105

9011910311

main90119-10311

9011910326

main90119-10326

9111251025

main91112-51025

9111251030

main91112-51030

9161160850

main91611-60850

9451201000

main94512-01000

22 parts on this diagram · 1 diagram in section
